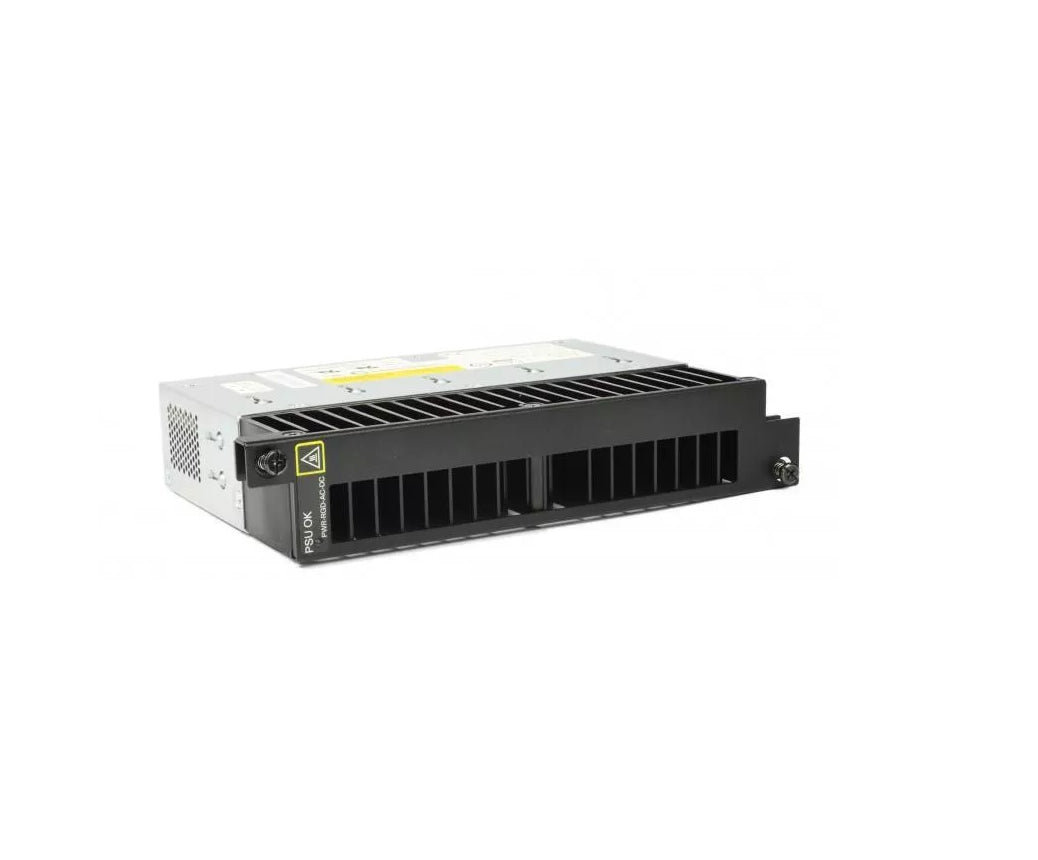

• Cisco PWR-RGD-AC-DC-H HazLoc-rated 150W rugged PSU with vented design
1 1

Cisco

Cisco PWR-RGD-AC-DC-H | IE 5000 150W HazLoc AC/DC Power Supply, 85-264VAC

PWR-RGD-AC-DC-H

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-RGD-AC-DC-H is a 150W hot-swappable rugged power supply module for Cisco Industrial Ethernet switches deployed in hazardous locations. It suits utilities, substations, and process or manufacturing sites where a hazardous-location rated power source is required to run PoE-capable rugged switches in harsh industrial conditions.

The module accepts high-voltage AC or DC input in a single unit. Nominal input is 100 to 240 VAC at 50 to 60 Hz, or 100 to 250 VDC, both at 2.0A, with an absolute maximum range of 85 to 264 VAC or 88 to 300 VDC. It is rated for hazardous locations and is intended for PoE power applications. The module weighs 1.15 kg and measures 4 x 17.8 x 12.7 cm without mounting flanges.

It works with the Cisco IE 4010 Series, the IE 5000 Hardened Aggregator and the Catalyst IE9300 Rugged Series. On the IE 4010 and IE 5000 it can be installed as a redundant pair, and a single module type is shared across all three platforms. On the IE 4010, one module provides up to 80W of PoE to powered devices and two modules provide up to 200W.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High-voltage AC or DC input in a single module
- Rated for hazardous-location deployments
- Supports PoE power applications on compatible switches
- Supports redundant dual power supply installation on IE 4010 and IE 5000 switches
- Hot-swappable rugged module
- Shared power supply module across IE 4010, IE 5000 and IE9300 platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Power supply rating: 150W
- Nominal input voltage: 100 to 240 VAC, 50 to 60 Hz
- Nominal DC input voltage: 100 to 250 VDC
- Nominal input current: 2.0A
- Absolute maximum AC input: 85 to 264 VAC, 47 to 63 Hz
- Absolute maximum DC input: 88 to 300 VDC
- Hazardous location rated: Yes
- Application: High-voltage AC or DC power source for hazardous-location PoE
- Weight: 1.15 kg (2.55 lb)
- Dimensions (H x W x D): 4 x 17.8 x 12.7 cm (1.58 x 7 x 5 in) without mounting flanges
- Dimensions with mounting flanges: 4 x 20.7 x 12.7 cm (1.58 x 8.15 x 5 in)
- IE 4010 maximum PoE: 80W with one module, 200W with two
- IE 5000 consumption, one module, no PoE ports on: 76W max
- IE 5000 consumption, one module, 4 PoE ports on: 148W max
- IE 5000 consumption, two modules, 12 PoE ports: 215W max for PoE alone

FAQs

Q: Which switches does this power supply work with?
A: It is used with the Cisco IE 4010 Series (IE-4010-4S24P, IE-4010-16S12P), the IE 5000 Hardened Aggregator and the Catalyst IE9300 Rugged Series, including the IE-9310-16P8S4X and IE9320 models.

Q: What input voltage does it accept?
A: Nominal input is 100 to 240 VAC at 50 to 60 Hz or 100 to 250 VDC. The absolute maximum range is 85 to 264 VAC or 88 to 300 VDC, so it suits both AC and high-voltage DC feeds.

Q: Can I run two modules for redundancy?
A: Yes. The IE 4010 and IE 5000 support dual power supply installation. On the IE 4010, a second module also raises the available PoE from 80W to 200W.

Q: How does it differ from the low-voltage DC option?
A: This module takes high-voltage AC or DC input. PWR-RGD-LOW-DC-H is the low-voltage 24 to 60 VDC alternative in the same family, and PWR-RGD-AC-DC-250 is the 250W high-voltage AC/DC version.
