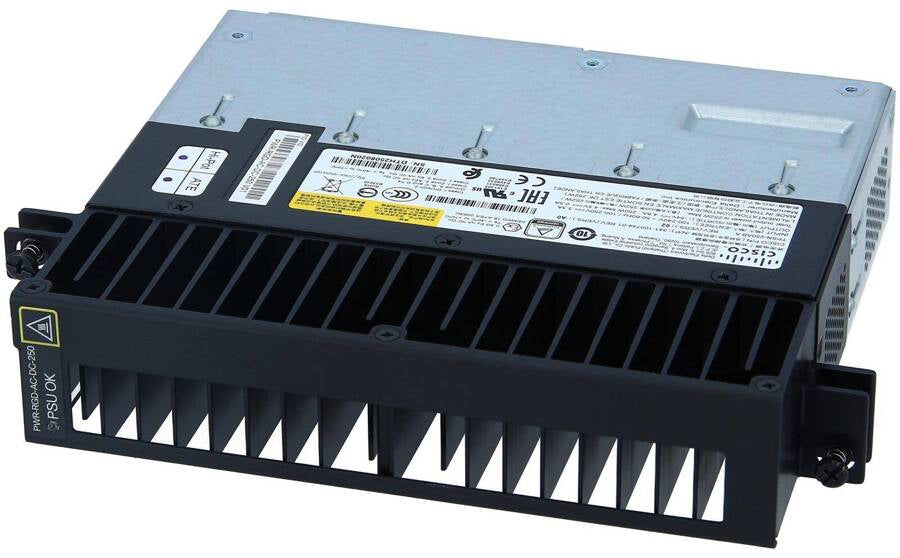

• Cisco PWR-RGD-AC-DC-250 rugged PSU 250W with heatsink
1 1

Cisco

Cisco PWR-RGD-AC-DC-250 | Industrial Ethernet Power Supply, 250W, AC/DC

PWR-RGD-AC-DC-250

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-RGD-AC-DC-250 is a 250W high-voltage AC/DC power supply module for rack-mount Cisco Industrial Ethernet switches, including the Catalyst IE9300 Rugged Series, IE 4010 and IE 5000. It suits industrial and hazardous-location deployments such as utilities, manufacturing and transport, where a switch needs a larger PoE/PoE+ budget than the 150W supply can provide.

The module accepts a rated input of AC 100-240V or DC 100-250V at 3.3A, with a supported range of AC 85-264V or DC 88-300V. The output is galvanically isolated from the input. On the Catalyst IE9300, one 250W supply gives a PoE budget of 260W on the IE-9310-16P8S4X or 280W on the IE-9320-24P4S, 24P4X and 16P8U4X. Two 250W supplies raise that to 350W and 370W respectively.

It is compliant for use in hazardous locations (Class I Div 2 and Zone 2). It can be paired with another 250W or 150W supply for redundancy or load sharing, but not with the 400W supply, and high-voltage and low-voltage supplies should not be mixed in the same switch. 4PPoE Type 4 (PoE Class 7 and 8) requires the 400W PWR-RGD-AC-DC-400.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Higher 250W output for larger PoE/PoE+ power budgets than the 150W PWR-RGD-AC-DC-H
- Universal high-voltage input, AC 100-240V or DC 100-250V
- Compliant for use in hazardous locations (Class I Div 2 and Zone 2)
- Galvanically isolated output
- Dual-PSU redundancy or load sharing with another 250W or 150W supply
- Suits Catalyst IE9300 Rugged, IE 4010 and IE 5000 switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output wattage: 250W
- Rated input: AC 100-240V, 3.3A, 50-60Hz or DC 100-250V, 3.3A
- Supported input range: AC 85-264V or DC 88-300V
- Input current (IE9300): 4.0A at 100VAC, 50-60Hz
- Output isolation: galvanically isolated from input
- Hazardous locations: UL 121201 / CSA 213 Class I Div 2 groups A-D
- Hazardous locations: UL/CSA/IEC/EN 60079-0, -7 Class I Zone 2 Gc/IIC
- PoE budget, one PSU: 260W (IE-9310-16P8S4X), 280W (IE-9320-24P4S, 24P4X, 16P8U4X)
- PoE budget, two PSUs: 350W (IE-9310-16P8S4X), 370W (IE-9320-24P4S, 24P4X, 16P8U4X)
- PoE support: PoE/PoE+ and 4PPoE Type 3 (PoE Class 1-6) on IE9300
- Switch operating temperature: -40 to 75 C (blower-equipped cabinet), -40 to 70 C (vented cabinet), -40 to 60 C (sealed cabinet)
- Storage temperature: -40 to 85 C
- Relative humidity: 5% to 95% noncondensing
- Operating altitude: up to 4572m with no derating, up to 12,192m with derating
- Weight: 3.1 lb (1.4 kg)

FAQs

Q: Does this power supply need a licence?
A: No. It is a hardware power supply module and needs no licence or subscription.

Q: Which switches does it work with?
A: It works with the Catalyst IE9300 Rugged Series (IE-9310-16P8S4X, IE-9320-24P4S, IE-9320-24P4X, IE-9320-16P8U4X), Cisco Industrial Ethernet 4010 and 5000 Series switches, and Catalyst IR8300 Rugged Series routers.

Q: How much PoE budget does it provide on the IE9300?
A: One 250W supply gives 260W of PoE on the IE-9310-16P8S4X or 280W on the IE-9320-24P4S, 24P4X and 16P8U4X. Two supplies give 350W and 370W respectively.

Q: Can I load-share it with the 400W power supply?
A: No. The 150W and 250W supplies cannot load-share with the 400W PWR-RGD-AC-DC-400. For 4PPoE Type 4 (PoE Class 7 and 8) the 400W supply is required.

Q: Can it be mixed with a low-voltage DC supply?
A: No. High-voltage AC/DC supplies should not be mixed with 24-60VDC low-voltage supplies in the same switch.
