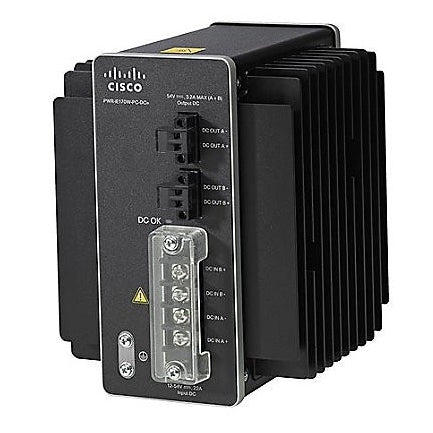

• Cisco PWR-IE170W-PC-DC industrial 170W DC-DC PSU with heatsinks and ports
1 1

Cisco

Cisco PWR-IE170W-PC-DC | 170W Low DC to DC Industrial DIN-Rail Power Supply, 54V

PWR-IE170W-PC-DC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco PWR-IE170W-PC-DC is a hardwired, DIN-rail 170W low-voltage DC-to-DC power supply that delivers 54VDC at 3.2A from a 10.8-60V DC input. It is designed to power Cisco Industrial Ethernet switches with PoE/PoE+ in harsh industrial environments, operating from -40°C to +75°C without derating. Approved for Class 1 Div 2/Zone 2 installations, it suits factory, utility and transport deployments where a low-voltage DC feed is available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-voltage DC input (10.8-60V) with 54V output for PoE/PoE+ switches
- Extended temperature operation (-40°C to +75°C) without derating
- Approved for Class 1, Div 2/Zone 2 hazardous location installations
- DIN-rail mountable, compact industrial design
- Built-in over voltage, over current, over temperature and short circuit protection
- Compatible with Cisco Industrial Ethernet switches such as the IE4000 series

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Max output power: 170W
- Output: 54VDC, 3.2A
- Nominal input: DC 12-54V/23A
- Supported input range: DC 10.8-60V
- Typical efficiency: 88%
- Inrush current: 17.3A @ 12VDC
- Holdup time: 9ms (@10.8VDC) to 25.9ms (@60VDC)
- Protections: over voltage, over current, over temperature, short circuit
- Operating temperature: -40°C to +75°C, no derating
- Storage temperature: -40°C to +85°C
- IP20; humidity <95% RH non-condensing
- Dimensions: 114 x 150 x 146 mm (4.48 x 5.90 x 5.74 in)
- Weight: 1.67 kg (3.68 lb)
- MTBF: 2,164,641 hours
- Connection: hardwired, DIN-rail mount
- PoE/PoE+ support: Yes

FAQs

Q: What input voltage does the PWR-IE170W-PC-DC accept?
A: It accepts a low-voltage DC input with a supported range of 10.8-60V DC and a nominal input of 12-54V DC at up to 23A.

Q: What is the output of this power supply?
A: It delivers 54VDC at 3.2A, for a maximum output power of 170W, suitable for powering PoE/PoE+ capable Cisco Industrial Ethernet switches.

Q: Can it operate in extreme temperatures?
A: Yes. It operates from -40°C to +75°C with no derating and is approved for Class 1 Div 2/Zone 2 hazardous location installations.

Q: How is it installed?
A: It is a hardwired unit that mounts on a standard DIN rail. It has an IP20 rating, so it should be installed within a suitable enclosure or cabinet.

Q: How does it differ from other IE family power supplies?
A: This 170W model is the low-voltage DC-to-DC variant, taking a 10.8-60V DC input and producing 54VDC. Other IE family units use different input types, such as AC or high-voltage DC, and different power ratings.
