Cisco

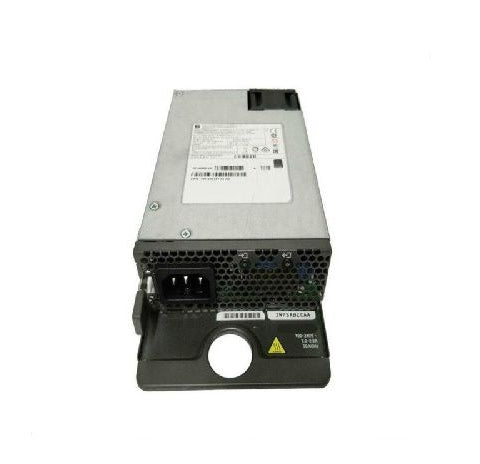

Cisco PWR-C6-600WAC/2 | Catalyst 9200 600W AC Secondary Power Supply

SKU:PWR-C6-600WAC/2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 600W AC Config 6 power supply is the optional second, or secondary, unit for Cisco Catalyst 9200 Series PoE+ switches. It is a hot-swappable, field-replaceable plug-in module, so it can be fitted alongside the primary supply to add redundancy or to lift the available PoE budget without replacing the switch.

The supply is rated at 600W with an auto-ranging universal AC input of 100 to 240 VAC at 50-60 Hz. In a C9200-24P, a single 600W Config 6 supply provides 370W of PoE, and adding a second raises the available PoE power to 740W. This makes the secondary unit a practical way to support more powered devices such as access points, IP phones and cameras on an access-layer switch.

It suits the Catalyst 9200 PoE+ models that use the 600W Config 6 supply, including the C9200-24P, C9200-24PB, C9200-24PXG and C9200-48PL. The second identical supply can be installed at deployment or added later as power demands grow.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable, hot-swappable power supply module
- Second identical supply can be fitted at deployment or added later
- Provides 1+1 power redundancy for the switch
- Raises the PoE+ budget when two supplies are installed
- Auto-ranging universal AC input suits deployments worldwide

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: PWR-C6-600WAC/2
- Description: 600W AC Config 6 Power Supply, Secondary Power Supply
- Power capacity: 600W AC
- Input voltage: 100 to 240 VAC, auto-ranging
- Input frequency: 50-60 Hz
- Form factor: Plug-in, field-replaceable module
- Hot-swap: Yes
- Role: Optional secondary power supply
- PoE power with one supply (C9200-24P): 370W
- PoE power with two supplies (C9200-24P): 740W
- Compatible models: C9200-24P, C9200-24PB, C9200-24PXG, C9200-48PL

FAQs

Q: Which switches does the PWR-C6-600WAC/2 power?
A: It is a Config 6 supply for Catalyst 9200 Series PoE+ models that use the 600W module, including the C9200-24P, C9200-24PB, C9200-24PXG and C9200-48PL.

Q: How much PoE does a second supply add?
A: On a C9200-24P, one 600W Config 6 supply provides 370W of PoE. Fitting a second supply raises the available PoE power to 740W.

Q: What AC input does it accept?
A: It has an auto-ranging input of 100 to 240 VAC at 50-60 Hz, so it works on standard mains supplies without any voltage setting.

Q: Can it be installed while the switch is running?
A: Yes. The module is hot-swappable and field-replaceable, which allows it to be added or replaced without taking the switch out of service.

Q: What is the difference between this and the primary supply?
A: This is the secondary unit, supplied as the second power supply for redundancy or extra PoE budget alongside the primary supply in the same switch.
