Cisco

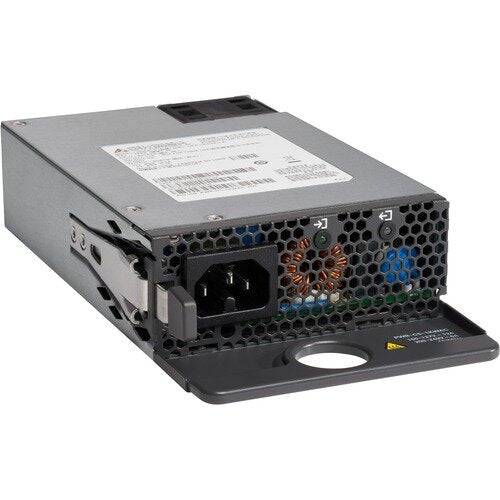

Cisco PWR-C6-1KWAC | Catalyst 9200 1000W AC Config 6 Power Supply

SKU:PWR-C6-1KWAC

$1,978.90 inc. GST
$1,799.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 1000 W AC Config 6 power supply module for the Catalyst 9200 and Catalyst 9300LM ranges. It suits enterprise campus and branch access switches that supply full PoE+ to 48 ports, powering IP phones, wireless access points and cameras. The module is hot-swappable and field-replaceable, so a failed or spare unit can be changed without taking the switch out of service.

It accepts autoranging 100-240 VAC input at 50-60 Hz and delivers 54 V DC output at up to 1000 W. On C9200-48P, C9200-48PB and C9200-48PXG switches, one module provides 740 W of available PoE power and two modules provide 1440 W. On the Catalyst 9300LM-24U-4Y, one module provides 820 W, and on the C9300LM-48U-4Y and C9300LM-48UX-4Y it provides 790 W. The module measures 40.1 x 101.6 x 193 mm and weighs 0.9 kg.

Config 6 supplies are for the Catalyst 9200 modular-uplink 48-port PoE+ models and the Catalyst 9300LM models. They are not interchangeable with the Config 5 supply (PWR-C5-1KWAC) used in the C9200L series. When two modules are fitted in one chassis they must be the same type.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power supply module
- Autoranging AC input for use on 100-240 VAC supplies
- Platinum-certified efficiency in the Catalyst 9300LM
- Supports 1+1 redundancy or power sharing to increase the available PoE budget
- Delivers 54 V DC output for PoE-capable switch chassis
- Active and redundant modules must be the same type
- Secondary ordering variant available as PWR-C6-1KWAC/2

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Maximum output power: 1000 W
- Input voltage and frequency: 100 to 240 VAC (autoranging), 50-60 Hz
- Input current: 12-6 A
- Output voltage: 54 V DC
- Output rating: 54 V @ 16.5 A (Catalyst 9200), 54 V @ 18.5 A (Catalyst 9300LM)
- Total output heat: 3412 BTUs per hour (1000 W)
- Total input heat: 3876 BTUs per hour (Catalyst 9300LM)
- Form factor: hot-swappable, field-replaceable (FRU) module
- Dimensions (H x D x W): 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in), including extraction handle
- Weight: 0.9 kg (2 lb)
- Efficiency rating: Platinum-certified (Catalyst 9300LM)
- Available PoE power on C9200-48P, C9200-48PB, C9200-48PXG: 740 W with one module, 1440 W with two modules
- Available PoE power on C9300LM-48UX-4Y and C9300LM-48U-4Y: 790 W with one module
- Available PoE power on C9300LM-24U-4Y: 820 W with one module
- MTBF: 1,600,060 hours

Also Known As

PWR-C6-1KWAC=, PWR-C6-1KWAC/2, PWR-C6-1KWAC-RF

FAQs

Q: Which switches use the PWR-C6-1KWAC?
A: It fits the Catalyst 9200 modular-uplink 48-port PoE+ models (C9200-48P, C9200-48PB, C9200-48PXG) and the Catalyst 9300LM models (C9300LM-24U-4Y, C9300LM-48U-4Y, C9300LM-48UX-4Y).

Q: Can I use it in a Catalyst 9200L switch?
A: No. Catalyst 9200L switches use the Config 5 supply (PWR-C5-1KWAC). Config 6 and Config 5 power supplies are not interchangeable.

Q: How much PoE power does it provide?
A: On a C9200-48P, C9200-48PB or C9200-48PXG, one module provides 740 W of available PoE power and two modules provide 1440 W. On the Catalyst 9300LM-24U-4Y, one module provides 820 W, and on the C9300LM-48U-4Y and C9300LM-48UX-4Y it provides 790 W.

Q: Can I fit two power supplies in one switch?
A: Yes. Two modules can be fitted for 1+1 redundancy or to share load and raise the available PoE budget. Both modules in the chassis must be the same type.

Q: What AC input does it need?
A: It accepts autoranging 100-240 VAC at 50-60 Hz with an input current of 12-6 A, so it works on standard supplies worldwide.
