Cisco

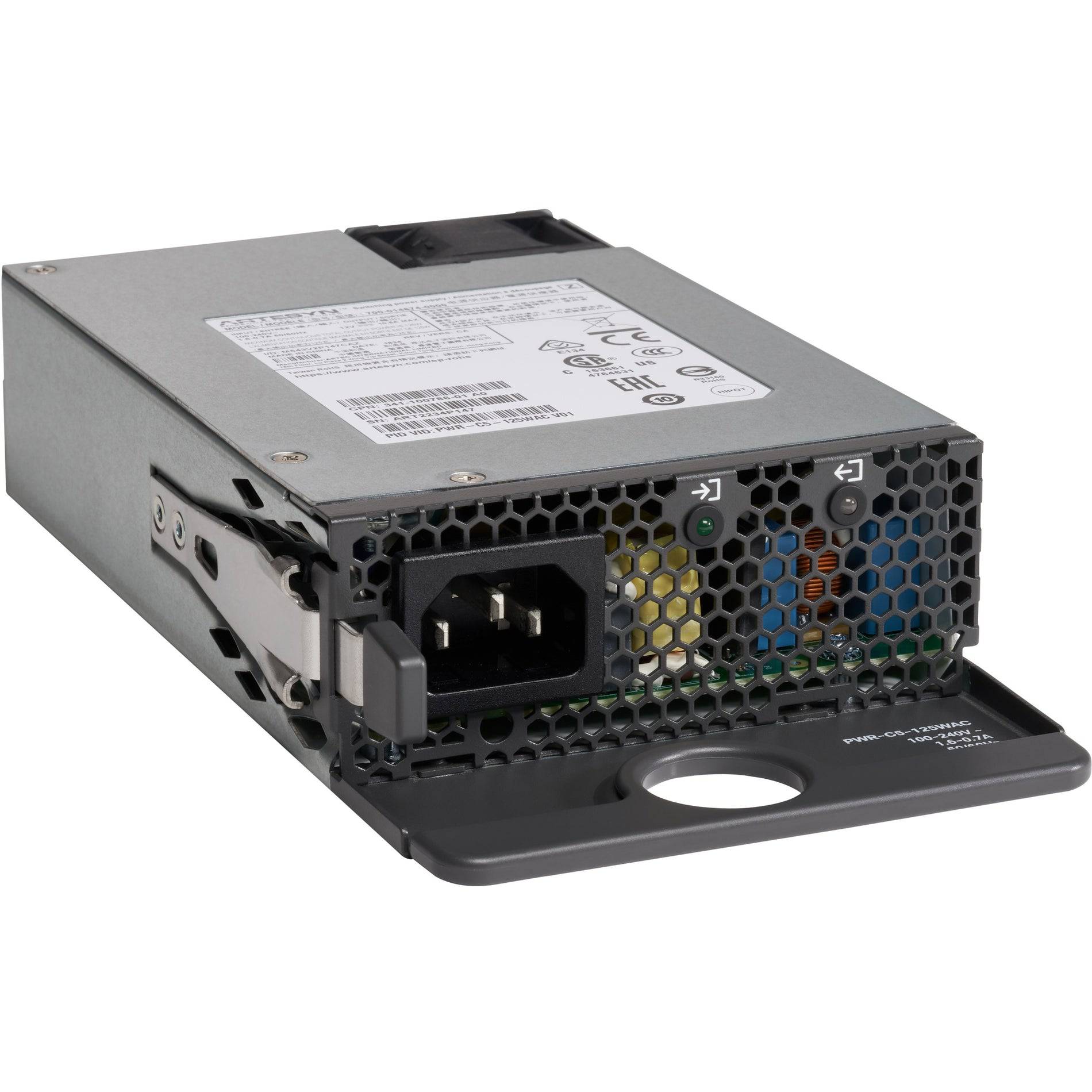

Cisco PWR-C6-125WAC | Catalyst 9200 125W AC Power Supply, 12V, Config 6

SKU:PWR-C6-125WAC

$891.00 inc. GST
$810.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C6-125WAC is a hot-swappable 125 W AC power supply for the Catalyst 9200 Series. It is the default power supply on the data-only C9200-24T and C9200-48T switches, and suits enterprise campus and branch access-layer deployments where a primary, spare or secondary AC supply is needed.

This Config 6 (C6) supply accepts 100 to 240 VAC autoranging input at 50-60 Hz, drawing 1.6 to 0.7 A. It delivers 12 V at 10.5 A, for a maximum output of 125 W (426.5 BTU per hour). It provides system power only, with no PoE budget. The unit weighs 0.68 kg and measures 40.1 x 101.6 x 193 mm including the extraction handle and keying feature.

It is supported on Cisco IOS XE from Gibraltar 16.11.1 and is functionally identical to the PWR-C5-125WAC, so the two can be used interchangeably on the C9200-24T and C9200-48T. PoE models use the 600 W or 1000 W supplies instead.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power supply for Catalyst 9200 switches
- Autoranging AC input from 100 to 240 VAC
- Default primary power supply on C9200-24T and C9200-48T data models
- Suitable as a spare or secondary power supply
- Functionally identical to PWR-C5-125WAC and interchangeable on supported models
- Supported from Cisco IOS XE Gibraltar 16.11.1

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Maximum output power: 125 W
- Output rating: 12 V at 10.5 A
- Input voltage and frequency: 100 to 240 VAC (autoranging), 50-60 Hz
- Input current: 1.6 to 0.7 A
- Total output heat: 426.5 BTU per hour at 125 W
- Form: hot-swappable field replaceable unit (FRU)
- Variant: Config 6 (C6)
- Weight: 0.68 kg (1.5 lb)
- Dimensions (H x D x W): 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in.), including extraction handle and keying feature
- Operating temperature: -5 to 45 C up to 1500 m; -5 to 40 C up to 3000 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% (non-condensing)
- Altitude: up to 3,000 m (10,000 ft) at up to 45 C
- MTBF: 3,332,120 hours
- Minimum software: Cisco IOS XE Gibraltar 16.11.1

Also Known As

PWR-C6-125WAC=, PWR-C6-125WAC/2, PWR-C6-125WAC-RF

FAQs

Q: Which Catalyst 9200 switches does this power supply fit?
A: It is the default supply for the data-only C9200-24T and C9200-48T models. It is not intended for the PoE models, which use the 600 W or 1000 W supplies (PWR-C6-600WAC and PWR-C6-1KWAC).

Q: Does this power supply provide PoE power?
A: No. It delivers 125 W of system power at 12 V only and has no PoE budget. PoE switches need a higher-capacity supply.

Q: Is it interchangeable with the PWR-C5-125WAC?
A: Yes. The Config 6 and Config 5 125 W AC supplies are functionally identical and can be used interchangeably on the C9200-24T and C9200-48T.

Q: Can it be replaced while the switch is running?
A: Yes. It is a hot-swappable field-replaceable unit, so it can be replaced without powering the switch down, provided the switch has a second supply fitted to maintain power.

Q: What software version is required?
A: The power supply is supported from Cisco IOS XE Gibraltar 16.11.1 onwards.

Q: Does it require a licence?
A: No. The power supply itself does not require a licence.
