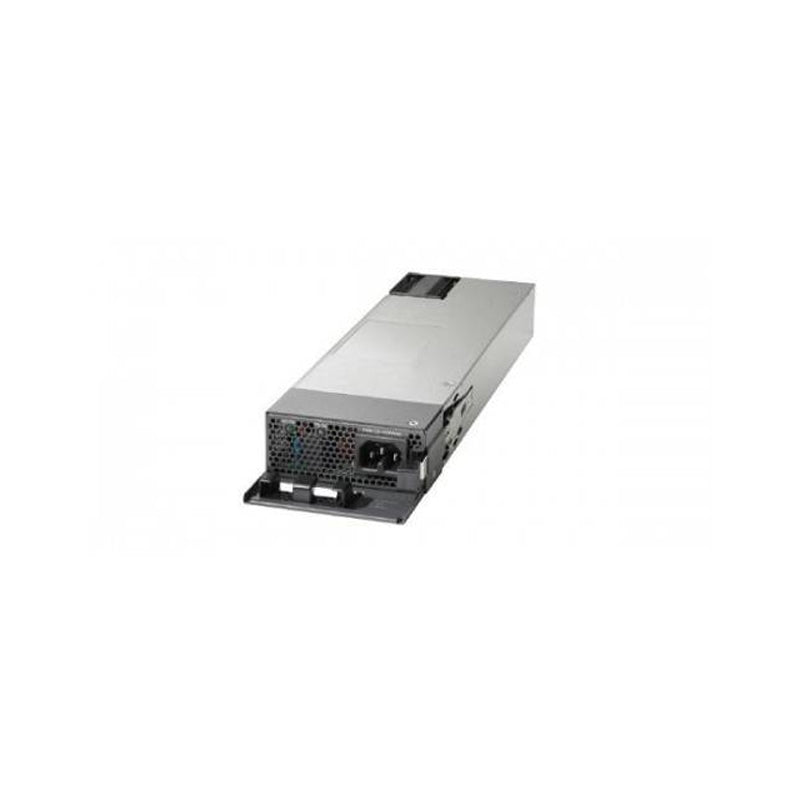

Cisco PWR-C5-1KWAC/2 | Catalyst 9200L 1000W AC Config 5 Secondary Power Supply
SKU:PWR-C5-1KWAC/2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

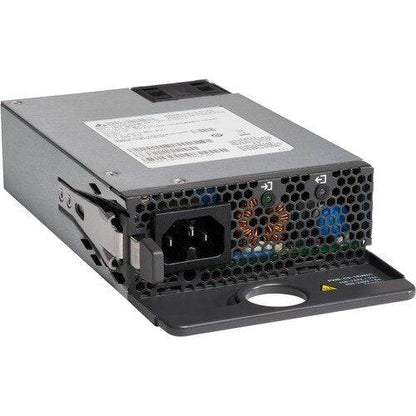

The PWR-C5-1KWAC/2 is a 1000W AC Config 5 power supply for the Catalyst 9200L series. This /2 SKU is the secondary power supply, fitted alongside the primary supply to add redundancy or extra PoE+ budget in enterprise campus and branch access layers powering IP phones, wireless access points and other PoE+ endpoints.
The supply accepts 100 to 240 VAC at 50 to 60 Hz through an IEC 320-C16 inlet with a 15A cord rating, and delivers 54V at 16.5A. On supported 48-port Catalyst 9200L models, a single PWR-C5-1KWAC provides a 740W PoE budget, and installing two supplies raises that to 1440W. Front-panel AC OK and PS OK LEDs show input and output status at a glance.
It is intended for Catalyst 9200L Config 5 models including the C9200L-48P-4G, C9200L-48P-4X, C9200L-48PXG-4X and C9200L-48PXG-2Y. It is not interchangeable with the Config 6 supplies used in the C9200 modular-uplink models, and it can be paired with the PWR-C5-715WDC= DC supply as primary and secondary. No licence is required for the power supply itself.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Field-replaceable power supply for Catalyst 9200L switches
- Secondary supply provides redundancy or additional PoE+ power
- Two PWR-C5-1KWAC supplies lift the PoE+ budget on supported 48-port models from 740W to 1440W
- Front-panel AC OK and PS OK status LEDs
- Wide-range 100 to 240 VAC input for global power environments
- Can be mixed with the PWR-C5-715WDC= DC supply as primary and secondary
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Rated output: 1000W
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Input current: 12-6A
- Output: 54V at 16.5A
- Input receptacle: IEC 320-C16 (IEC60320-C16)
- Power cord rating: 15A
- Total output BTU: 3412 BTU/hr at 1000W
- Output holdup time: 20 ms minimum at 100 VAC
- Dimensions (H x W x D): 1.58 x 4.0 x 7.6 in
- Weight: 2 lb (0.9 kg)
- Operating temperature: -5 to 45 C up to 5000 ft (1500 m); -5 to 40 C up to 10,000 ft (3000 m)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5% to 90% non-condensing
- LED indicators: AC OK, PS OK
- MTBF: 1,600,060 hours
- EMC compliance: FCC Part 15 Class A, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, AS/NZS 3548 Class A, CISPR 35, EN 55035
- Safety compliance: UL 60950-1/62368-1, CAN/CSA-C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, IEC 60950-1/62368-1, CCC, CE Marking
- Supported product family: Catalyst 9200L (PWR-C5 variant)
FAQs
Q: Which switches does this power supply fit?
A: It fits Catalyst 9200L Config 5 models that use the 1KW supply: C9200L-48P-4G, C9200L-48P-4X, C9200L-48PXG-4X and C9200L-48PXG-2Y.
Q: Is this the same as the Config 6 power supply?
A: No. Config 5 (PWR-C5) supplies are not interchangeable with the Config 6 (PWR-C6) supplies used in the C9200 modular-uplink models.
Q: How much PoE budget does a second supply add?
A: On supported 48-port Catalyst 9200L models, a single PWR-C5-1KWAC provides a 740W PoE budget. With two supplies installed the available PoE+ budget rises to 1440W.
Q: Does this power supply need a licence?
A: No licence is required for the power supply itself. The host Catalyst 9200L switch runs on its own Cisco DNA Essentials or Advantage subscription.
Q: What does the /2 in the part number mean?
A: The /2 denotes the secondary (second) power supply, installed alongside the primary supply for redundancy or additional PoE+ power.
Q: Can it be paired with a DC supply?
A: Yes. On the Catalyst 9200L it can be mixed with the PWR-C5-715WDC= DC supply as primary and secondary.
