Cisco PWR-C5-125WAC/2 | Catalyst 9200L 125W AC Config 5 Secondary Power Supply
SKU:PWR-C5-125WAC/2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

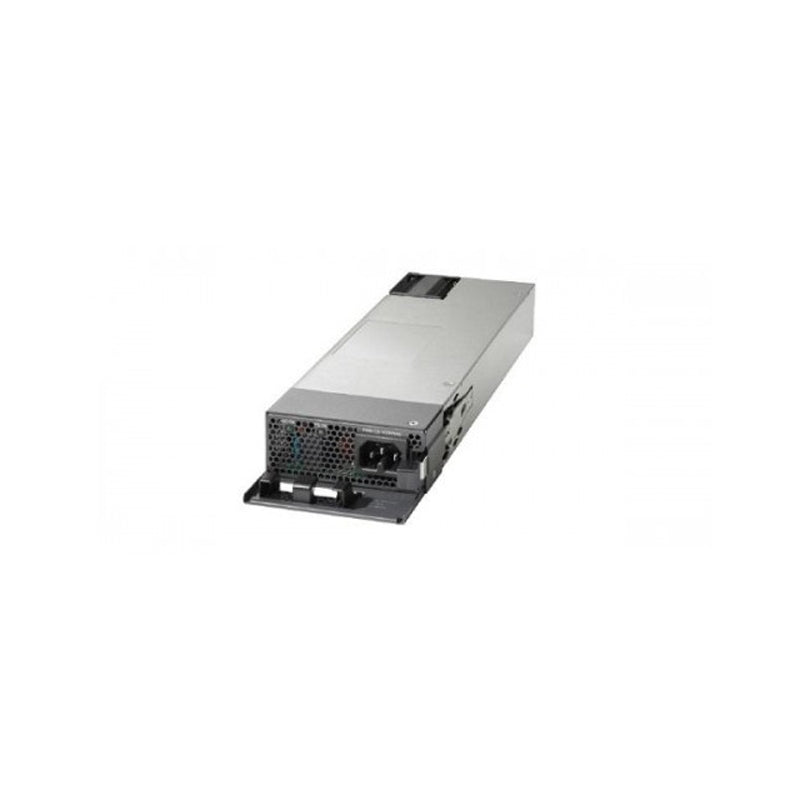

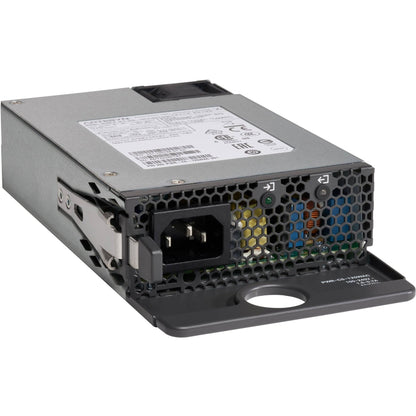

The PWR-C5-125WAC/2 is a 125 W AC-input Config 5 power supply module for Catalyst 9200L fixed-uplink switches. This SKU is the secondary power supply, used to add power redundancy to the primary PWR-C5-125WAC in PoE+ access-layer switches in campus and branch wiring closets.
The module has an auto-ranging 100 to 240 VAC input at 50-60 Hz, drawing 1.6-0.7 A, and delivers 125 W maximum output at 12 V and 10.5 A. Total heat output is 426.5 BTU per hour. It weighs 0.68 kg and measures 40.1 x 101.6 x 193 mm including the extraction handle and keying feature. No licence is required for the power supply itself.
It is intended for the Catalyst 9200L models C9200L-24P-4G, C9200L-48P-4G, C9200L-24P-4X and C9200L-48P-4X, which use fixed redundant power. It is not interchangeable with the PWR-C6-125WAC Config 6 module used in modular-uplink Catalyst 9200 models.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Provides a second, redundant power supply for supported Catalyst 9200L switches
- Auto-ranging AC input for 100 to 240 VAC, 50-60 Hz
- Supplies 12 V at 10.5 A for 125 W maximum output
- Ordered as the secondary unit alongside the primary PWR-C5-125WAC
- Field-replaceable power supply module
- Keyed design with extraction handle for installation and removal
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum output power: 125 W
- Input voltage: 100 to 240 VAC, auto-ranging
- Input frequency: 50-60 Hz
- Input current: 1.6-0.7 A
- Output rating: 12 V at 10.5 A
- Total output heat: 426.5 BTU per hour
- Power supply type: Config 5 (PWR-C5)
- Role: Secondary power supply for redundancy
- Redundancy type on host switches: Fixed redundant
- Weight: 0.68 kg (1.5 lb)
- Dimensions (H x D x W): 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in), including extraction handle and keying feature
FAQs
Q: Which switches is the PWR-C5-125WAC/2 designed for?
A: It is designed for Catalyst 9200L fixed-uplink models with fixed redundant power: C9200L-24P-4G, C9200L-48P-4G, C9200L-24P-4X and C9200L-48P-4X.
Q: Is this the same as the PWR-C6-125WAC?
A: No. The PWR-C5 is the Config 5 module for Catalyst 9200L switches. The PWR-C6-125WAC is a Config 6 module for modular-uplink Catalyst 9200 models, and the two are not interchangeable.
Q: What does the /2 in the part number mean?
A: The /2 denotes the secondary power supply. It is the unit ordered to add redundancy alongside the primary PWR-C5-125WAC.
Q: Does it need a licence?
A: No. No licence is required for the power supply itself.
Q: What input power does it accept?
A: It accepts 100 to 240 VAC auto-ranging input at 50-60 Hz, drawing 1.6-0.7 A, and delivers 12 V at 10.5 A for 125 W maximum output.
