Cisco

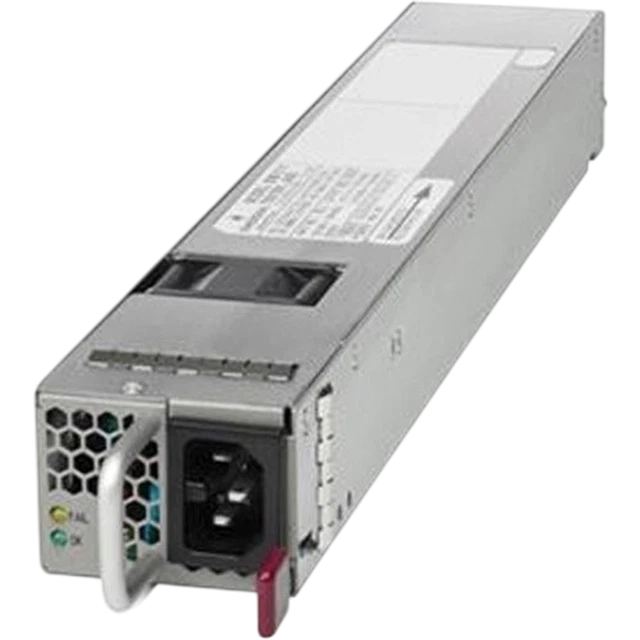

Cisco PWR-C4KX-750AC-R | Catalyst 4500-X 750W AC Power Supply, Front-to-Back

SKU:PWR-C4KX-750AC-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a hot-swappable 750W AC-input power supply for the Cisco Catalyst 4500-X fixed 10 Gigabit Ethernet aggregation switch. It is the front-to-back airflow version, identified by its burgundy release lever, and is intended for campus and data-centre aggregation and access racks that use warm-side-out cooling.

The supply delivers 750W of output capacity, made up of 12 VDC at 62 A and 3.3 VDC at 3 A. Input is autoranging 100 to 240 VAC at 47 to 63 Hz with power factor correction, drawing a maximum of 11 A at 100 VAC or 6 A at 200 VAC. Output holdup time is a minimum of 16 ms. It connects through an IEC 60320 C15 power cord receptacle, and each supply needs its own dedicated fused branch circuit.

Use the front-to-back -R supply only with front-to-back airflow chassis and fans. The back-to-front version is C4KX-PWR-750AC-F, the related DC option is C4KX-PWR-750DC-F, and the blank cover for an empty bay is C4KX-PWR-BLANK=. The Australian power cord is CAB-AS3112-C15-AU=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Front-to-back airflow version of the 750W AC supply, matching the front-to-back fan tray (warm side)
- Autoranging AC input with power factor correction
- Supports redundant power supply operation, with fully isolated AC inputs that can be on different phases
- Front-panel OK (green) and FAIL (amber) LEDs for status at a glance
- Built-in fan with a directional airflow arrow on top
- Hot-swappable, with blank cover C4KX-PWR-BLANK= available for an empty bay
- AC power cord retaining strap (velcro) and retention clip

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Output capacity: 750W
- Output: 12 VDC @ 62 A; 3.3 VDC @ 3 A
- Airflow: Front-to-back (burgundy release lever)
- AC-input type: Autoranging with power factor correction (PFC)
- AC-input voltage: 100 to 240 VAC (115/230 VAC nominal), single-phase
- AC-input current: 11 A max @ 100 VAC; 6 A max @ 200 VAC
- AC-input frequency: 47 to 63 Hz (50/60 Hz nominal)
- Branch circuit requirement: Dedicated fused branch circuit per power supply; 15 A for North America, sized to local and national codes internationally
- Output holdup time: 16 ms minimum (20 ms @ 60% load)
- Heat output: 1122 BTU/hour nominal; 1365 BTU/hour max
- Power cord receptacle: IEC 60320 C15
- LED indicators: FAIL (amber), OK (green)
- Dimensions (H x W x D): 3.99 x 5.46 x 36.27 cm (1.57 x 2.15 x 14.28 in)
- Weight: 0.91 kg (2 lb)

FAQs

Q: Which airflow direction does this power supply use?
A: It is the front-to-back version, identified by the burgundy release lever. Use it only with front-to-back airflow chassis and fans. The back-to-front version is C4KX-PWR-750AC-F.

Q: Which switches is it compatible with?
A: It is designed for the Catalyst 4500-X Series fixed 10 Gigabit Ethernet aggregation switches, in racks that use front-to-back (warm-side-out) cooling.

Q: What input power does it need?
A: It accepts 100 to 240 VAC at 47 to 63 Hz, drawing up to 11 A at 100 VAC or 6 A at 200 VAC. Each supply requires its own dedicated fused branch circuit.

Q: Which power cord does it use in Australia?
A: The supply has an IEC 60320 C15 receptacle, and the Australian power cord is CAB-AS3112-C15-AU=.

Q: Can it be used for redundant power?
A: Yes. It supports redundant power supply operation, and its fully isolated AC inputs can be connected to different phases. Fit blank cover C4KX-PWR-BLANK= to any empty bay.
