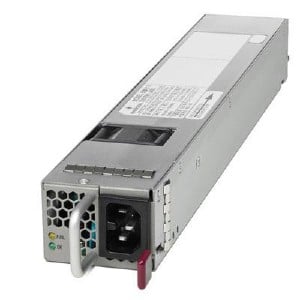

Cisco PWR-C4KX-750AC-F | Catalyst 4500-X 750W AC Power Supply, Back-to-Front
SKU:PWR-C4KX-750AC-F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a hot-swappable, field-replaceable 750W AC power supply for the Catalyst 4500-X fixed 10 Gigabit Ethernet aggregation switch. It suits primary or redundant power in aggregation and top-of-rack or campus distribution deployments where the rack uses back-to-front, port-side exhaust airflow.
The module accepts 100 to 240 VAC at 50-60 Hz through an IEC 60320 C15 inlet and delivers 12V at 62A plus 3.3V at 3A. A Catalyst 4500-X system draws 330W nominal and 400W maximum, and the chassis supports two power supply bays for redundant operation. Output holdup time is 16 ms at maximum load, and the module is marked with its airflow direction.
The airflow direction must match the chassis fan assemblies. Pair this back-to-front unit with a back-to-front chassis and fan module such as the C4KX-FAN-F. The front-to-back equivalent is the C4KX-PWR-750AC-R, and DC versions are the C4KX-PWR-750DC-F and C4KX-PWR-750DC-R. No licence or subscription is needed for the power supply itself.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Field-replaceable, hot-swappable (OIR) power supply module
- Dual power supply bay support for redundant operation with no single point of failure
- Built-in fan with airflow direction marked on the module
- Airflow must match the chassis fan assemblies, otherwise the system shuts down the power supply and logs an error
- Green OK and amber FAIL LEDs for quick status checks
- Unused power supply bay is covered with blank cover C4KX-PWR-BLANK=
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power rating: 750W AC maximum
- Airflow: Back-to-front cooling
- Input voltage: 100 to 240 VAC, 50-60 Hz
- Input current: 11A at 110VAC, 6A at 200VAC
- Output: 12V at 62A and 3.3V at 3A
- AC inlet: IEC 60320 C15
- Power cord rating: 15A AC
- Output holdup time: 16 ms at maximum load
- System power consumption: 330W nominal, 400W maximum
- Total output BTU: 1122 BTU/hr nominal, 1365 BTU/hr maximum
- MTBF: 1,045,265 hours
- Dimensions (H x W x D): 3.99 x 5.46 x 36.27 cm
- Weight: 0.91 kg
- Chassis operating temperature: 0 to 40 C
- Chassis storage temperature: -40 to 70 C
- Chassis operating altitude: 60 m below to 3000 m above sea level
- Status indicators: OK LED (green), FAIL LED (amber)
FAQs
Q: Does this power supply need a licence or subscription?
A: No. The power supply itself requires no licence or subscription.
Q: Which chassis and fans does it match?
A: It is for Catalyst 4500-X Series switches and must be paired with back-to-front chassis and fan modules, such as the C4KX-FAN-F. A mismatch in airflow direction causes the system to shut down the power supply.
Q: Can I run two power supplies for redundancy?
A: Yes. The Catalyst 4500-X chassis has two power supply bays, and fitting two modules gives redundant operation. Any unused bay should be covered with the C4KX-PWR-BLANK= blank cover.
Q: What power cord and input does it use?
A: It uses an IEC 60320 C15 inlet with a 15A power cord and accepts 100 to 240 VAC at 50-60 Hz.
Q: What is the front-to-back version?
A: The front-to-back equivalent is the C4KX-PWR-750AC-R. DC-input versions are the C4KX-PWR-750DC-F and C4KX-PWR-750DC-R.
