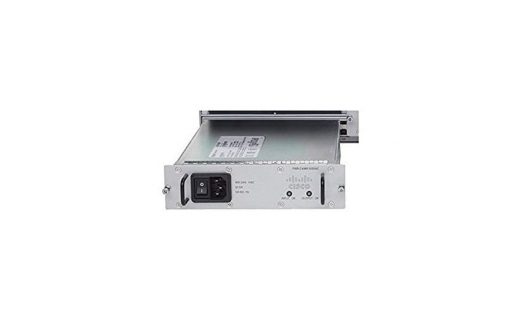

Cisco PWR-C49M-1000DC | Catalyst 4900M 1000W DC Power Supply, -48/-60 VDC
SKU:PWR-C49M-1000DC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 1000W DC power supply is built for the Cisco Catalyst 4900M fixed-modular data-centre switch. It is a hot-swappable unit, and a single supply is enough to run the switch. It suits data-centre, midmarket collapsed core, aggregation-layer and branch deployments, particularly sites fed from a DC plant such as telco or central-office environments.
The input is -48/-60 VDC, drawing up to 31.60A maximum at -40.5 VDC input. Output is rated at a maximum of 80.0A, with maximum heat dissipation of 1091.84 BTU per hour. It weighs 4.5 lb (2.0 kg). This SKU is the DC variant, distinct from the 1000W AC option PWR-C49M-1000AC.
A second supply can be fitted for 1+1 redundancy, in which case the two supplies share the load and the switch keeps running on one supply if the other is absent or fails. It is intended for the Catalyst 4900M only, and no licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable DC power supply for the Catalyst 4900M
- Supports 1+1 power redundancy with a second supply
- Load is shared between two installed supplies
- The switch runs on one supply if the other is absent or fails
- DC input suits telco and data-centre environments with -48 VDC plant power
- Spare and redundant supply ordering options available as PWR-C49M-1000DC(=) and PWR-C49M-1000DC/2
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power supply type: 1000W DC
- Nominal input voltage: -48/-60 VDC
- Input current: 31.60A maximum at -40.5 VDC input
- Output current: Maximum 80.0A
- Weight: 4.5 lb (2.0 kg)
- Heat dissipation: Maximum 1091.84 BTU per hour
- Redundancy: 1+1 hot-swappable, switch operates with a single supply installed
- Load sharing: Load is shared between two supplies when both are installed
- Switch operating temperature: 0 to 40 C (32 to 104 F)
- Switch storage temperature: -40 to 75 C (-40 to 167 F)
- Switch relative humidity: 10 to 90 percent, non-condensing
- Switch operating altitude: -60 to 2000 m (-197 to 6562 ft)
- Typical switch power use (40x 10/100/1000 + 8x 10GE X2): 328W
- Typical switch power use (16x 10GE): 282W
- Typical switch power use (24x 10GE): 368W
- Typical switch power use (16x 10GBASE-T + 8x 10GE X2): 446W
FAQs
Q: Does this power supply need a licence or subscription?
A: No. The power supply does not require any licence or subscription.
Q: Which switch does the PWR-C49M-1000DC fit?
A: It is for the Cisco Catalyst 4900M switch only, the 8-port base system used with half cards such as WS-X4908-10GE and WS-X4908-10G-RJ45.
Q: What input does it need?
A: It takes a -48/-60 VDC input and draws up to 31.60A maximum at -40.5 VDC input, delivering a maximum of 80.0A output.
Q: Can I run two supplies for redundancy?
A: Yes. A second supply can be fitted for 1+1 redundancy, and the two share the load. The switch also operates on a single supply.
Q: How does it differ from the PWR-C49M-1000AC?
A: Both are 1000W supplies for the Catalyst 4900M. This SKU takes a -48/-60 VDC input, while the PWR-C49M-1000AC is the AC input variant.
