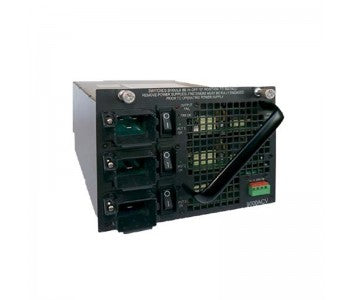

Cisco PWR-C45-9000ACV | Catalyst 4500 9000W AC Power Supply, Integrated PoE
SKU:PWR-C45-9000ACV
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst 4500 9000W AC power supply is a triple-input plug-in unit for Catalyst 4500E chassis. It supplies both system data power and integrated Power over Ethernet, making it suited to high-density enterprise campus and branch wiring closets where one supply must power the switch and large numbers of IP phones, access points, cameras and UPOE devices with redundancy.
Each of the three inputs accepts 100 to 240 VAC (plus or minus 10%) and can be fed from a separate AC circuit. Total output reaches 9000W on 220V inputs (three 3000W inputs), with up to 7500W available for PoE in redundant mode at 220V, or 2500W at 110V. In redundant mode it can support up to 384 Class 0 to 3 powered devices at 200V or 116 UPOE devices. It supports 1+1, combined and N+1 (5+1) power modes, with 20 ms hold-up time and true output power monitoring.
It is a member of the Catalyst 4500E power supply family and works with the 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E and 4510R+E chassis. Cisco IOS Software 15.1(2)SG or later is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Integrated PoE supports IEEE 802.3af, 802.3at (PoE+) and UPOE (60W per port)
- Triple-input design, each input can be fed from a separate AC circuit at 110V or 220V
- Supports 1+1, combined and N+1 (5+1) power-resiliency modes
- True output power consumption monitoring
- Per-input Input OK and Fan OK LEDs and a per-unit Output Fail LED
- SNMP MIB support for power supply status
- Supports up to 384 Class 0 to 3 devices at 200V or 116 UPOE devices in redundant mode
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum output: 9000W AC (3 x 3000W inputs at 220V)
- Integrated PoE: up to 7500W (redundant mode, 220V)
- Input voltage: 100 to 240 VAC (plus or minus 10%)
- Input current (rated): three 12A at 100 VAC or three 16A at 200 VAC
- Data output: 12V at 186.9A and 3.3V at 12.5A
- PoE output: -50V at 100A (200V) or 38.5A (120V)
- Redundant mode output (data): 1960W + 40W
- Redundant mode output (PoE): 7500W (220V), 2500W (110V)
- Combined mode output (data): 3762W
- Combined mode output (PoE): 14400W (220V), 4150W (110V)
- Single supply output, 110V inputs: 1100W, 2200W or 3300W with 1, 2 or 3 inputs
- Single supply output, 220V inputs: 3000W, 6000W or 9000W with 1, 2 or 3 inputs
- Redundancy: 1+1, combined and N+1 (5+1)
- Heat dissipation: 3010 BTU/hr
- Holdup time: 20 ms
- Rated MTBF: 186,000 hours
- Operating temperature: 0 to 40 C (32 to 104 F)
- Relative humidity: 10 to 90 percent, non-condensing
- Minimum Cisco IOS Software: 15.1(2)SG
FAQs
Q: Does this power supply need a licence or subscription?
A: No. The power supply itself requires no licence or subscription.
Q: Which chassis is it compatible with?
A: It fits Catalyst 4500E chassis: 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E and 4510R+E. Cisco IOS Software 15.1(2)SG or later is required.
Q: How much PoE power can it deliver?
A: Up to 7500W of PoE in redundant mode on 220V inputs, or 2500W on 110V inputs. In combined mode PoE output reaches 14400W at 220V.
Q: What AC input does it need?
A: It has three independent inputs, each accepting 100 to 240 VAC. Rated input current is 12A per input at 100 VAC or 16A per input at 200 VAC. Full 9000W output needs all three inputs on 220V.
Q: How does it differ from the other Catalyst 4500E power supplies?
A: It is the highest-capacity unit in the family, with 9000W triple-input output and integrated PoE up to 7500W, compared with the 1300W, 2800W, 4200W and 6000W ACV supplies.
