Cisco PWR-C45-6000ACV | Catalyst 4500 6000W AC Power Supply, Integrated PoE
SKU:PWR-C45-6000ACV
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

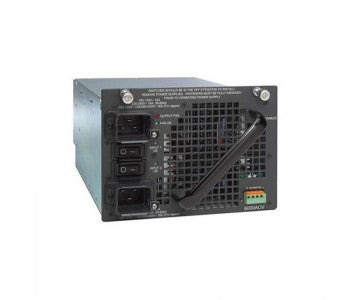

This is a 6000W AC-input power supply for the Catalyst 4500 and 4500-E series. It is a hot-swappable plug-in module that supplies both system (data) power and integrated Power over Ethernet, which suits campus and enterprise wiring-closet or distribution chassis that need a large PoE power budget for PoE and PoE+ devices.
The supply has dual AC inputs covering 110/220 V, with a low-line range of 85 to 132 VAC and a high-line range of 170 to 264 VAC at 50/60 Hz. Output is 3.3 / 12 V, with a 20 ms holdup time and heat dissipation of 2720 BTU/hr. Mixed-voltage input configurations are not supported, so both inputs should be fed from the same voltage range.
It works in Catalyst 4503, 4503-E, 4504, 4506, 4506-E, 4507R, 4507R-E, 4510R, 4510R+E and 4510R-E chassis, and requires Cisco IOS 12.2(52)SG or later. Each supply contains two sub-units and supports Combined Mode Power Resiliency, as well as redundant and combined power modes.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Integrated PoE delivery for Catalyst 4500 and 4500-E chassis
- Combined Mode Power Resiliency, with each supply containing two sub-units and the system needing only three of the four sub-units
- Hot-swappable plug-in module
- Dual AC inputs for 110/220 V operation
- Supports redundant and combined power modes
- Supplies both system (data) power and PoE from a single module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Device type: Power supply, plug-in module
- Power capacity: 6000 W
- Integrated PoE: Yes (data + PoE)
- AC input power: Yes, dual AC input
- Input voltage: AC 110/220 V
- AC-input voltage (low-line, 120 VAC nominal): 85 to 132 VAC
- AC-input voltage (high-line, 230 VAC nominal): 170 to 264 VAC
- AC-input frequency: 50/60 Hz nominal (+/-3 Hz for full range)
- Output voltage: 3.3 / 12 V
- Heat dissipation: 2720 BTU/hr
- Holdup time: 20 ms
- Hot swappable: Yes
- Minimum software: Cisco IOS 12.2(52)SG
- Mixed-voltage input configurations: Not supported
FAQs
Q: Which Catalyst 4500 chassis does this power supply fit?
A: It is used in Catalyst 4503, 4503-E, 4504, 4506, 4506-E, 4507R, 4507R-E, 4510R, 4510R+E and 4510R-E chassis, including the Data and PoE bundles.
Q: What software version is required?
A: The chassis must run Cisco IOS 12.2(52)SG or later to support this power supply.
Q: What AC input does it need?
A: It accepts 110/220 V AC at 50/60 Hz, with a low-line range of 85 to 132 VAC and a high-line range of 170 to 264 VAC. Mixed-voltage input configurations are not supported.
Q: Does it provide PoE as well as system power?
A: Yes. This variant has integrated PoE, so it supplies both system (data) power and Power over Ethernet to the chassis.
Q: Can it be replaced while the switch is running?
A: Yes. The module is hot-swappable and supports redundant and combined power modes, so it can be serviced without taking the chassis offline when a redundant configuration is in place.
