Cisco

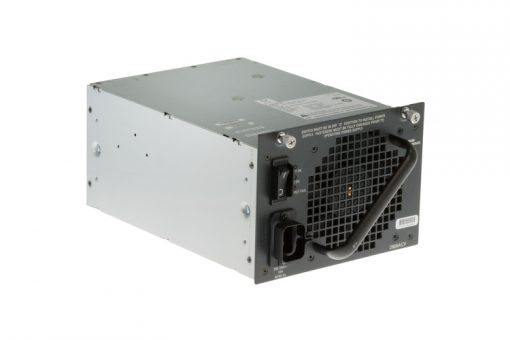

Cisco PWR-C45-2800ACV | Catalyst 4500 2800W AC PoE Power Supply, 200-240V

SKU:PWR-C45-2800ACV

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C45-2800ACV is a hot-swappable 2800W AC internal power supply for the Cisco Catalyst 4500 E-Series, designed for medium to large campus and branch access deployments. It powers both data and inline PoE, making it suited to IP phones, wireless access points, video cameras and other IEEE 802.3af/at devices.

This variant takes 200-240 VAC input only, at up to 16 A at 200 VAC and 50/60 Hz, through a C19 power cord. It delivers 2800W maximum output, with up to 1400W of PoE per supply in redundant mode and 2333W of PoE in combined mode. Data output is 1360W plus 40W in redundant mode and 2473W in combined mode. In redundant mode it supports 186 x 802.3af Class 2 powered devices. Holdup time is 20 ms minimum and heat dissipation is 2387 BTU/hr.

It is supported in Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E, 4507R+E and 4510R+E chassis and works with Catalyst 4500 E-Series PoE and UPOE line cards. Supplies can be deployed in 1+1 redundant or combined power modes.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable internal power supply for Catalyst 4500 E-Series chassis
- Supports both data-only and PoE deployments
- Integrated PoE of up to 1400W per supply in redundant mode and 2333W in combined mode
- Supports 1+1 redundant or combined power modes
- Autoranging input with power factor corrector
- Compatible with Catalyst 4500 E-Series PoE and UPOE line cards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Maximum output: 2800W
- AC input voltage: 200 to 240 VAC (±10%), single-phase, 200-240V only
- AC input current: 16 A maximum at 200 VAC
- AC input frequency: 50/60 Hz nominal
- Input type: Autoranging with power factor corrector
- Integrated PoE: up to 1400W per supply (redundant mode)
- PoE output, combined mode: 2333W
- Data output, redundant mode: 1360W + 40W
- Data output, combined mode: 2473W
- Output current (data): 113.3 A at 12 VDC, 12.1 A at 3.3 VDC
- Output current (PoE): 28 A at -50 VDC
- Holdup time: 20 ms minimum
- Maximum kVA rating: 3.52 kVA
- Heat dissipation: 2387 BTU/hr maximum
- 802.3af Class 2 devices supported (redundant mode): 186
- 802.3af Class 0 and 3 devices supported (redundant mode): 84
- 802.3af Class 4 devices supported (redundant mode): 43
- Rated MTBF: 155,822 hours
- Power cord connector: IEC 60320 C19 appliance plug
- Minimum Cisco IOS release: 12.1(13)EW
- Minimum Catalyst OS release: 7.4(1)

FAQs

Q: Does this power supply need a licence or subscription?
A: No. It is a hardware component and requires no licence or subscription.

Q: Can it run from a 100-120V outlet?
A: No. This variant accepts 200-240 VAC single-phase input only, at 16 A maximum at 200 VAC. Each supply needs its own dedicated fused branch circuit and connects with a C19 power cord.

Q: Which Catalyst 4500 chassis does it fit?
A: It is supported in Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E, 4507R+E and 4510R+E chassis. It works with Catalyst 4500 E-Series PoE and UPOE line cards.

Q: How much PoE can it deliver?
A: Up to 1400W of PoE per supply in redundant mode and 2333W of PoE in combined mode. In redundant mode it supports 186 x 802.3af Class 2 powered devices.

Q: Which Cisco IOS release does it require?
A: The minimum Cisco IOS release is 12.1(13)EW, and the minimum Catalyst OS release is 7.4(1).
