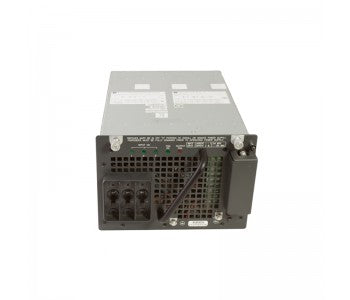

Cisco PWR-C45-1400DC-P | Catalyst 4500E 1400W DC Power Supply, PEM, Data + PoE
SKU:PWR-C45-1400DC-P
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 1400W DC power supply is built for Cisco Catalyst 4500E chassis in the Catalyst 4500 / 4500E range. It includes an integrated power entry module (PEM), so it connects directly to a DC power plant, and it delivers both data power and Power over Ethernet from a single unit. It suits campus and enterprise wiring closets or telecom and DC-powered sites that need to feed IP phones, access points and cameras.
In redundant mode the data output is 1360W + 40W, with outputs of 12V at 120A and 3.3V at 12.5A. Integrated PoE provides up to 7500W (minus the power consumed for data) when connected directly to a DC power plant or two external AC power shelves, with a PoE output of 140A at -48/-60 VDC. Rated input current is 31A at -60 VDC for data only and 180A at -48 VDC for PoE. Heat dissipation is 1591 BTU per hour for data only and 2905 BTU per hour for data and voice, and the holdup time is 4 ms.
This is the Data + PoE model with the integrated PEM, so it should not be confused with PWR-C45-1400DC, the triple-input 1400W DC supply that provides data power only. The supply is hot-swappable for in-service replacement.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Integrated power entry module (PEM) allows direct connection to a DC power plant
- Provides both data power and PoE from one supply
- Hot-swappable for in-service replacement
- Supports redundant and combined power modes in Catalyst 4500E chassis
- Part of the Catalyst 4500E power supply range alongside the 1000W, 1400W, 1300W, 2800W, 4200W, 6000W and 9000W AC models and the 1400W DC triple-input model
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power supply type: 1400W DC with Power Entry Module (PEM)
- Integrated PoE: up to 7500W (minus the power consumed for data) when connected to a DC power plant or 2 external AC power shelves
- Rated input current: 31A at -60 VDC (data only), 180A at -48 VDC (PoE)
- Output current (data): 12V at 120A, 3.3V at 12.5A
- Output current (PoE): 140A at -48/-60 VDC
- Output power, redundant mode (data): 1360W + 40W
- Output power, redundant mode (PoE): up to 7500W (minus the power consumed for data)
- Output power, combined mode (PoE): 3800W (100V)
- Heat dissipation: 1591 BTU per hour (data only), 2905 BTU per hour (data and voice)
- Holdup time: 4 ms
- Hot swappable: Yes
- Operating temperature (Catalyst 4500/4500E system): 0 to 40 C (32 to 104 F)
- Storage temperature (system): -40 to 75 C (-40 to 167 F)
- Relative humidity (system): 10 to 90 percent, noncondensing
- Operating altitude (system): -60 to 3000 m
FAQs
Q: Does this power supply provide PoE as well as data power?
A: Yes. Integrated PoE provides up to 7500W, minus the power consumed for data, when connected directly to a DC power plant or two external AC power shelves.
Q: What is the difference between PWR-C45-1400DC-P and PWR-C45-1400DC?
A: PWR-C45-1400DC-P has an integrated power entry module and delivers data power plus PoE. PWR-C45-1400DC is the triple-input 1400W DC supply and provides data power only.
Q: Which chassis does it work with?
A: It is a power supply for the Cisco Catalyst 4500E Series chassis, within the Catalyst 4500 / 4500E range.
Q: What DC input does it need?
A: The rated input current is 31A at -60 VDC for data only and 180A at -48 VDC when delivering PoE.
Q: Can it be replaced while the switch is running?
A: Yes. The supply is hot-swappable, so it can be replaced in service.
