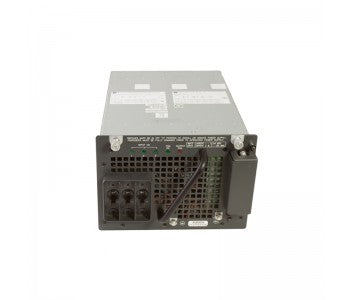

Cisco PWR-C45-1400DC | Catalyst 4500 1400W DC Power Supply, Triple Input
SKU:PWR-C45-1400DC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The PWR-C45-1400DC is a hot-swappable 1400W DC power supply for the Catalyst 4500 and 4500-E series. It is a triple-input, data-only unit designed for service provider central-office deployments and other -48 VDC environments where multiple DC feeds are needed for redundancy.
The supply takes three -48 VDC inputs: two rated at 15A and one rated at 12.5A. Output in redundant mode is 1400W plus 40W, delivered as 1360W on the 12V rail and 40W on the 3.3V rail. Heat dissipation is 1048 BTU per hour. This is a data-only variant with no integrated PoE, so it provides no PoE budget. Five operational modes are available, depending on which inputs receive power.
It is supported in Catalyst 4500 E-series chassis including the 4503-E, 4506-E and 4507R-E. Deployments that need high-power PoE should use the PWR-C45-1400DC-P model instead.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Triple DC inputs let central-office technicians tailor output power to their application
- Added redundancy from terminals for two 15A DC inputs and one 12.5A input per supply
- Hot-swappable for replacement without taking the chassis offline
- Optimised for service provider central-office deployments
- Data-only variant with no integrated PoE
- Five operational modes depending on which DC inputs are powered
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power supply type: 1400W DC, triple input, data only
- Integrated PoE: No (data only)
- DC input: two inputs at -48 VDC, 15A each
- DC input: one input at -48 VDC, 12.5A
- Output current (data): 12V at 1360W
- Output current (data): 3.3V at 40W
- Output power, redundant mode: 1400W + 40W
- Heat dissipation: 1048 BTU per hour
- Hot-swappable: Yes
- Operational modes: five, depending on which inputs receive power
- Supported chassis: Catalyst 4503-E, 4506-E, 4507R-E and other 4500 E-series chassis
FAQs
Q: Does this power supply provide PoE?
A: No. The PWR-C45-1400DC is a data-only supply and provides no PoE budget. For PoE deployments, the PWR-C45-1400DC-P model is the appropriate variant.
Q: What DC input does it require?
A: It takes -48 VDC on three inputs: two rated at 15A and one rated at 12.5A. Multiple feeds can be connected for added redundancy.
Q: Which Catalyst chassis does it work with?
A: It is supported in Catalyst 4500 E-series chassis, including the 4503-E, 4506-E and 4507R-E.
Q: What is the output power?
A: In redundant mode the output is 1400W plus 40W, with 1360W on the 12V rail and 40W on the 3.3V rail.
Q: Can it be replaced while the switch is running?
A: Yes. The supply is hot-swappable.
