Cisco

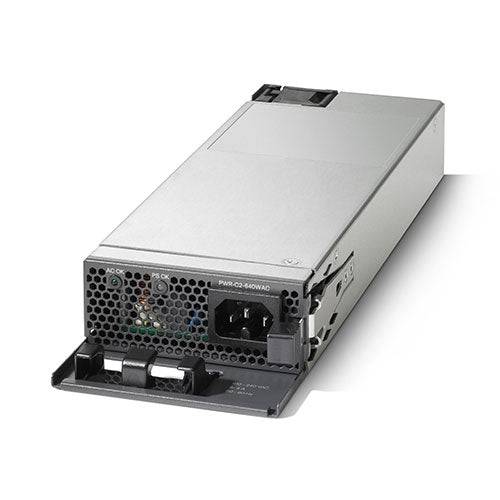

Cisco PWR-C2-640WAC | Catalyst 3850 640W AC Hot-Swap Power Supply, Config 2

SKU:PWR-C2-640WAC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a hot-swappable 640W AC power supply module in Cisco's Config 2 (C2) form factor, built for Catalyst 3850 and Catalyst 9300 Series switches. It suits enterprise LAN access and distribution switches that need PoE+ capacity, either as the primary supply or as a second module for redundancy.

The unit accepts an autoranging 100-240 VAC input at 50-60 Hz, drawing 8 to 4 A. It delivers two outputs, +12 V at 20.83 A and -54 V at 7.36 A, for a rated output of 640 W. Heat output is approximately 2371 BTU/hr measured on input power and 2183 BTU/hr on output power. The module measures 1.58 x 3.75 x 11.75 in and weighs 3.1 lb (1.41 kg).

Because it is hot-swappable, a failed or replaced unit can be exchanged without powering down the switch. Pairing it with a second C2-slot power supply provides a redundant configuration for higher availability. Confirm the host switch uses the Config 2 power supply slot before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 640W AC output supports high-density PoE+ switch configurations and connected device loads
- Hot-swappable design allows replacement without powering down the switch
- Supports redundant power configurations when paired with a second C2-slot power supply
- Universal autoranging AC input range for global deployment
- Compatible with Cisco Redundant Power Supply (RPS) designs for high availability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Rated output power: 640 W
- Input voltage: 100-240 VAC autoranging
- Input frequency: 50-60 Hz
- Input current: 8 to 4 A
- Output 1: +12 V at 20.83 A
- Output 2: -54 V at 7.36 A
- Heat output (input power): approx. 2371 BTU/hr
- Heat output (output power): approx. 2183 BTU/hr
- Dimensions (H x W x D): 1.58 x 3.75 x 11.75 in
- Weight: 3.1 lb (1.41 kg)
- Hot-swap: Yes
- Redundancy: Supported with a second C2-slot power supply

Also Known As

PWR-C2-640WAC=, PWR-C2-640WAC/2, PWR-C2-640WAC-RF

FAQs

Q: Which switches use the PWR-C2-640WAC power supply?
A: It uses the Config 2 (C2) power supply form factor and is intended for Catalyst 3850 and Catalyst 9300 Series switches. Check that your switch has a C2 power supply slot before ordering.

Q: What AC input voltage does it accept?
A: It accepts an autoranging input of 100-240 VAC at 50-60 Hz, with an input current of 8 to 4 A, so it suits deployments in different regions.

Q: Can it be used for power redundancy?
A: Yes. Installing it alongside a second C2-slot power supply gives a redundant power configuration, and the modules are hot-swappable.

Q: What are the power outputs of this module?
A: It provides two outputs: +12 V at 20.83 A and -54 V at 7.36 A, for a rated output of 640 W.

Q: How does this differ from other C2 power supplies?
A: This variant is the 640W AC Config 2 unit. Other C2 supplies are rated at different wattages, so choose the one that matches the PoE budget your switch needs.
