Cisco

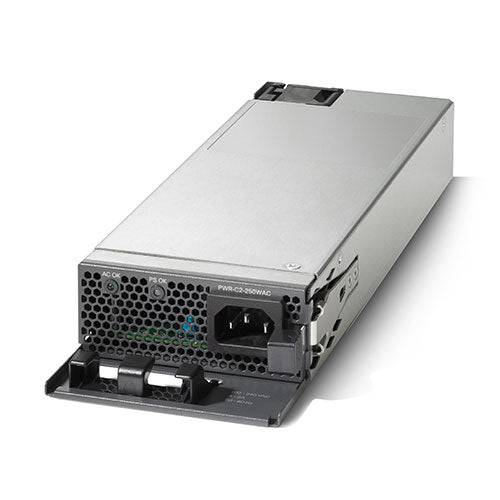

Cisco PWR-C2-250WAC | Catalyst 2960-XR 250W AC Power Supply, Non-PoE

SKU:PWR-C2-250WAC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C2-250WAC is a field-replaceable 250W AC power supply with a built-in cooling fan for Cisco Catalyst 2960-XR Series switches. It suits access and campus deployments that need a spare power supply, or a second module to give the switch power redundancy.

This is the non-PoE, 250W AC variant, and it provides no PoE budget. It is the default power supply on the non-PoE 2960-XR models, so it is the right part to stock for those switches. Switches that deliver PoE+ use the higher-capacity PWR-C2-640WAC (370W PoE+) or PWR-C2-1025WAC (740W PoE+) modules instead. Fitting two PWR-C2-250WAC modules gives switch power redundancy, while a single module does not. The module has a predicted MTBF of 1,000,000 hours.

It is intended for the non-PoE 2960-XR models WS-C2960XR-24TS-I, WS-C2960XR-48TS-I, WS-C2960XR-24TD-I and WS-C2960XR-48TD-I. No licence is required for the power supply itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable modular power supply for the Catalyst 2960-XR series
- Built-in fan provides cooling for the module
- Two power supplies give switch power redundancy
- Default power supply on non-PoE 2960-XR models
- Suited to resilient access-layer and campus deployments
- Can be fitted as a spare or as a second power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Part number: PWR-C2-250WAC (spare: PWR-C2-250WAC=)
- Power output: 250W AC
- Type: Field-replaceable modular power supply with built-in fan
- PoE budget: None (non-PoE)
- Switch power redundancy with a single PSU: No
- Switch power redundancy with two PWR-C2-250WAC: Yes
- Cooling: Built-in fan in the power supply module
- Predicted reliability (MTBF): 1,000,000 hours
- Default PSU for: WS-C2960XR-24TS-I, WS-C2960XR-48TS-I, WS-C2960XR-24TD-I, WS-C2960XR-48TD-I
- Host switch input voltage (non-PoE 2960-XR models): 90 to 264 VAC auto-ranging, 50 to 60 Hz

Also Known As

PWR-C2-250WAC=, PWR-C2-250WAC/2, PWR-C2-250WAC-RF

FAQs

Q: Which switches use the PWR-C2-250WAC?
A: It is intended for the non-PoE Catalyst 2960-XR models: WS-C2960XR-24TS-I, WS-C2960XR-48TS-I, WS-C2960XR-24TD-I and WS-C2960XR-48TD-I.

Q: Does this power supply provide PoE?
A: No. It is a 250W AC non-PoE module with no PoE budget. For PoE+ models, Cisco offers the PWR-C2-640WAC (370W PoE+) and PWR-C2-1025WAC (740W PoE+).

Q: Can I use two of these for redundancy?
A: Yes. Fitting two PWR-C2-250WAC modules gives switch power redundancy. A single power supply does not provide redundancy.

Q: Does it work with the fixed-PSU Catalyst 2960-X series?
A: No. It is for the non-PoE 2960-XR models. The fixed-PSU 2960-X series uses the external Cisco RPS 2300 (PWR-RPS2300) for redundancy.

Q: Do I need a licence for this power supply?
A: No. The power supply needs no licence. The host 2960-XR switches ship with the Cisco IOS IP Lite feature set.
