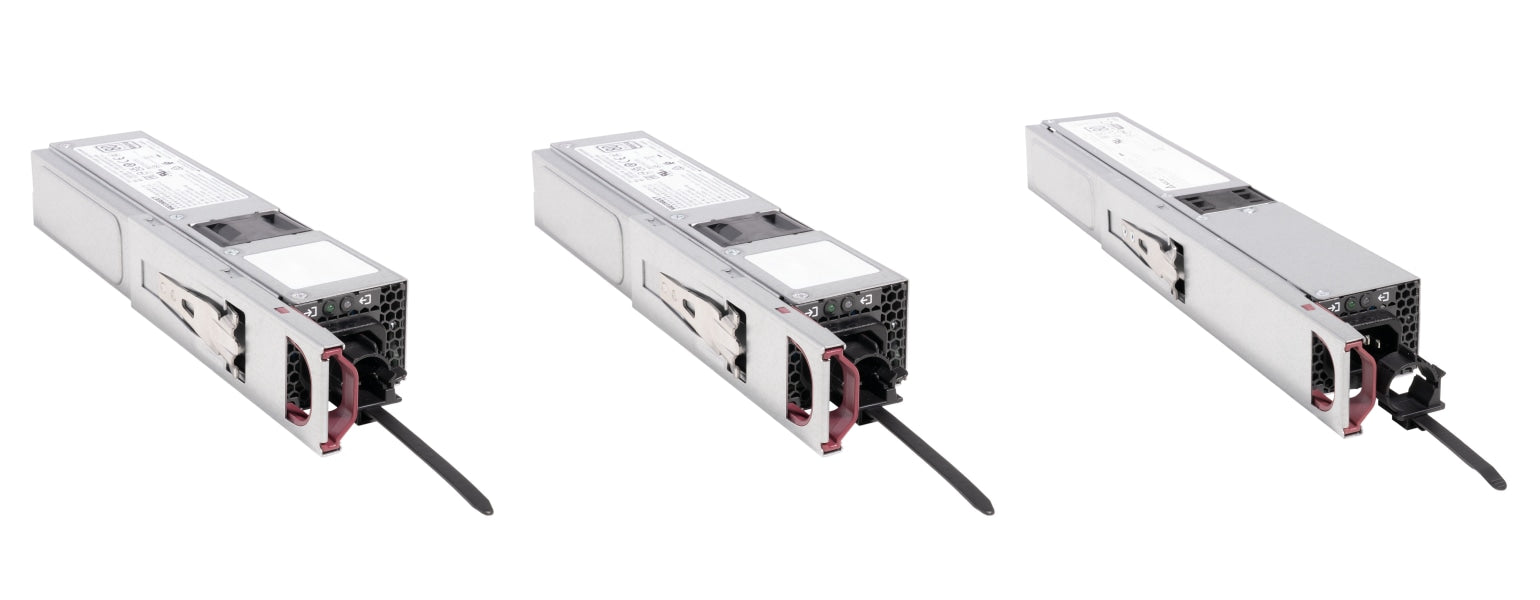

Cisco PWR-C2-1600WAC-I | Catalyst C9350 1600W AC Power Supply, Port Inlet Airflow

SKU:PWR-C2-1600WAC-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 1600W AC power supply module is built for Cisco Catalyst C9350 Series Smart Switches. It is a hot-swappable, field-replaceable unit with port inlet airflow, suited to campus access-layer deployments that need a large PoE budget or N+1 power redundancy, including high-density 90W PoE and smart-building networks.

It delivers up to 1600W on a 180V to 264V input and 1200W on a 103.5V to 132V input, with 94% power supply efficiency and a maximum input current of 12.5A. The input receptacle is AC IEC 60320 C16. Output holdup time is over 20ms at 1600W and over 12ms at 1200W. It measures 5.55 x 4 x 30 cm and weighs 1.08 kg. It is the highest-wattage PSU option for the C9350 range, alongside the 500W and 850W modules.

It works with Cisco Catalyst C9350 Series models including the C9350-24HX, C9350-48HX, C9350-48P, C9350-24U, C9350-48U, C9350-48HXN, C9350-48HM, C9350-48HXG and C9350-48TX. The port inlet airflow matches the C9350-FAN-I port inlet fan module, and it can be mixed with 500W and 850W power supplies in Combined mode.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power supply
- Supports up to three power supplies per chassis for N+1 redundancy
- Automatic load balancing across active power supplies
- Supports Combined and Redundant power modes
- Larger PoE budget for high-density 90W PoE deployments
- Port inlet airflow design matching C9350-FAN-I port inlet fan modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Maximum output power: 1600W (230V input), 1200W (115V input)
- Input voltage range: 180V to 264V (1600W), 103.5V to 132V (1200W)
- Power supply efficiency: 94%
- Input current: 12.5A max
- Output rating: 28.57A max (1600W), 21.43A max (1200W)
- Output holdup time: over 20ms (1600W), over 12ms (1200W)
- Total output BTU: 5461 (1600W), 4096 (1200W)
- Input receptacle: AC IEC 60320 C16
- Airflow: Port inlet
- Dimensions (H x W x D): 5.55 x 4 x 30 cm (2.18 x 1.57 x 11.81 in)
- Weight: 1.08 kg (2.39 lb)
- MTBF: 1126158

FAQs

Q: Does this power supply require a licence?
A: No. No licence is required for the power supply itself.

Q: Which switches does it work with?
A: It is designed for Cisco Catalyst C9350 Series Smart Switches, including the C9350-24HX, C9350-48HX, C9350-48P, C9350-24U, C9350-48U, C9350-48HXN, C9350-48HM, C9350-48HXG and C9350-48TX.

Q: What power does it deliver on 115V and 230V input?
A: It delivers up to 1600W on a 180V to 264V input and up to 1200W on a 103.5V to 132V input.

Q: Which fan module should I pair it with?
A: The port inlet airflow matches the C9350-FAN-I port inlet fan module. Use matching airflow direction across the chassis.

Q: Can I mix it with other power supply wattages?
A: Yes. It can be mixed with 500W and 850W power supplies in Combined mode.

Q: Does it support power redundancy?
A: Yes. A chassis supports up to three power supplies for N+1 redundancy, with automatic load balancing across the active units.
