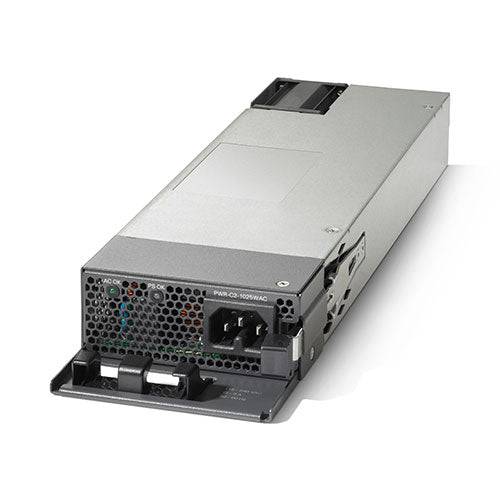

Cisco PWR-C2-1025WAC | Catalyst 2960-XR 1025W AC Power Supply, 740W PoE+

SKU:PWR-C2-1025WAC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C2-1025WAC is a hot-swappable, field-replaceable 1025W AC power supply module with a built-in fan, designed for Cisco Catalyst 2960-XR switches. It can be fitted as the primary power supply or as a second supply for redundancy, keeping access-layer switches powering IP phones, wireless access points and cameras.

This Config 2 module delivers 1025W of output (+12V at 20.83A and -54V at 14.6A) from an autoranging 115-240 VAC input at 50-60 Hz. Installed in a Catalyst 2960-XR 740W PoE+ switch it provides the full 740W PoE+ budget, which separates it from the PWR-C2-640WAC (370W PoE+) and the PWR-C2-250WAC (non-PoE). Input draw is up to 1114W, or 3801 BTU per hour at 115 VAC.

It suits Catalyst 2960-XR 740W PoE+ models such as the WS-C2960XR-48FPD-I and WS-C2960XR-48FPS-I, and is also listed as the Config 2 power supply for the Catalyst 3650 Series. It is not intended for 2960-X (non-R) switches, which use a fixed internal power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable modular power supply with built-in fan
- Hot-swappable for replacement without powering down the switch
- Supports dual redundant power supplies in Catalyst 2960-XR switches
- Provides the 740W PoE+ budget on 2960-XR 48-port full-PoE+ models
- Autoranging AC input for 115-240 VAC environments
- Config 2 power supply module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Maximum output power: 1025W
- Input voltage: 115-240 VAC autoranging
- Input frequency: 50-60 Hz
- Input current: 12-6 A
- Output: +12V @ 20.83A and -54V @ 14.6A
- PoE+ power available to switch: 740W
- Total input power: 1114W (3801 BTU per hour at 115 VAC)
- Total output: 1025W (3497 BTU per hour)
- Operating temperature: -5 to 45 C (23 to 113 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 10-95% (non-condensing)
- Altitude: up to 3,000 m (10,000 ft)
- Dimensions (H x W x D): 4.0 x 9.5 x 33.7 cm (1.58 x 3.75 x 13.25 in)
- Additional switch depth when fitted: 7.9 cm (3.1 in)
- Weight: 1.61 kg (3.55 lb)
- MTBF: 1,000,000 hours

Also Known As

PWR-C2-1025WAC=, PWR-C2-1025WAC/2, PWR-C2-1025WAC-RF

FAQs

Q: Does this power supply need a licence or subscription?
A: No. It is a hardware power supply module and needs no licence or subscription.

Q: Which switches does the PWR-C2-1025WAC work with?
A: It fits Catalyst 2960-XR 740W PoE+ switches such as the WS-C2960XR-48FPD-I and WS-C2960XR-48FPS-I, and is also listed as a Config 2 power supply for the Catalyst 3650 Series. It is not for 2960-X (non-R) switches.

Q: What PoE budget does it provide?
A: Installed in a Catalyst 2960-XR 740W PoE+ switch, it supports a 740W PoE+ budget from 1025W of total output.

Q: How does it differ from the PWR-C2-640WAC and PWR-C2-250WAC?
A: The PWR-C2-1025WAC is the 1025W module with a 740W PoE+ budget. The PWR-C2-640WAC supports 370W PoE+, and the PWR-C2-250WAC is the non-PoE option.

Q: Can it be used for power redundancy?
A: Yes. It can be fitted as the primary supply or as a second supply, and Catalyst 2960-XR switches support dual redundant power supplies.
