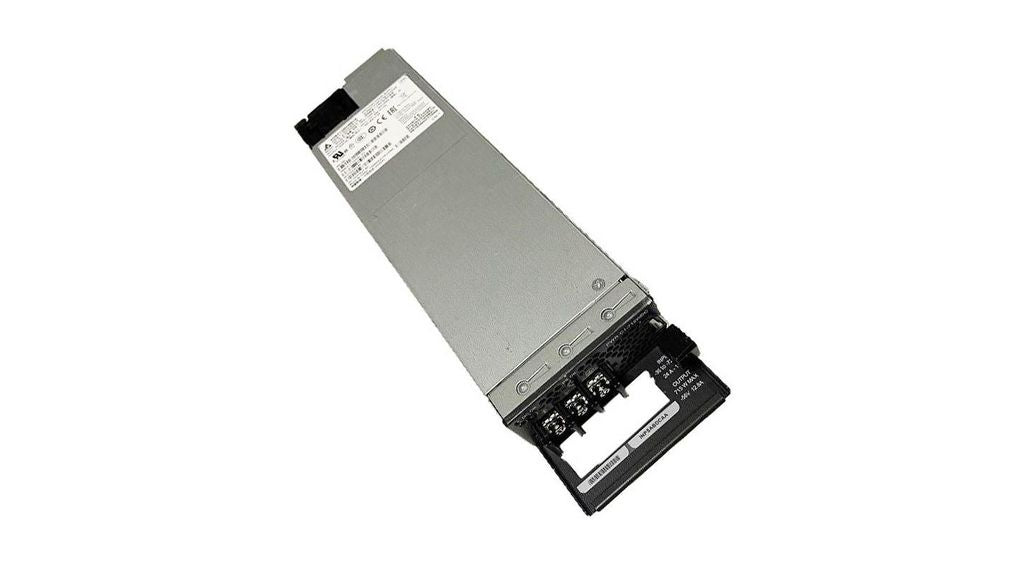

Cisco PWR-C1-715WDC/2 | Catalyst 9300 715W DC Power Supply, 2-Pack
SKU:PWR-C1-715WDC/2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The PWR-C1-715WDC/2 is a two-pack of hot-swappable 715 W DC-input power supply modules (Config 1) for Cisco Catalyst 9300, 9300L and 9300X Series switches. It suits DC-powered deployments such as telco, central-office and industrial wiring closets, as well as campus access and aggregation stacks that need redundant power or extra PoE budget.
Each module accepts a DC input of -36 to -72 VDC (-48 VDC nominal) at 24-12 A and delivers 715 W at -56 V and 12.8 A. A 20 A branch circuit protection is required. Two 715 W modules satisfy PoE+ on all ports of a 24-port switch, and pairing with a 1100 W unit is used for 48-port PoE+ and UPOE models. This SKU is a bundle of two PWR-C1-715WDC modules, so you can run redundant supplies or expand the PoE budget from a single order.
The module works with the Catalyst 9300, 9300L and 9300X families and can be combined with other C1 power supplies such as the 715 W AC and 1100 W AC units, in line with the PoE power-supply requirement tables. No licence is required for the power supply itself.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable field-replaceable power supply module
- Supported in Catalyst 9300, 9300L and 9300X Series switches
- Supports power redundancy (N+1 / N+N) and PoE budget expansion when paired with a second supply
- Terminal block with safety cover for DC wiring
- DC OK and PS OK status LEDs for at-a-glance monitoring
- Release latch and extraction handle for easy servicing
- Suited to Fast PoE and Perpetual PoE capable Catalyst 9300 platforms
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Pack quantity: 2 x PWR-C1-715WDC
- Maximum output power: 715 W per module
- Output rating: -56 V at 12.8 A
- DC input voltage: -36 VDC (min), -48 VDC (nominal), -72 VDC (max)
- Input current: 24-12 A
- Branch circuit protection: 20 A
- Total input BTU: 2777 BTUs per hour at 715 W (based on -40 VDC)
- Total output BTU: 2440 BTUs per hour
- Ground wire gauge: 12 AWG or 8 AWG
- Dimensions (H x W x D): 40.1 x 82.55 x 309.9 mm
- Weight: 1.3 kg (2.8 lb) per module
- Operating temperature: -5 to 45 C up to 1500 m; -5 to 40 C up to 3000 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 90% (non-condensing)
- Altitude: up to 3,000 m (10,000 ft) at up to 40 C
- MTBF: 1,812,103 hours (-48 V input at 40 C)
- Front-panel indicators: DC OK LED, PS OK LED
- Connections: input terminal block with safety cover, grounding terminal
FAQs
Q: Does the power supply need a licence?
A: No. No licence or subscription is required for the power supply itself.
Q: What input power does it need?
A: Each module takes a DC input of -36 to -72 VDC (-48 VDC nominal) at 24-12 A, with 20 A branch circuit protection. Output is 715 W at -56 V and 12.8 A.
Q: Which switches does it work with?
A: It is supported in Catalyst 9300, 9300L and 9300X Series switches. It can be combined with other C1 power supplies such as the 715 W AC and 1100 W AC units.
Q: Can I use it for PoE budget or redundancy?
A: Yes. With the two modules in this pack you can run redundant power or increase the PoE budget. Two 715 W modules satisfy PoE+ on all ports of a 24-port switch.
Q: How does this differ from the single-module SKU?
A: This SKU is a 2-pack containing two PWR-C1-715WDC DC-input modules, rather than a single supply.
