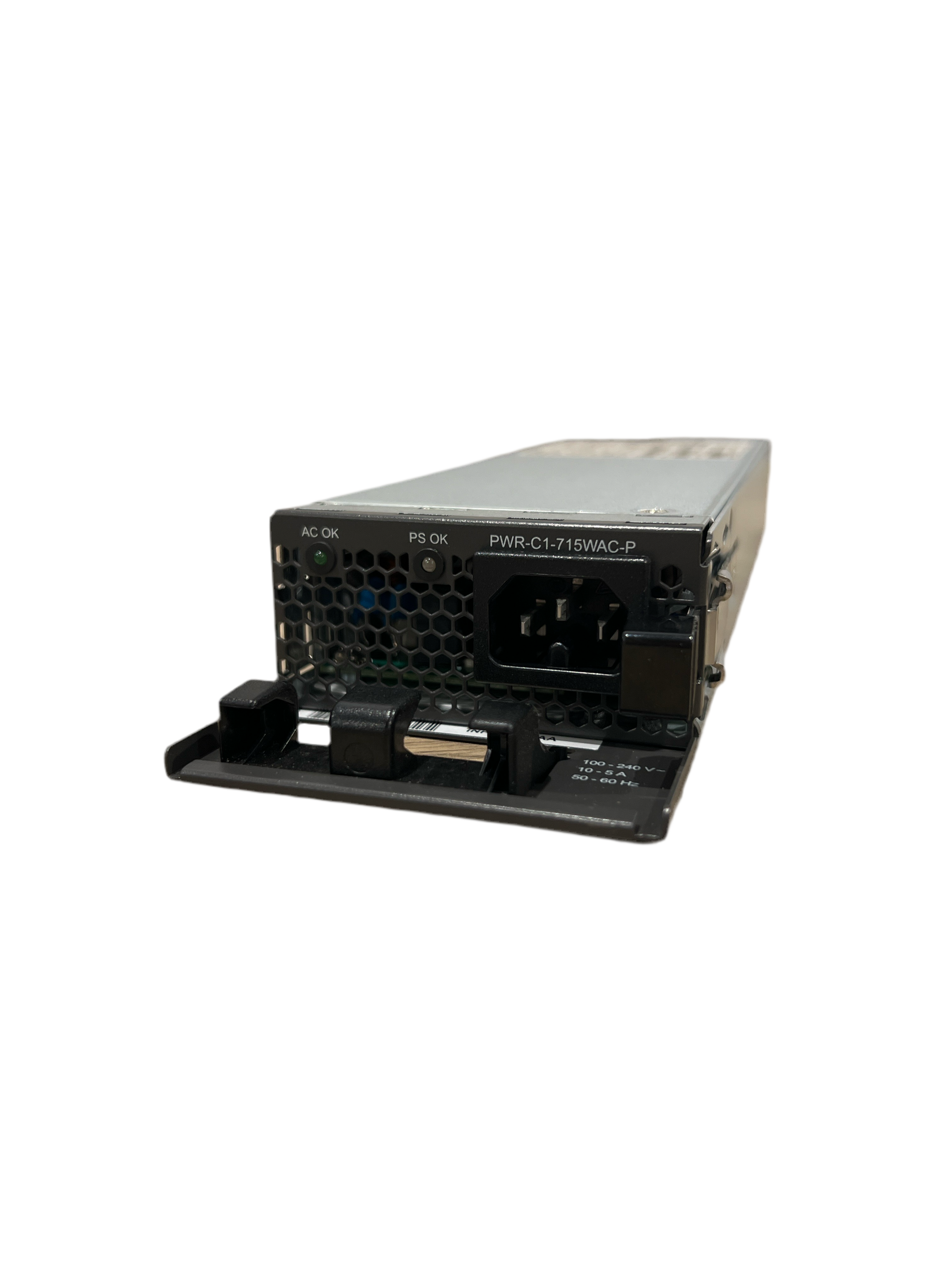

Cisco PWR-C1-715WAC-P | Catalyst 9300 715W AC Power Supply, 80+ Platinum

SKU:PWR-C1-715WAC-P

$1,534.50 inc. GST
$1,395.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

1 in stock

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C1-715WAC-P is a 715 W autoranging AC power supply module for Cisco Catalyst 9300 Series switches. It is field-replaceable and hot-swappable, so it suits campus access and distribution switches that need primary or redundant power, including PoE and PoE+ deployments where a 715 W budget is sufficient.

This Config 1 module is 80 Plus Platinum certified and accepts 100 to 240 VAC input at 47-63 Hz. It delivers -56 V at 12.8 A, giving a maximum output of 715 W to the switch and its PoE budget. At 100 VAC, input draw is about 798 W (2723 BTU per hour) against 715 W of output (2440 BTU per hour).

Recommended cable: Blue Cable Co® C14 to C15 power cable. Its slim C15 plug fits this power supply’s cable management bracket.

It fits Catalyst 9300, 9300L and 9300X series switches, and shares its form factor of 40.1 x 82.55 x 309.9 mm with the 715 W DC and 350 W Platinum Config 1 modules. Check the target switch's hardware installation guide for the exact PoE budget supported by a 715 W module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable and hot-swappable, so it can be replaced without shutting the switch down
- Autoranging input from 100 to 240 VAC
- Platinum-certified high efficiency
- Supports redundant power supply operation in switches with two power supply bays
- Supplies -56 V DC to the switch and its PoE budget
- Same form factor as the 715 W DC and 350 W Platinum modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Maximum output power: 715 W
- Efficiency certification: 80 Plus Platinum
- Input voltage: 100 to 240 VAC autoranging
- Input frequency: 47-63 Hz
- Input current: 10-5 A
- Output rating: -56 V at 12.8 A
- Total input BTU: 2723 BTU per hour, 798 W (at 100 VAC)
- Total output BTU: 2440 BTU per hour, 715 W
- Input receptacle: IEC 320-C16, 15 A power cord rating
- Output holdup time: 16.7 ms minimum at 100 VAC
- Dimensions (H x W x D): 40.1 x 82.55 x 309.9 mm
- Weight: 1.2 kg
- Operating temperature: -5 to 45 C up to 1500 m; -5 to 40 C up to 3000 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 90% (non-condensing)
- Altitude: up to 3000 m (up to 40 C)

Also Known As

PWR-C1-715WAC-P=, PWR-C1-715WAC-P-M, PWR-C1-715WAC-P/2, PWR-C1-715WAC-P-RF

FAQs

Q: Which switches does this power supply fit?
A: It is used in Catalyst 9300, 9300L and 9300X series switches. Check the hardware installation guide for your exact switch model before ordering.

Q: Is the power supply hot-swappable?
A: Yes. It is field-replaceable and hot-swappable, so it can be replaced without shutting the switch down.

Q: What input voltage does it accept?
A: It accepts 100 to 240 VAC autoranging input at 47-63 Hz, so it works across standard AC supplies without manual voltage selection.

Q: Can I use it for redundant power?
A: Yes. In switches with two power supply bays it can be installed for redundant power supply operation.

Q: How does it differ from the non-Platinum 715 W module?
A: This SKU is 80 Plus Platinum certified, giving higher conversion efficiency than the standard PWR-C1-715WAC. The 715 W output rating is the same.
