Cisco

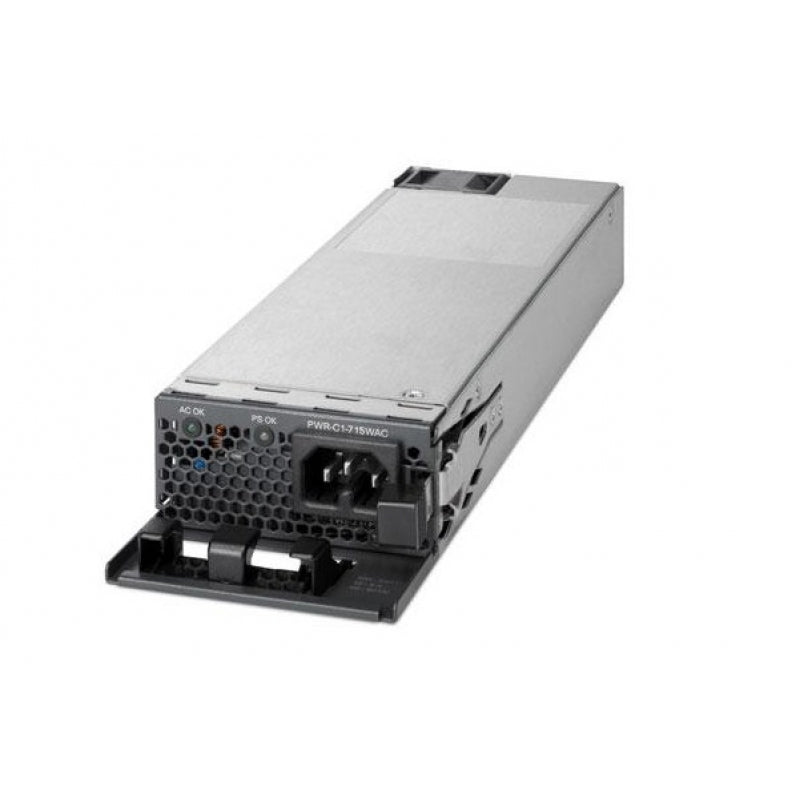

Cisco PWR-C1-715WAC-P/2 | Power Supply for Catalyst 9300, 715W AC, Secondary

SKU:PWR-C1-715WAC-P/2

$1,534.50 inc. GST
$1,395.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

1 in stock

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 715W AC power supply module for the Cisco Catalyst 9300 Series, built to 80 PLUS Platinum efficiency. The secondary designation means it suits the second power supply slot, giving access and campus switches power redundancy or a larger PoE budget.

The module delivers a maximum output of 715 W from an autoranging AC input. It is a Config 1 power supply and is field-replaceable and hot-swappable, so it can be fitted or exchanged without taking the switch out of service. It measures 1.58 x 3.25 x 12.20 in. (40.1 x 82.55 x 309.9 mm) and weighs 2.6 lb (1.2 kg).

Recommended cable: Blue Cable Co® C14 to C15 power cable. Its slim C15 plug fits this power supply’s cable management bracket.

It is intended for Cisco Catalyst 9300 Series switches that use Config 1 power supply slots. Check the Catalyst 9300 data sheet for the exact PoE budget available on each switch model when paired with the 715W supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 80 PLUS Platinum high-efficiency AC power supply
- Hot-swappable, field-replaceable module
- Installs as a secondary supply for power redundancy
- Autoranging AC input voltage
- Supports PoE budget on Catalyst 9300 PoE models
- Config 1 power supply for Catalyst 9300 Series

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Power supply module
- Maximum output power: 715 W
- Input: AC, autoranging
- Efficiency rating: 80 PLUS Platinum
- Power supply type: Config 1
- Slot role: Secondary (redundant)
- Weight: 2.6 lb (1.2 kg)
- Dimensions (H x W x D): 1.58 x 3.25 x 12.20 in. (40.1 x 82.55 x 309.9 mm)
- Compatible series: Cisco Catalyst 9300

FAQs

Q: Which switches is this power supply compatible with?
A: It is designed for Cisco Catalyst 9300 Series switches with Config 1 power supply slots.

Q: Can it be installed while the switch is running?
A: Yes. The module is hot-swappable and field-replaceable, so it can be fitted without powering the switch down.

Q: What does the secondary designation mean?
A: It is intended for the second power supply slot, where it provides power redundancy or adds to the available PoE budget alongside the primary supply.

Q: What type of power input does it use?
A: It uses an AC input with autoranging voltage and delivers up to 715 W of output power.

Q: How much PoE budget will it provide on my switch?
A: The PoE budget depends on the specific Catalyst 9300 model and the power supply configuration. Refer to the Catalyst 9300 data sheet for the figure for your model.
