Cisco PWR-C1-440WDC | Catalyst 3850/3650 440W DC Power Supply, -36 to -72 VDC
SKU:PWR-C1-440WDC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

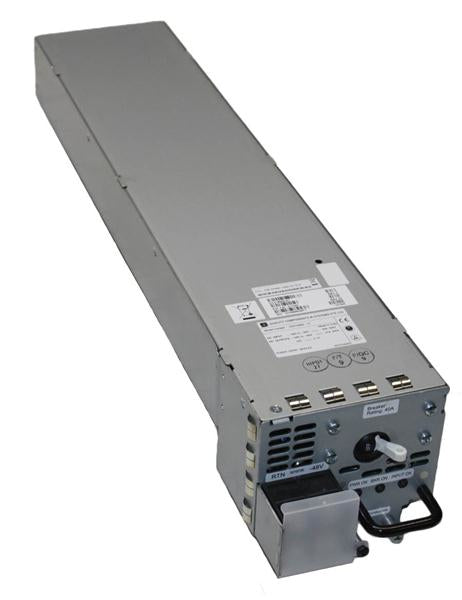

The PWR-C1-440WDC is a hot-swappable 440W DC power supply module (Config 1) for Cisco Catalyst 3850 and Catalyst 3650 Series switches. It suits DC-powered telco, central office and NEBS-style environments, or any site that needs DC-fed redundant power for access and aggregation switching with PoE.
The module accepts a -36 to -72 VDC input through a terminal strip and delivers -56V at 7.86A, for a rated maximum of 440W. Input current is under 8A at -72 VDC and under 16A at -36 VDC. On a Catalyst 3850 with DC supplies, the PoE budget for a 24-port PoE model is 220W with one supply or 660W with two, and a 48-port PoE model provides 185W with one supply or 625W with two. The supply measures 1.58 x 3.25 x 12.20 in and weighs 2.6 lb (1.2 kg).
It fits Catalyst 3850 models, except the 48-port 10G SFP+ WS-C3850-48XS, which uses dedicated 750W supplies, and Catalyst 3650 switches. AC and DC supplies can be mixed in the two power supply slots, including the PWR-C1-350WAC, PWR-C1-715WAC and PWR-C1-1100WAC.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, redundant plug-in module design
- Supports PoE/PoE+ delivery to connected devices
- AC and DC supplies can be mixed in the two power supply slots
- NEBS-oriented DC operating environment ratings for telco and central office use
- Orderable as a spare (PWR-C1-440WDC=) for Catalyst 3850 models
- DC terminal strip input for -48 VDC style power plants
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power supply rated maximum: 440W
- Input voltage range: -36 VDC to -72 VDC
- Input current: <8A at -72 VDC, <16A at -36 VDC
- Output rating: -56V at 7.86A
- Total output BTU: 1517 BTU/hr
- Output holdup time: >2 ms at -48 VDC
- Input connection: Terminal strip
- Power cord rating: 20A at 100 VDC
- Dimensions (H x W x D): 1.58 x 3.25 x 12.20 in
- Weight: 2.6 lb (1.2 kg)
- Operating temperature: -5 to 45 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90% noncondensing
- Altitude: 3000 m up to 45 C
- MTBF: calculated >300,000 hr (Telcordia SR-332)
- EMI/EMC: FCC Part 15 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS 3548 Class A, VCCI Class A
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE
FAQs
Q: Which switches does the PWR-C1-440WDC fit?
A: It fits Catalyst 3850 Series models, except the 48-port 10G SFP+ WS-C3850-48XS which uses dedicated 750W supplies, and Catalyst 3650 Series switches.
Q: Can I mix this DC supply with an AC supply?
A: Yes. AC and DC supplies can be mixed in the two power supply slots, including the PWR-C1-350WAC, PWR-C1-715WAC and PWR-C1-1100WAC.
Q: What DC input voltage does it need?
A: It accepts -36 to -72 VDC through a terminal strip. Input current is under 8A at -72 VDC and under 16A at -36 VDC.
Q: How much PoE budget does it provide on a Catalyst 3850?
A: A 24-port PoE model has 220W with one DC supply or 660W with two. A 48-port PoE model has 185W with one or 625W with two. The 24-port mGig UPOE model has 360W and the 48-port mGig UPOE model 410W, both with two supplies.
Q: Is the supply hot-swappable?
A: Yes. It is a hot-plug redundant module, so it can be replaced in a running switch when a second supply is installed.
