Cisco

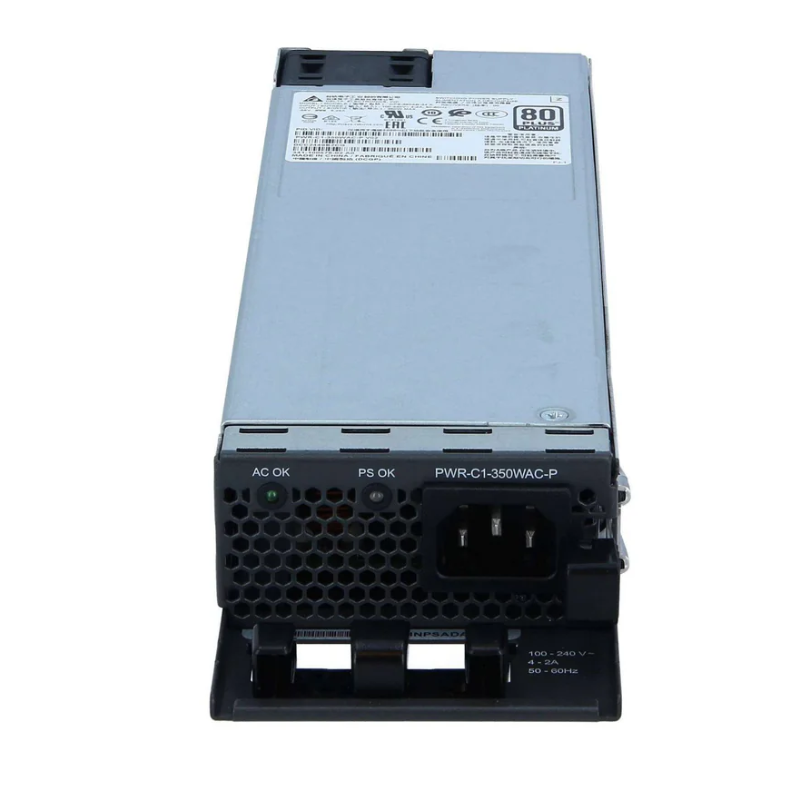

Cisco PWR-C1-350WAC-P | Catalyst 9300 350W AC Power Supply, 80+ Platinum

SKU:PWR-C1-350WAC-P

$739.75 inc. GST
$672.50 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 350W AC power supply is a hot-swappable, field-replaceable module for the Catalyst 9300 Series, covering the C9300 and C9300L families. It is the default primary supply on data-only (non-PoE) C9300-24T, C9300-48T, C9300L-24T and C9300L-48T switches, and can also be fitted as a secondary supply for redundancy.

This variant carries 80+ Platinum efficiency certification, which separates it from the standard PWR-C1-350WAC. It delivers 350W maximum output at -56V and 6.25A from a 100-240 VAC autoranging input at 47-63 Hz. Input power is approximately 395W (1348 BTU per hour) at 100 VAC. It provides no PoE budget, so it suits data-only switch models rather than PoE deployments.

Recommended cable: Blue Cable Co® C14 to C15 power cable. Its slim C15 plug fits this power supply’s cable management bracket.

Power supplies are common across the Catalyst 9300 Series. In a dual-supply configuration it can be paired with a 350W, 715W, 1100W or 1900W secondary supply, depending on the switch model, and a single supply must be installed in bay 1. No licence is required for the power supply itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power supply module
- Supports dual redundant power supply configurations in Catalyst 9300 switches
- 80+ Platinum-rated high efficiency
- Autoranging worldwide AC input from 100 to 240 VAC
- Common power supply platform across the Catalyst 9300 Series
- Can be combined with a 350W, 715W, 1100W or 1900W secondary supply depending on switch model

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Maximum output power: 350W
- Input voltage and frequency: 100 to 240 VAC autoranging, 47-63 Hz
- Input current: 4-2 A
- Output rating: -56V at 6.25A
- Efficiency certification: 80+ Platinum
- Total input BTU: 1348 BTU per hour, 395W (at 100 VAC)
- Total output BTU: 1194 BTU per hour, 350W
- Dimensions (H x D x W): 40.1 x 82.55 x 309.9 mm (1.58 x 3.25 x 12.20 in), including extraction handle and keying feature
- Weight: 1.2 kg (2.3 lb)
- Operating temperature: -5 to 45 C (23 to 113 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90% (non-condensing)
- Operating altitude: up to 3000 m (10,000 ft)
- Storage altitude: up to 4500 m (15,000 ft)
- PoE power as primary supply: none

Also Known As

PWR-C1-350WAC-P=, PWR-C1-350WAC-P-M, PWR-C1-350WAC-P/2, WR-C1-350WAC-P-RF

FAQs

Q: Which switches use the PWR-C1-350WAC-P?
A: It is the default power supply for the C9300-24T, C9300-48T, C9300L-24T-4G, C9300L-24T-4X, C9300L-48T-4G and C9300L-48T-4X. It can also be used as a secondary supply in other Catalyst 9300 models.

Q: Does this power supply provide PoE?
A: No. As the primary supply it provides no PoE budget, so it is intended for data-only Catalyst 9300 and 9300L models.

Q: How does it differ from the PWR-C1-350WAC?
A: Both deliver 350W, but the PWR-C1-350WAC-P carries 80+ Platinum efficiency certification, while the PWR-C1-350WAC does not.

Q: Can I run it in a redundant power configuration?
A: Yes. It is hot-swappable and supports dual power supply operation, with a single supply required in bay 1. It can be paired with a 350W, 715W, 1100W or 1900W secondary supply depending on the switch model.

Q: Does it need a licence?
A: No licence is required for the power supply itself.
