Cisco

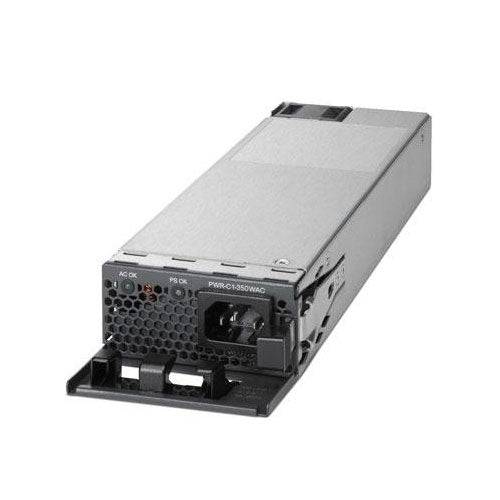

Cisco PWR-C1-350WAC | Config 1 350W AC Hot-Swappable Power Supply

SKU:PWR-C1-350WAC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C1-350WAC is a hot-swappable 350W AC plug-in power supply module (Config 1) for Cisco Catalyst 3850 and Catalyst 9300 and 9300L switches. It is the default power supply on data-only models, and it suits primary or redundant AC power in access and campus switching.

The module accepts an autoranging 100-240 VAC input at 50-60 Hz and delivers up to 350W, rated at -56 V and 6.25 A. Input current is 4-2 A, with total input power of about 398W. It provides no PoE budget on its own, so it suits data-only switches. On PoE models it can be paired with a higher-wattage module to increase the available PoE budget.

Recommended cable: Blue Cable Co® C14 to C15 power cable. Its slim C15 plug fits this power supply’s cable management bracket.

The module can be replaced without powering down the switch and supports dual redundant power supply operation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module that can be replaced without powering down the switch
- Supports dual redundant power supply operation
- Autoranging AC input (100-240 VAC) for deployment in any region
- Default power supply for data-only Catalyst 3850 and 9300/9300L models
- Can be paired with a higher-wattage module to increase PoE budget on PoE models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Maximum output power: 350W
- Input voltage: 100-240 VAC, autoranging
- Input frequency: 50-60 Hz
- Input current: 4-2 A
- Output rating: -56 V at 6.25 A
- Total input power: approximately 398W
- Total input heat load: 1357 BTU per hour
- Total output heat load: 1194 BTU per hour at 350W
- Available PoE power: None
- Form factor: Plug-in power supply module, hot-swappable
- Redundancy: Supports dual redundant power supplies
- Dimensions (H x W x D): 40.1 x 82.55 x 310.1 mm (1.58 x 3.25 x 12.21 in.)
- Weight: 1.1-1.2 kg (2.4-2.6 lb)
- Storage temperature: -40 to 70 C
- Storage altitude: 15,000 ft

Also Known As

PWR-C1-350WAC=, PWR-C1-350WAC-RF, PWR-C1-350WAC/2

FAQs

Q: Which switches use the PWR-C1-350WAC?
A: It is used in the Catalyst 3850 Series (including the 24 and 48-port data models) and the Catalyst 9300 and 9300L Series. The Catalyst 9300X Series uses the PWR-C1-350WAC-P variant instead.

Q: Does this power supply provide PoE?
A: No. It provides no PoE budget on its own and is the default power supply on data-only models. PoE models need a higher-wattage module to supply PoE power.

Q: Can it be used for power supply redundancy?
A: Yes. It supports dual redundant power supply operation, and it can also be installed as a secondary power supply alongside a higher-wattage module.

Q: What input voltage does it need?
A: It accepts an autoranging 100-240 VAC input at 50-60 Hz, so it works on standard mains supplies without any voltage selection.

Q: Can it be replaced while the switch is running?
A: Yes. It is a hot-swappable plug-in module and can be replaced without powering down the switch.
