Cisco

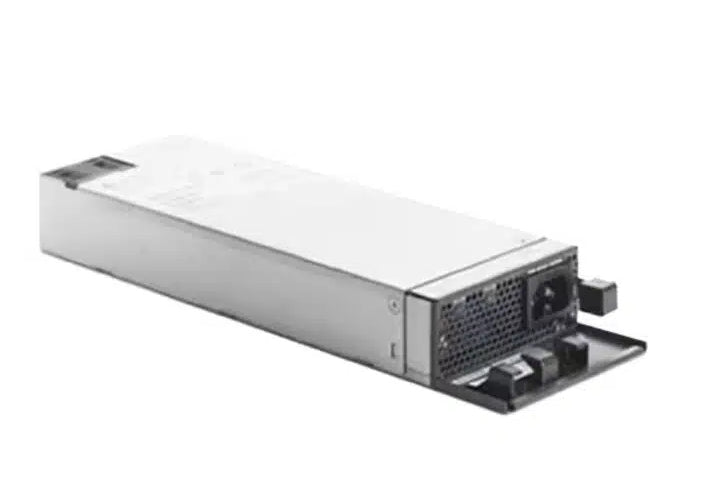

Cisco PWR-C1-1900WHV-T | Catalyst 9300 1900W HVAC/HVDC Titanium Power Supply

PWR-C1-1900WHV-T

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C1-1900WHV-T is a 1900 W internal power supply module for Catalyst 9300 and 9300X Series switches. It suits data centre and enterprise campus access or aggregation deployments that use high-voltage AC or DC distribution and need Titanium-class efficiency alongside high PoE budgets.

The module accepts high-voltage AC or high-voltage DC input (HVAC/HVDC) through a dedicated power cord, separate from the standard AC cords used by the Platinum PWR-C1-1900WAC-P. It is 80 PLUS Titanium certified, weighs 3.25 lb (1.47 kg) and has an extraction handle, release latch and keying feature. Front-panel AC OK and PS OK LEDs show input and output status. The switch holds two modules, or one module plus a blank cover, and Platinum-certified, Titanium-certified and non-certified modules can be mixed in the same switch.

It is supported on Catalyst 9300 and 9300X switches such as the C9300X-48HX, C9300X-24HX, C9300-48H, C9300-24H and C9300-48UN. It is not for the Meraki C9300-M, which uses the PWR-C1-xxxxWAC-P-M modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 80 PLUS Titanium efficiency to reduce wasted power and cooling load
- Accepts both HVAC and HVDC input for data centres with high-voltage distribution
- Hot-swappable, supports redundant two-module operation in the switch
- Can be mixed with Platinum-certified or non-certified modules in the same switch
- Supplies the PoE budget on PoE-capable Catalyst 9300 and 9300X models
- AC OK and PS OK front-panel LEDs for quick status checks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Maximum output power: 1900 W
- Input type: HVAC / HVDC (high-voltage AC or DC)
- Efficiency certification: 80 PLUS Titanium
- Weight: 3.25 lb (1.47 kg)
- Form: hot-swappable internal power supply module
- Supported switch series: Catalyst 9300 and 9300X
- Operating temperature: -5 to 45 C up to 1500 m
- Operating temperature: -5 to 40 C up to 3000 m
- Front-panel indicators: AC OK LED, PS OK LED
- Mechanical: extraction handle, release latch and keying feature
- Module slots in switch: two modules, or one module plus a blank cover

FAQs

Q: Which switches does the PWR-C1-1900WHV-T work with?
A: It works with Catalyst 9300 and 9300X Series switches, for example the C9300X-48HX, C9300X-24HX, C9300-48H, C9300-24H and C9300-48UN. It is not for the Meraki C9300-M, which uses the PWR-C1-xxxxWAC-P-M modules.

Q: What input does this power supply need?
A: It takes high-voltage AC or high-voltage DC (HVAC/HVDC) input through a dedicated power cord. This differs from the standard AC cords used by the Platinum PWR-C1-1900WAC-P.

Q: How does it differ from the PWR-C1-1900WAC-P?
A: Both deliver 1900 W. The WHV-T is 80 PLUS Titanium certified and uses HVAC/HVDC input, while the WAC-P is Platinum certified and uses standard AC input.

Q: Can I mix it with other power supply modules in the same switch?
A: Yes. Platinum-certified, Titanium-certified and non-certified modules can be mixed in one switch. The switch holds two modules, or one module plus a blank cover.

Q: Is it hot-swappable?
A: Yes. It is a hot-swappable internal module and supports redundant two-module operation in the switch.
