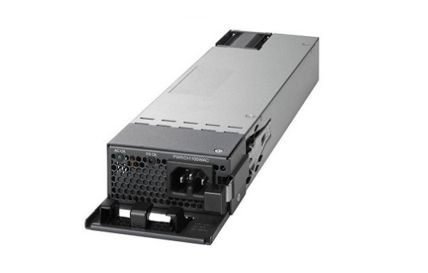

Cisco PWR-C1-1900WAC-P | Catalyst 9300 1900W AC Power Supply, 80+ Platinum
SKU:PWR-C1-1900WAC-P
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The PWR-C1-1900WAC-P is a 1900W AC power supply module with 80 PLUS Platinum efficiency for Cisco Catalyst 9300 and 9300X series switches. It is a hot-swappable, field-replaceable Config 1 module that can serve as a primary or redundant power supply, and it suits enterprise campus and branch access or stackable switches that need high PoE budgets such as UPOE, UPOE+ and multigigabit PoE.
The module delivers a maximum of 1900W on a 200-240 VAC input (12A maximum) and is limited to 1500W on a 115-127 VAC input (16A maximum). Output is -56 V at 33.92A on 230 V input and -56 V at 26.78A on 115 V input. Input frequency is 47-63 Hz and the input connector is IEC 60320 C22. At full load the total input power draw is about 2022W at 230 V. The module measures 40.1 x 82.55 x 348.2 mm and weighs 1.5 kg. AC OK and PS OK LEDs and a power cord retainer are included in the design.
This power supply fits Catalyst 9300 and 9300X models including C9300X-48HX, C9300X-48HXN, C9300X-24HX, C9300-48H, C9300-24H, C9300-48UN, C9300-48UXM, C9300-24UX, C9300-48U and C9300-24U. It can share a chassis with PWR-C1-1900WHV-T in compatible switches. No software licence or subscription is required.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable and field-replaceable plug-in module
- Can be deployed as a redundant power supply (N+1 / N+N) in Catalyst 9300 and 9300X switches
- 80 PLUS Platinum certified high efficiency
- Delivers up to 1900W for high-power PoE models such as C9300X-48HX, C9300-48H and C9300-48U
- Power cord retainer, AC OK and PS OK status LEDs
- Interchangeable in the same slot with PWR-C1-1900WHV-T in compatible chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Maximum output power: 1900W at 200-240 VAC, 1500W at 115-127 VAC
- Input voltage and frequency: 200-240 VAC autoranging, 47-63 Hz (1900W); 115-127 VAC autoranging, 47-63 Hz (1500W)
- Input current: 12A maximum (230 V), 16A maximum (115 V)
- Output rating: -56 V at 33.92A (1900W), -56 V at 26.78A (1500W)
- Total input BTU: 6899 BTU/hr, 2022W (230 V); 5565 BTU/hr, 1631W (115 V)
- Total output BTU: 6483 BTU/hr at 230 V; 5118 BTU/hr at 115 V
- Efficiency certification: 80 PLUS Platinum
- Input connector: IEC 60320 C22
- Form factor: hot-swappable, field-replaceable plug-in module (Config 1)
- Dimensions (H x W x D): 40.1 x 82.55 x 348.2 mm (1.58 x 3.25 x 13.7 in)
- Weight: 1.5 kg (3.4 lb)
FAQs
Q: Does this power supply need a licence?
A: No. It is a hardware module with no software licence or subscription.
Q: What input voltage is required for the full 1900W?
A: The full 1900W needs a 200-240 VAC input at up to 12A. On 115-127 VAC input the output is limited to 1500W at up to 16A.
Q: Which switches does it work with?
A: Catalyst 9300 and 9300X series switches, including C9300X-48HX, C9300X-48HXN, C9300X-24HX, C9300-48H, C9300-24H, C9300-48UN, C9300-48UXM, C9300-24UX, C9300-48U and C9300-24U.
Q: Can it be used as a redundant power supply?
A: Yes. It can be used as a primary or redundant module (N+1 / N+N) in compatible Catalyst 9300 and 9300X switches, and it can share a chassis with PWR-C1-1900WHV-T.
Q: How does this model differ from the Meraki variant?
A: PWR-C1-1900WAC-P is the standard Catalyst module. The Meraki variant for Catalyst 9300-M uses the part number PWR-C1-1900WAC-P-M.
