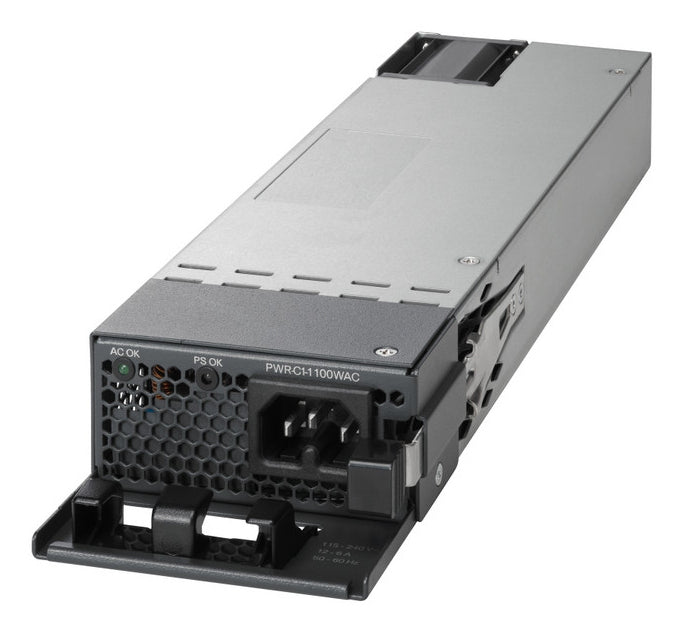

Cisco PWR-C1-1100WAC-UP | Catalyst 9300 1100W AC Platinum Power Supply, Config 1

PWR-C1-1100WAC-UP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-C1-1100WAC-UP is a hot-swappable 1100W AC power supply module for Cisco Catalyst 9300 Series switches. It is the upgrade option used to replace the default AC power supply with a more efficient 80+ Platinum unit, and suits access and stackable switch deployments that need a higher PoE budget or added power redundancy.

The module delivers up to 1100W of output at -56V and 19.64A DC to the switch. AC input is autoranging from 115 to 240 VAC at 47 to 63 Hz, with an input current of 12 to 6A and an input draw of approximately 1215W at 115 VAC. As a Config 1 upgrade supply it can provide up to 822W of PoE power on a C9300-48P when fitted as the primary supply. No licence is required for the power supply itself.

It works with Catalyst 9300 models including the C9300-24P/48P, C9300-24U/48U, C9300-24H/48H, C9300-48UN, C9300-24UX, C9300-48UXM and C9300X-48HX/24HX, and can be paired with a 350W, 715W or 1100W secondary supply. Use only Cisco-approved AC power cords, as some cords are not rated for 1100W supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable power supply module for Catalyst 9300 Series switches
- 80+ Platinum efficiency helps lower operating power costs
- Upgrade option to replace the default AC power supply with a 1100W unit
- Autoranging AC input from 115 to 240 VAC
- Supports a higher PoE budget on Catalyst 9300 PoE and UPOE models
- Supports redundant power configurations with a secondary supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Maximum output power: 1100W
- Output rating: -56V at 19.64A
- Input voltage: 115 to 240 VAC, autoranging
- Input frequency: 47 to 63 Hz
- Input current: 12 to 6A
- Efficiency rating: 80+ Platinum
- Total input: 4147 BTUs per hour, 1215W (at 115 VAC)
- Total output: 3754 BTUs per hour, 1100W
- Dimensions (H x D x W): 40.1 x 82.55 x 348.2 mm
- Weight: approx. 1.4 kg
- Operating temperature: -5 to 45 C up to 1500 m; -5 to 40 C up to 3000 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 90% (non-condensing)
- Altitude: up to 3,000 m at up to 40 C

FAQs

Q: Does the PWR-C1-1100WAC-UP need a licence?
A: No. The power supply itself does not require a licence or subscription.

Q: Which switches does it work with?
A: It is designed for Cisco Catalyst 9300 Series switches, including the C9300-24P/48P, C9300-24U/48U, C9300-24H/48H, C9300-48UN, C9300-24UX, C9300-48UXM and C9300X-48HX/24HX models.

Q: What AC input does it accept?
A: It accepts 115 to 240 VAC autoranging at 47 to 63 Hz, with an input current of 12 to 6A. Use only Cisco-approved AC power cords, as some cords are not rated for 1100W supplies.

Q: How much PoE power can it provide?
A: It supplies up to 1100W to the switch. For example, a C9300-48P can deliver up to 822W of PoE power with this module as its primary supply.

Q: Can it be used with a second power supply?
A: Yes. It can be combined with a 350W, 715W or 1100W secondary power supply for redundancy.
