Cisco PSU1.4KW-ACPI | 6000 1450W AC Power Supply, Port-Side Intake
SKU:PSU1.4KW-ACPI
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

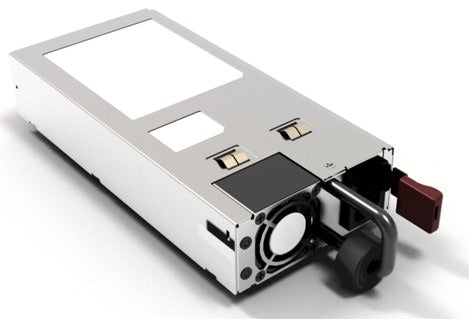

The PSU1.4KW-ACPI is a hot-swappable 1450W AC power supply module for the Cisco 6000 Series (Nexus Hyperfabric HF6100-32D) data centre switch. It suits replacement or redundant AC power in AI-ML fabric and data centre rack deployments where the cold aisle is at the port side.
This is the port-side air intake airflow variant. It accepts 90-264 VAC input at 47-63 Hz with a maximum input current of 14A, and delivers a 12V main output at 121A plus a 12V 3A standby output. Efficiency is 92% at 115 VAC and 94% at 230 VAC at 50% load, with an MTBF of 1,000,000 hours. Power enters through a C21 receptacle with a 16A power cord rating, and the unit is rated for a 5ms output holdup time.
Airflow direction must be the same for every power supply and fan module in the switch, so pair it with port-intake fan modules such as FAN-1RU-PI-V2. AC and DC power supplies cannot be mixed in one chassis. Two PSU slots support 1+1 redundancy, with each supply running at roughly 50% load in redundant mode.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable power module
- Two PSU slots support 1+1 redundancy, with each supply running at roughly 50% load in redundant mode
- Supports low-line (120V nominal) and high-line (220V nominal) AC input
- Green, red and amber status LED for power, failure and warning conditions
- Available in port-intake and port-exhaust airflow variants to match the chassis fan modules
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: PSU1.4KW-ACPI
- Power supply type: AC
- Maximum power rating: 1450W
- Input voltage range: 90-264 VAC
- Input frequency: 47-63 Hz
- Input current: 14A max at 90 VAC and 180 VAC
- Main output: 12V, 121A
- Standby output: 12V, 3A
- Efficiency: 92% at 115 VAC, 94% at 230 VAC (50% load)
- Output holdup time: 5ms
- Input receptacle: C21
- Power cord rating: 16A
- MTBF: 1,000,000 hours
- Airflow: port-side air intake
- Form factor: hot-swappable field replaceable unit
FAQs
Q: Which switch does the PSU1.4KW-ACPI fit?
A: It is designed for the Cisco 6000 Series, specifically the Nexus Hyperfabric HF6100-32D data centre switch.
Q: What airflow direction does this power supply use?
A: It is the port-side air intake variant. All power supply and fan modules in the switch must use the same airflow direction, so pair it with port-intake fans such as FAN-1RU-PI-V2.
Q: Can I run it alongside a DC power supply?
A: No. AC and DC power supplies cannot be mixed in one chassis. The related options in the family are PSU2KW-ACPI, PSU2KW-ACPE, PSU2KW-DCPI and PSU2KW-DCPE.
Q: How does it differ from the PSU1.4KW-ACPE?
A: Both are 1.4 kW AC supplies, but the PSU1.4KW-ACPI uses port-side air intake airflow while the PSU1.4KW-ACPE is the port-exhaust variant.
Q: Does it need a licence or subscription?
A: No. The power supply itself requires no licence.
