Cisco PSU1.4KW-ACPE | 1400W AC Power Supply, Port-Side Exhaust, Hot-Swap
SKU:PSU1.4KW-ACPE
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

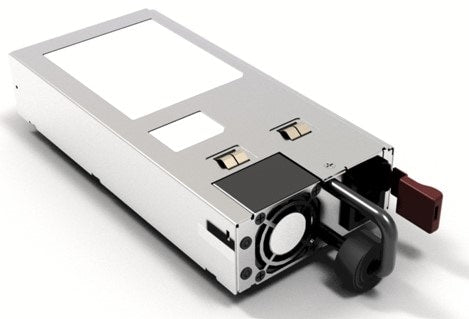

This 1400W AC power supply module (1450W maximum rating) is a hot-swappable, field-replaceable unit with port-side exhaust airflow. It is the default power supply for the Cisco HF6100-32D Hyperfabric switch and is also supported in Cisco 8200 series routers, making it suited to data centre and AI/ML fabric leaf and spine switching as well as 1RU routing deployments that need redundant AC power.
The module accepts 90-264Vac at 47-63Hz through a C21 input receptacle, with a maximum input current of 14A and a 16A power cord rating. Output is a main 12V rail at 121A plus a 12V 3A standby rail, with 5ms output holdup time. Efficiency is 92% at 115Vac and 94% at 230Vac at 50% load. In Cisco 8200 routers it delivers 1000W at low line (100-127V AC) and 1450W at high line (200-240V AC). This is the port-side exhaust version, which differs from the PSU1.4KW-ACPI port-intake model.
It works with the Cisco HF6100-32D switch and the Cisco 8201, 8202, 8201-32FH and 8201-24H8FH routers. Airflow direction must match across all power supply and fan modules, so pair it with the port-side exhaust fan FAN-1RU-PE-V2. AC and DC power supplies must not be mixed in one chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable, field-replaceable unit for replacement without powering down the system
- Supports 1+1 redundancy, with each supply running at roughly 50% of capacity in redundant mode
- A single supply can power the whole system if its partner fails
- Status LEDs show power OK (green), failure (red) and warning (amber)
- Supports low-line (120V nominal) and high-line (220V nominal) AC input
- Default power supply for the Cisco HF6100-32D Hyperfabric switch
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power rating: 1400W AC (1450W maximum)
- Airflow: Port-side exhaust
- Input voltage and frequency: 90-264Vac, 47-63Hz
- Input current: 14A maximum at 90Vac and at 180Vac
- Efficiency: 92% at 115Vac, 94% at 230Vac (50% load)
- Main output: 12V, 121A
- Standby output: 12V, 3A
- Output holdup time: 5ms
- Input receptacle: C21
- Power cord rating: 16A
- MTBF: 1,000,000 hours
- Cisco 8200 low line (100-127V AC): 12A maximum input, 1000W output
- Cisco 8200 high line (200-240V AC): 9A maximum input, 1450W output
- Form: Hot-swappable field-replaceable unit
FAQs
Q: What is the difference between PSU1.4KW-ACPE and PSU1.4KW-ACPI?
A: PSU1.4KW-ACPE has port-side exhaust airflow, while PSU1.4KW-ACPI has port-side intake airflow. The electrical specifications are the same, so choose the one that matches the airflow of your chassis.
Q: Which Cisco systems does this power supply work with?
A: It is the default power supply for the Cisco HF6100-32D Hyperfabric switch and is supported in the Cisco 8201, 8202, 8201-32FH and 8201-24H8FH routers.
Q: Can I mix it with DC power supplies or different airflow modules?
A: No. AC and DC power supplies must not be mixed in one chassis, and airflow direction must match across all power supply and fan modules. Pair this port-exhaust supply with the port-exhaust fan FAN-1RU-PE-V2.
Q: What AC input does it need?
A: It accepts 90-264Vac at 47-63Hz through a C21 inlet, with a maximum input current of 14A and a 16A power cord rating.
Q: How much power does it deliver in a Cisco 8200 router?
A: At low line (100-127V AC) it delivers 1000W, and at high line (200-240V AC) it delivers 1450W.
Q: Does it support redundant power?
A: Yes. It supports 1+1 redundancy, and if one supply fails the other can power the whole system on its own.
