Cisco PSU-80W-AC | Catalyst Micro 80W AC Power Adapter, 53V/1.5A, 62W PoE
SKU:PSU-80W-AC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

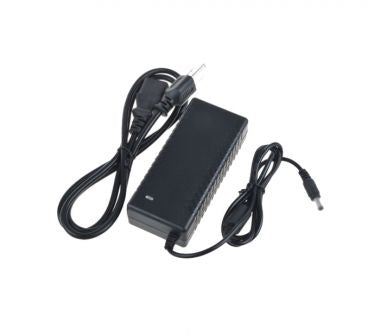

The PSU-80W-AC is an 80W AC/DC external power adapter for the Cisco Catalyst Micro Switch family. It is the original PWR-ADPT SKU and suits FTTx, wall-jack, DIN rail and desktop deployments where the switch needs to power downstream PoE devices such as access points, cameras and phones.
The adapter accepts 100-240 VAC at 50/60 Hz and delivers 53 VDC at up to 1.5 A. On the CMICR-4PS and CMICR-4PC models it provides 62W of available PoE power. On the CMICR-4PT desktop model, with this adapter as the sole power source, the switch offers 62W of PoE passthrough, or 55W for USB-C PD or shared PoE and USB-C. The wide-range input supports global deployment. The adapter itself needs no licence.
It is designed for the Cisco Catalyst Micro Switches CMICR-4PS, CMICR-4PC and CMICR-4PT. The related PSU-L-80W-ADPT and PSU-L-74W-ADPT adapters are also listed within the same family.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Powers Cisco Catalyst Micro Switches CMICR-4PS, CMICR-4PC and CMICR-4PT
- Delivers up to 62W of PoE budget to downlink ports
- Wide-range 100-240 VAC input suits global deployment
- Fixed 53 VDC output at up to 1.5 A
- On the CMICR-4PT desktop model, combines with the uplink PD port (PoE+, UPOE or 802.3bt) to increase outgoing PoE and USB-C power
- No licence required for the adapter
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: PSU-80W-AC
- Type: 80W AC/DC external power adapter
- Original SKU: PWR-ADPT
- Input power: 80 W
- Input voltage: 100-240 VAC nominal (85-264 VAC range)
- Line frequency: 50/60 Hz nominal (47-63 Hz range)
- Output voltage: 53 VDC
- Output voltage at 0.7 A load: 53.5 V
- Maximum output current: 1.5 A
- Minimum output current: 0 A
- Set tolerance: ±1% (52.965 to 54.035 VDC)
- Total error: ±2%
- Available PoE power on CMICR-4PS / CMICR-4PC: 62 W
- CMICR-4PT as sole source: 62 W PoE passthrough, 55 W for USB-C PD or shared PoE and USB-C
- Connection: AC/DC adapter with IEC plugs for 100-240 VAC inputs
FAQs
Q: Which switches does the PSU-80W-AC power?
A: It powers the Cisco Catalyst Micro Switches CMICR-4PS and CMICR-4PC (wall-jack and DIN rail models) and the CMICR-4PT desktop model.
Q: How much PoE power does it provide?
A: On the CMICR-4PS and CMICR-4PC it provides 62W of available PoE power. On the CMICR-4PT with this adapter as the only source, it offers 62W of PoE passthrough, or 55W for USB-C PD or shared PoE and USB-C.
Q: What input and output does the adapter use?
A: Input is 100-240 VAC at 50/60 Hz. Output is 53 VDC at up to 1.5 A, which is 80W.
Q: Does the adapter need a licence?
A: No. The adapter needs no licence. The Micro Switches it powers ship with LAN Lite software, and Cisco DNA licensing is optional for the switch.
Q: Are there related adapters for the Micro Switch family?
A: Yes. The PSU-L-80W-ADPT (53V/1.5A) and PSU-L-74W-ADPT (74W) are related adapters in the same family. The PSU-80W-AC is the original PWR-ADPT SKU.
