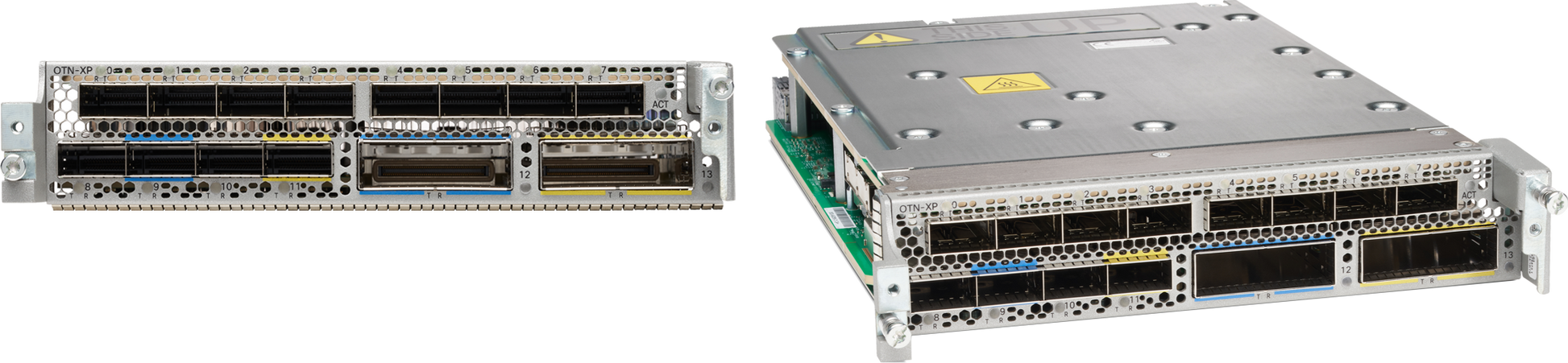

• Cisco NCS1K4-OTN-XP OTN transponder with silver server rack
1 1

Cisco

Cisco NCS1K4-OTN-XP | OTN transponder | 4x DD-QSFP56, 8x QSFP28, 2x CFP2-DCO | Coherent 100/200/400G

NCS1K4-OTN-XP

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density OTN transponder/muxponder module for the NCS 1004, combining QSFP28/QSFP56 client ports with dual coherent CFP2-DCO line interfaces to deliver flexible 100/200/400G wavelength transport across DWDM optical networks.

Features

- Mixed 100G/200G client flexibility
- Dual coherent CFP2-DCO line interfaces for long-reach DWDM
- High port density within the NCS 1004 system
- Operates in transponder or muxponder modes
- Optics-pluggable design protects investment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: NCS 1004 expansion module (OTN transponder/muxponder)
- Client interfaces: 8x QSFP28 (up to 100G per port)
- Additional client interfaces: 4x DD-QSFP56 (up to 200G per port)
- Line interfaces: 2x CFP2-DCO coherent (100/200/400G line rates; optics required)
- Optical line: Tunable C-band DWDM via CFP2-DCO pluggables
- Client optics support: 100GBASE SR4/LR4/ER4/CWDM4 (QSFP28) and 200G FR4/DR4-class (QSFP56), subject to optic selection
- OTN capabilities: Transponder and muxponder modes, OTN mapping and FEC (availability may depend on software/license)
- Management: Integrated control via the NCS 1004 system
- Typical applications: Aggregate 100G/200G clients to 200G/400G line transport
- Transceivers: QSFP28/QSFP56/CFP2-DCO sold separately

FAQs

Q: Are optics included with the module?
A: No. QSFP28, QSFP56, and CFP2-DCO transceivers are sold separately.

Q: Can I mix 100G and 200G clients at the same time?
A: Yes. Ports can be populated independently; overall capabilities depend on software configuration.

Q: What line-side reach is supported?
A: Reach depends on the selected CFP2-DCO modules, channel plan, and optical design of the network.

Q: Do I need additional licenses?
A: Some features and line rates may require software licenses. Verify entitlements for your target release.

Q: Is this module compatible with other chassis?
A: It is designed for the NCS 1004 platform.
