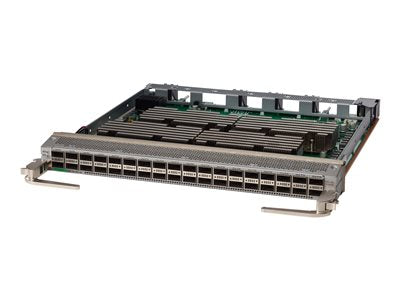

• Cisco N9K-X9736C-FX 36-port 100G QSFP28 switch
1 1

Cisco

Cisco N9K-X9736C-FX | Nexus 9500 36-Port 100G QSFP28 Line Card, 7.2 Tbps

N9K-X9736C-FX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-X9736C-FX is a high-density line card for Nexus 9500 Series modular switches, delivering 36 ports of 100 Gigabit Ethernet with QSFP28 interfaces and up to 7.2 Tbps throughput per slot. Designed for hyperscale data centers and cloud environments, it supports flexible breakout to 50G, 40G, 25G, and 10G speeds. All ports feature hardware-based MACsec encryption for end-to-end security, while the LS1800FX ASIC ensures low-latency forwarding and full Layer 2/Layer 3 capabilities with NX-OS and ACI support.

Features

High-density 100G connectivity with 36 QSFP28 ports per line card
- Up to 7.2 Tbps throughput per slot for demanding data center workloads
- Hardware-based MACsec encryption on all ports for secure Layer 2 communications
- Flexible port breakout supporting 50G, 40G, 25G, 10G, and 1G speeds
- Four Cisco LS1800FX ASICs delivering low-latency, wire-speed forwarding
- Fifth fabric module connector for maximum bandwidth in homogeneous configurations
- Full Layer 2 and Layer 3 feature set with NX-OS operating system
- Native ACI support for policy-driven automation and VXLAN fabric integration
- Hot-swappable design for zero-downtime maintenance and scalability
- 160 MB packet buffer for deep queuing and burst absorption
- Forwarding rate up to 1.2 billion packets per second
- Compatible with Nexus 9500 four-slot, eight-slot, and sixteen-slot chassis
- Support for advanced data center protocols including VXLAN, EVPN, and FabricPath
- Energy-efficient design optimized for modern hyperscale environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

36 x 100 Gigabit Ethernet QSFP28 ports
- Port speed support: 100G, 50G (2x), 40G, 25G (4x), 10G (4x), 1G per port
- Throughput: Up to 7.2 Tbps per slot with 5 fabric modules; 3.6 Tbps with 5 fabrics and mixed line cards
- Forwarding rate: Up to 1.2 Bpps (billion packets per second)
- Switching fabric bandwidth: 3.2 Tbps with 4 fabric modules, 3.6 Tbps with 5 fabric modules (homogeneous 9736C-FX/FX3 chassis)
- Packet buffer: 160 MB
- ASIC: Four Cisco LS1800FX ASICs with advanced encryption
- MACsec: Hardware-based 256-bit AES encryption on all ports at line rate
- Compatibility: Cisco Nexus 9500 Series (N9K-C9504, N9K-C9508, N9K-C9516) with FM-E, FM-E2, FM-G fabric modules
- Operating modes: NX-OS and ACI (Application Centric Infrastructure)
- Layer 2 and Layer 3 switching with VXLAN support
- Hot-swappable, front-accessible design
- Weight: 14.6 lb (6.62 kg)
- License required: Transport Services License (L-N9K-X9700TX)

FAQs

Q: What fabric modules are compatible with the N9K-X9736C-FX?
A: The N9K-X9736C-FX is compatible with Cisco Nexus 9500 fabric modules including FM-E, FM-E2, and FM-G. With five fabric modules installed in a homogeneous chassis (all 9736C-FX or 9736C-FX3 line cards), it delivers full 3.6 Tbps bandwidth per slot.

Q: Does this line card support port breakout configurations?
A: Yes, each 100G QSFP28 port supports flexible breakout configurations including 2x50G, 1x40G, 4x25G, 4x10G, and 1x1/10G, allowing you to scale port density based on application requirements.

Q: Is MACsec encryption available on all ports?
A: Yes, all 36 ports on the N9K-X9736C-FX feature hardware-based MACsec with 256-bit AES encryption at line rate, providing hop-by-hop security for sensitive data center traffic without performance impact.

Q: Can I mix this line card with other Nexus 9500 line cards?
A: Yes, the N9K-X9736C-FX can be mixed with EX, FX, FX3, and GX series line cards in the same Nexus 9500 chassis. However, in mixed configurations, the chassis supports a maximum of four fabric modules, and bandwidth per slot may be reduced to 6.4 Tbps.

Q: What licensing is required for this line card?
A: The N9K-X9736C-FX requires a Transport Services License (L-N9K-X9700TX) for operation. Additional feature licenses may be required for advanced capabilities depending on your NX-OS or ACI deployment.
