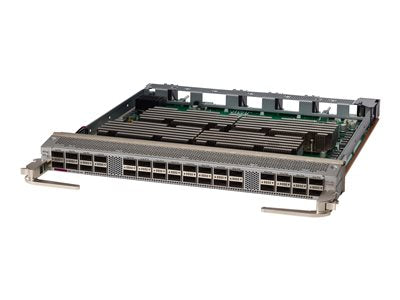

• Cisco N9K-X9732C-EX 32-port 100G QSFP28 switch module
1 1

Cisco

Cisco N9K-X9732C-EX | Nexus 9500 32-Port 100G Line Card, 6.4 Tbps, Cloud Scale

N9K-X9732C-EX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-X9732C-EX is a high-performance 32-port 100 Gigabit Ethernet QSFP28 line card designed for Cisco Nexus 9500 Series modular chassis. Built for data center aggregation and ACI spine deployments, this Cloud Scale line card delivers line-rate forwarding for all packet sizes with 6.4 Tbps switching capacity and 160 MB buffer. Supporting both NX-OS and ACI modes, it provides flexible breakout options including 40G, 50G, 25G, 10G, and 1G speeds per port, making it ideal for high-density, scalable data center fabrics.

Features

Cisco Cloud Scale ASIC architecture with four LSE forwarding engines
- Line-rate performance for all packet sizes with 160 MB buffer memory
- Support for VXLAN, EVPN, and data center overlay protocols
- Dual operating modes: NX-OS standalone and ACI fabric integration
- Flexible QSFP28 breakout to 50G, 40G, 25G, 10G, and 1G speeds
- Hot-swappable line card with port-side intake airflow
- Layer 2 and Layer 3 forwarding with advanced routing protocols
- Quality of Service (QoS) with eight hardware queues per port
- Multicast support with PIM, IGMP, and MLD protocols
- Virtual Port Channel (vPC) for Layer 2 high availability
- Equal-Cost Multi-Path (ECMP) routing for traffic distribution
- Comprehensive security features including ACLs and CoPP
- Python scripting and automation support with NX-API
- Telemetry streaming for real-time network analytics
- Compatible with Cisco Optics Compatibility Matrix transceivers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Port Configuration: 32 x 100 Gigabit Ethernet QSFP28 ports
- Port Speed Support: 1 x 100G, 2 x 50G, 1 x 40G, 4 x 25G, 4 x 10G, and 1 x 1G Ethernet per port
- Switching Capacity: 6.4 Tbps bidirectional
- Forwarding Rate: 9.52 billion packets per second (Bpps)
- Buffer Memory: 160 MB
- Performance: Line rate for all packet sizes
- ASIC Technology: Four Cisco Cloud Scale LSE ASICs
- Fabric Bandwidth: Up to 3.2 Tbps with four N9K-C95xx-FM-E fabric modules
- Operating Modes: NX-OS mode and ACI mode
- Chassis Compatibility: Nexus 9504, 9508, and 9516 (4-, 8-, and 16-slot)
- Fabric Module Requirement: Four 100-Gbps fabric modules (N9K-C95xx-FM-E) for maximum bandwidth
- Power Consumption: 673W typical, 632W idle
- Weight: 11.2 lb (5.08 kg)
- Airflow: Port-side intake (front-to-back)
- Standards Compliance: RoHS-6 compliant

FAQs

Q: What chassis models are compatible with the N9K-X9732C-EX line card?
A: The N9K-X9732C-EX is compatible with Cisco Nexus 9504, 9508, and 9516 chassis (4-, 8-, and 16-slot configurations). It requires four N9K-C95xx-FM-E 100-Gbps fabric modules for maximum bandwidth performance.

Q: Can the QSFP28 ports be broken out to lower speeds?
A: Yes, each QSFP28 port supports flexible breakout configurations including 1 x 100G, 2 x 50G, 1 x 40G, 4 x 25G, 4 x 10G, and 1 x 1G Ethernet, providing deployment flexibility for mixed-speed environments.

Q: What is the difference between NX-OS mode and ACI mode on this line card?
A: NX-OS mode operates as a traditional Cisco Nexus switch with standard CLI and management, while ACI mode enables integration with Cisco Application Centric Infrastructure for policy-based automation and centralized management through APIC controllers.

Q: What role is the N9K-X9732C-EX designed for in the data center?
A: This line card is designed for aggregation-switch or spine roles in data center networks. It provides line-rate forwarding for all packet sizes, making it ideal for high-throughput leaf-spine architectures and core aggregation deployments.

Q: Does this line card support MACsec encryption?
A: No, the N9K-X9732C-EX does not include MACsec encryption capabilities. For MACsec support on 100G line cards, consider the N9K-X9732C-FX or N9K-X9736C-FX models with encryption-enabled ASICs.
