Cisco N9K-X9624D-R2 | Nexus 9500 R-Series 24-Port 400G QSFP-DD Line Card, 16GB
SKU:N9K-X9624D-R2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

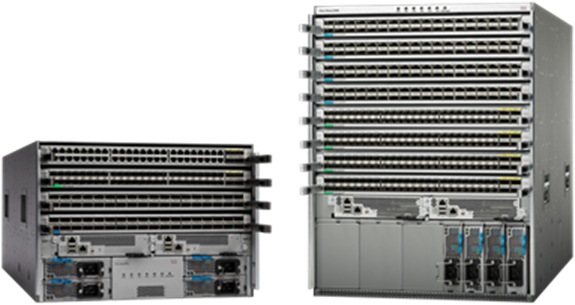

The Nexus 9500 R-Series 24-port 400/100 Gigabit Ethernet QSFP-DD line card is a deep-buffer module for the Nexus 9508 8-slot modular chassis. It suits high-density 400G and 100G data centre spine and core deployments, as well as WAN and DCI edge roles that need deep buffers and large routing tables.
Each card delivers up to 9.6 Tbps per slot across 24 QSFP-DD ports supporting 400G and 100G Ethernet. A 16 GB packet buffer handles bursty traffic, and the card scales to 750,000 IPv4 routes and 750,000 MAC address entries, with 250,000 multicast routes, 4096 VLANs and up to 1000 port channels. In an 8-slot chassis the platform reaches 76.8 Tbps in total. Typical power draw is 900 W, rising to 1180 W at maximum, and the card weighs 8.2 kg.
This card works only in the Nexus 9508 chassis and needs six N9K-C9508-FM-R2 fabric modules for maximum bandwidth, together with N9K-C9508-FAN2 fan trays. It requires the N9K-SUP-B+ supervisor module, and it is not supported with N9K-C9508-FM-R or N9K-C9504-FM-R fabric modules, so it is not suitable for the 4-slot chassis. It runs Cisco NX-OS.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Up to 9.6 Tbps per slot and 76.8 Tbps in the 8-slot chassis
- Deep buffering with a 16 GB packet buffer
- Supports 400-Gigabit and 100-Gigabit Ethernet on QSFP-DD ports
- Clos fabric architecture with traffic load-balanced across all fabric modules
- Keeps running at reduced capacity if a fabric module is lost
- Large routing and forwarding tables for spine, core and DCI roles
- Runs Cisco NX-OS
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Line card type: 24-port 400/100 Gigabit Ethernet QSFP-DD
- Ports: 24 x 400/100G QSFP-DD
- Performance: 9.6 Tbps per slot
- Packet buffer: 16 GB
- Processor and DRAM: 6-core 1.9 GHz x64, 16 GB DDR4
- Maximum IPv4 routes: 750,000
- Maximum MAC address entries: 750,000
- Multicast routes: 250,000
- Maximum VLANs: 4096
- Maximum ECMP routes: 256
- Maximum port channels: 1000
- Maximum links per port channel: 32
- Active SPAN sessions: 32
- Fabric modules for maximum bandwidth: 6 x N9K-C9508-FM-R2
- Supervisor module: N9K-SUP-B+
- Typical power: 900 W
- Maximum power: 1180 W
- Weight: 8.2 kg (18.17 lb)
FAQs
Q: Which chassis does the N9K-X9624D-R2 work in?
A: It is supported only in the Nexus 9508 8-slot chassis. It is not supported in the 4-slot Nexus 9504 chassis.
Q: Which fabric modules and supervisor does it need?
A: It needs N9K-C9508-FM-R2 fabric modules, six of them for maximum bandwidth, along with N9K-C9508-FAN2 fan trays. The supervisor must be N9K-SUP-B+. The N9K-C9508-FM-R and N9K-C9504-FM-R fabric modules are not supported.
Q: How much power does the line card draw?
A: Typical power is 900 W and maximum power is 1180 W per card. It is powered from the Nexus 9500 chassis power supplies.
Q: Does it require a software licence?
A: The hardware specifications do not define a licence requirement. Software and licensing details are covered in the NX-OS release notes and feature documentation.
Q: Which optics can I use in the QSFP-DD ports?
A: The ports accept 400G and 100G QSFP-DD optics. Genuine Cisco part numbers are listed in the Cisco Optics-to-Device Compatibility Matrix at tmgmatrix.cisco.com.
