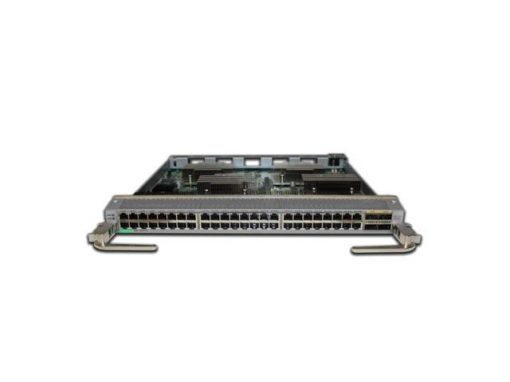

Cisco N9K-X9564TX | Nexus 9500 48-Port 10GBASE-T Line Card, 104 MB Buffer
SKU:N9K-X9564TX
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The N9K-X9564TX is a line card for the Nexus 9500 modular chassis, built for copper 1/10G server access and aggregation in data centre deployments. It provides 48 ports of 1/10GBASE-T that run at 100M, 1G and 10G over copper, plus 4 x 40G QSFP+ ports for uplinks. It supports VXLAN routing and bridging and operates in NX-OS mode.
This card delivers 1.28 Tbps and 1.9 bpps of performance with a 104 MB packet buffer, which is the main difference from the X9464TX2 and its 12 MB buffer. Three fabric modules are required to reach maximum bandwidth. Typical power draw is 450 W, rising to 540 W at maximum, supplied by the chassis power supplies. The module is hot swappable with port-side airflow intake.
It fits the Nexus 9504, 9508 and 9516 chassis with C9504-FM, C9508-FM or C9516-FM fabric modules. The QSFP+ ports accept optics listed on the Cisco Transceiver Compatibility page.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Supports VXLAN routing and bridging
- Supports 100M, 1G and 10GBASE-T copper cabling for server access
- Clos fabric design connects the line card to each rear-mounted fabric module with traffic load balanced across all fabric modules
- Chassis keeps operating at reduced capacity if a fabric module is lost
- Hot-swappable module for in-service replacement
- 4 x 40G QSFP+ ports for high-speed uplinks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: N9K-X9564TX
- Ports: 48 x 1/10GBASE-T (100M/1G/10G copper)
- Uplink ports: 4 x 40G QSFP+
- Performance: 1.28 Tbps, 1.9 bpps
- Packet buffer: 104 MB
- Fabric modules required for maximum bandwidth: 3
- Software mode: NX-OS
- Typical power: 450 W
- Maximum power: 540 W
- Weight: 12.58 lb (5.7 kg)
- MTBF: 479,110 hours
- Hot swappable: Yes
- Airflow: Port-side intake
- LPM routes: Up to 128,000
- IP host entries: Up to 104,000
- MAC address entries: Up to 104,000
- Multicast routes: Up to 52,000
- VLANs: Up to 4096
- VRF instances: Up to 2000
- Port channels: Up to 512
- ECMP paths: Up to 64
- Safety: UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
- EMC emissions: FCC Part 15 Class A, AS/NZS CISPR22 Class A, EN55022 Class A
- RoHS: RoHS-6 compliant
FAQs
Q: Which chassis does the N9K-X9564TX fit?
A: It fits the Nexus 9504, 9508 and 9516 chassis, used with C9504-FM, C9508-FM or C9516-FM fabric modules in NX-OS mode.
Q: How many fabric modules are needed?
A: Three fabric modules are required to reach the maximum bandwidth of this line card.
Q: Does it need its own licence?
A: The line card itself is hardware only. Software features depend on the NX-OS release and licensing of the Nexus 9500 chassis it is installed in.
Q: How much power does it draw?
A: Typical draw is 450 W and maximum is 540 W, supplied by the Nexus 9500 chassis power supplies. It does not provide PoE.
Q: How does it differ from the X9464TX2?
A: This card has a 104 MB packet buffer, compared with 12 MB on the X9464TX2, with 48 x 1/10GBASE-T ports and 4 x 40G QSFP+ ports.
