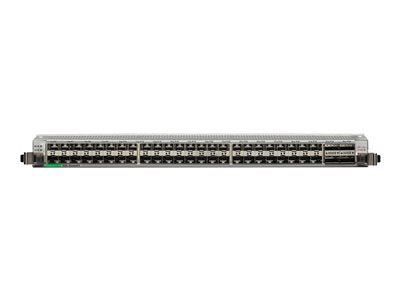

• Cisco N9K-X9464TX2 silver server rack with black accents and ports
1 1

Cisco

Cisco N9K-X9464TX2 | Nexus 9500 48-Port 10GBASE-T Line Card, 4x 40G QSFP+

N9K-X9464TX2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-X9464TX2 is a high-performance line card designed for Cisco Nexus 9500 modular switches, delivering 48 ports of 100M/1G/10GBASE-T copper connectivity plus 4x 40 Gigabit Ethernet QSFP+ uplinks. Engineered for data center end-of-row and middle-of-row deployments, this module provides 1.28 Tbps of switching capacity and 1.9 billion packets per second forwarding performance. It supports advanced Layer 2 and Layer 3 features, ideal for high-density server access and aggregation environments requiring flexible copper and fiber connectivity.

Features

Line-rate Layer 2 and Layer 3 switching for all packet sizes above 200 bytes
- Supports up to 128,000 longest-prefix-match (LPM) routing entries
- Up to 208,000 IP host entries and 160,000 MAC address entries
- VLAN support for up to 4,096 VLANs
- Virtual Routing and Forwarding (VRF) with up to 1,000 instances
- Port channel support with up to 512 port channels and 32 links per channel
- Equal-Cost Multi-Path (ECMP) routing with up to 64 paths
- Virtual Port Channel (vPC) for Layer 2 multipathing and redundancy
- Multicast routing support (8,000-32,000 routes)
- IGMP snooping with 8,000-32,000 groups
- Hot-swappable design for zero-downtime maintenance
- Designed for end-of-row (EoR) and middle-of-row (MoR) deployments
- Cisco NX-OS operating system support
- 12 MB buffer for microburst absorption
- Comprehensive QoS and traffic management capabilities

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 1/10GBASE-T RJ-45 ports (supports 100M/1G/10G speeds)
- 4x 40 Gigabit Ethernet QSFP+ uplink ports
- Switching capacity: 1.28 Tbps
- Forwarding rate: 1.9 billion packets per second (bpps)
- 12 MB packet buffer
- Maximum power consumption: 400W (typical 300W)
- Weight: 11.48 lb (5.2 kg)
- Compatible chassis: Nexus 9504, 9508, 9516
- Requires 4 fabric modules for maximum bandwidth
- Compatible fabric modules: N9K-C9504-FM, N9K-C9508-FM, N9K-C9516-FM
- Line-rate performance for packets greater than 200 bytes
- Hot-swappable design with port-side intake airflow
- NX-OS mode only
- MTBF: 509,870 hours

FAQs

Q: Which Nexus 9500 chassis models support the N9K-X9464TX2 line card?
A: The N9K-X9464TX2 is compatible with all Cisco Nexus 9500 series chassis: 9504 (4-slot), 9508 (8-slot), and 9516 (16-slot) models. It requires compatible fabric modules (N9K-C9504-FM, N9K-C9508-FM, or N9K-C9516-FM) for operation, with 4 fabric modules needed to achieve maximum bandwidth.

Q: What port speeds are supported on the 48 RJ-45 ports?
A: The 48 RJ-45 ports are multi-rate and support 100 Megabit Ethernet, 1 Gigabit Ethernet, and 10GBASE-T speeds, providing flexibility for mixed-speed server environments and backward compatibility with legacy infrastructure.

Q: Can the 40G QSFP+ ports be used in breakout mode?
A: Yes, the 4x 40 Gigabit Ethernet QSFP+ ports can typically be configured for 4x10G breakout mode using appropriate breakout cables, allowing up to 16 additional 10G connections for increased port density and flexible uplink configurations.

Q: What is the typical power consumption and heat output?
A: The N9K-X9464TX2 has a typical power consumption of 300W and maximum power draw of 400W. Proper chassis cooling and power supply capacity should be verified before installation, especially in fully populated chassis configurations.

Q: What routing and switching features does this line card support?
A: This line card supports comprehensive Layer 2 and Layer 3 features including up to 128,000 LPM routes, 208,000 IP host entries, 160,000 MAC addresses, VLANs (up to 4,096), VRF instances (up to 1,000), port channels, ECMP, and vPC for redundancy in data center environments.
