Cisco

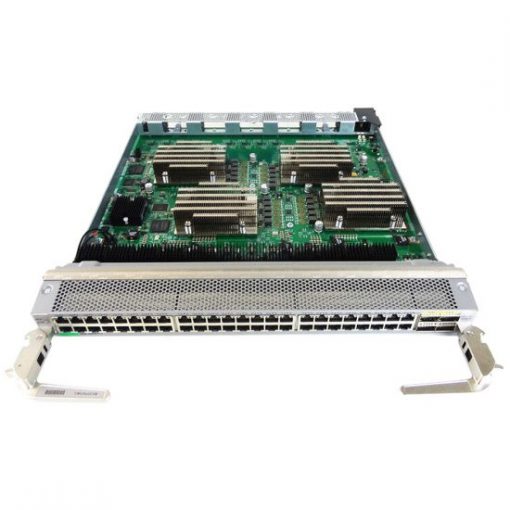

Cisco N9K-X9464TX | Nexus 9500 48-Port 1/10GBASE-T Line Card, 4x 40G QSFP+

SKU:N9K-X9464TX

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9500 48-port 1/10GBASE-T line card is a hot-swappable module for the Nexus 9500 modular chassis. It suits 1/10G copper server-access aggregation in data-centre spine or end-of-row deployments, with 40G QSFP+ uplinks for onward connectivity. It runs in NX-OS mode.

The card provides 48 x 1/10GBASE-T copper ports that also support 100M and 1G cabling, plus 4 x 40 Gigabit Ethernet QSFP+ ports. It is the original X9464TX variant, distinct from the X9464TX2 and X9564TX cards in the same family. Airflow is port-side intake.

The card connects directly to each rear-mounted fabric module in the chassis, and traffic is load-balanced across the fabric modules. The switch continues to operate at reduced capacity if a fabric module fails. It is designed for the Nexus 9500 chassis (N9K-C9504, C9508 and C9516) alongside the N9K-C95xx-FM fabric modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 1/10GBASE-T copper connectivity for server access, supporting 100-Megabit, 1-Gigabit and 10GBASE-T cabling
- 4 x 40G QSFP+ ports for uplink or aggregation
- Clos fabric architecture with each line card connected directly to every rear-mounted fabric module
- Traffic load-balanced across fabric modules
- Continues to operate at reduced capacity if a fabric module fails
- Hot-swappable modular design for in-service replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Port configuration: 48 x 1/10GBASE-T plus 4 x 40 Gigabit Ethernet QSFP+
- Copper speeds: 100M/1G/10G
- Hot swappable: Yes
- Airflow: Port-side intake
- Chassis compatibility: Nexus 9500 (N9K-C9504, C9508, C9516)
- Software: NX-OS
- Number of LPM routes: Up to 128,000
- Number of IP host entries: Up to 104,000
- Number of MAC address entries: Up to 104,000
- Number of multicast routes: Up to 52,000
- Number of VLANs: Up to 4096
- Number of VRF instances: Up to 2000
- Number of port channels: Up to 512
- Number of port channel links: Up to 32
- Number of ECMP paths: Up to 64
- Number of MST instances: Up to 64
- Number of RPVST instances: Up to 507
- Number of HSRP groups: Up to 490
- Regulatory: CE, UL/CSA/EN/IEC 60950-1, AS/NZS 60950-1, FCC Part 15 Class A, RoHS-6

FAQs

Q: Which chassis does this line card work with?
A: It is designed for the Nexus 9500 modular chassis family (N9K-C9504, C9508 and C9516), used with the N9K-C95xx-FM fabric modules.

Q: Does it need a separate licence?
A: The card runs NX-OS on the Nexus 9500 chassis. Cisco's datasheet covers hardware capabilities only, so check the NX-OS release notes for the feature licensing your design requires.

Q: How does it differ from the N9K-X9464TX2 and N9K-X9564TX?
A: This is the original X9464TX with 48 x 1/10GBASE-T ports and 4 x 40G QSFP+ ports. The TX2 and X9564TX are separate cards in the same family with different power ratings and port configurations.

Q: How is the card powered?
A: It draws power from the Nexus 9500 chassis power supplies, so size the chassis power supplies for the total line card and fabric module load.

Q: What cabling does the 1/10GBASE-T copper port support?
A: The ports support 100M, 1G and 10G over twisted-pair copper, so they can connect to existing copper servers without needing optics.
