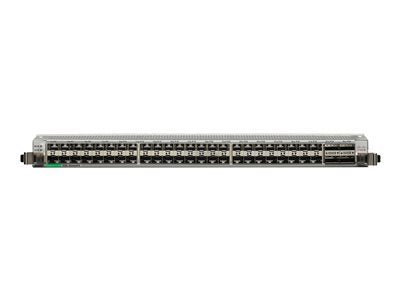

• Cisco N9K-X9464PX silver server rack with black accents and ports
1 1

Cisco

Cisco N9K-X9464PX | Nexus 9500 48-Port 10G SFP+ Line Card, 4x 40G QSFP+

N9K-X9464PX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco N9K-X9464PX is a high-performance line card for Nexus 9500 series modular switches, delivering 48 ports of 1/10 Gigabit Ethernet SFP+ and 4 ports of 40 Gigabit Ethernet QSFP+ uplinks. With 1.28 Tbps switching capacity and non-blocking architecture, this line card is designed for demanding data center environments requiring scalable, high-bandwidth connectivity. Compatible with N9K-C9504, N9K-C9508, and N9K-C9516 chassis, it supports both Cisco NX-OS and ACI deployment modes.

Features

Non-blocking line-rate performance across all 48 SFP+ ports and 4 QSFP+ uplinks
- Support for Layer 2 and Layer 3 switching protocols
- Advanced data center features including VXLAN, VPC, and FabricPath
- Comprehensive Quality of Service (QoS) and traffic management
- IEEE 802.1Q VLAN tagging and trunking
- Spanning Tree Protocol (STP, RSTP, MST)
- Link Aggregation Control Protocol (LACP)
- Hot-swappable design for zero-downtime maintenance
- Flexible deployment in Cisco NX-OS or ACI fabric environments
- Support for extensive Cisco SFP, SFP+, and QSFP+ transceiver portfolio
- Built-in hardware-based telemetry and analytics capabilities
- RoHS-6 compliant design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 1/10 Gigabit Ethernet SFP+ ports
- 4x 40 Gigabit Ethernet QSFP+ uplink ports
- Switching capacity: 1.28 Tbps
- Forwarding rate: 1.9 billion packets per second (bpps)
- Non-blocking architecture
- Compatible chassis: N9K-C9504-FM, N9K-C9508-FM, N9K-C9516-FM
- Weight: 10.76 lb (4.88 kg)
- Typical power consumption: 160W
- Maximum power consumption: 240W
- Hot-swappable design
- Port-side intake airflow
- MTBF: 677,750 hours
- Operating systems: Cisco NX-OS, Cisco ACI
- Transceivers not included

FAQs

Q: Which Nexus 9500 chassis models are compatible with the N9K-X9464PX?
A: The N9K-X9464PX line card is compatible with the Nexus 9504, 9508, and 9516 chassis models. It requires the appropriate fabric modules (N9K-C95xx-FM series) to operate.

Q: Does this line card support both 1G and 10G speeds on the SFP+ ports?
A: Yes, all 48 SFP+ ports support both 1 Gigabit and 10 Gigabit Ethernet speeds, providing flexible connectivity options based on your transceiver choice.

Q: What is the difference between the N9K-X9464PX and N9K-X9464TX models?
A: The N9K-X9464PX uses SFP+ fiber optic ports, while the N9K-X9464TX uses 1/10GBASE-T copper RJ45 ports. The PX model consumes less power (240W max vs 540W) and is lighter, but requires separate SFP/SFP+ transceivers.

Q: Can this line card be used in both NX-OS and ACI modes?
A: Yes, the N9K-X9464PX supports both Cisco NX-OS standalone mode and Cisco Application Centric Infrastructure (ACI) mode, depending on your deployment requirements.

Q: Are SFP+ and QSFP+ transceivers included with the line card?
A: No, transceivers are sold separately. You will need to purchase compatible Cisco SFP, SFP+, and QSFP+ modules based on your connectivity requirements and distance needs.
