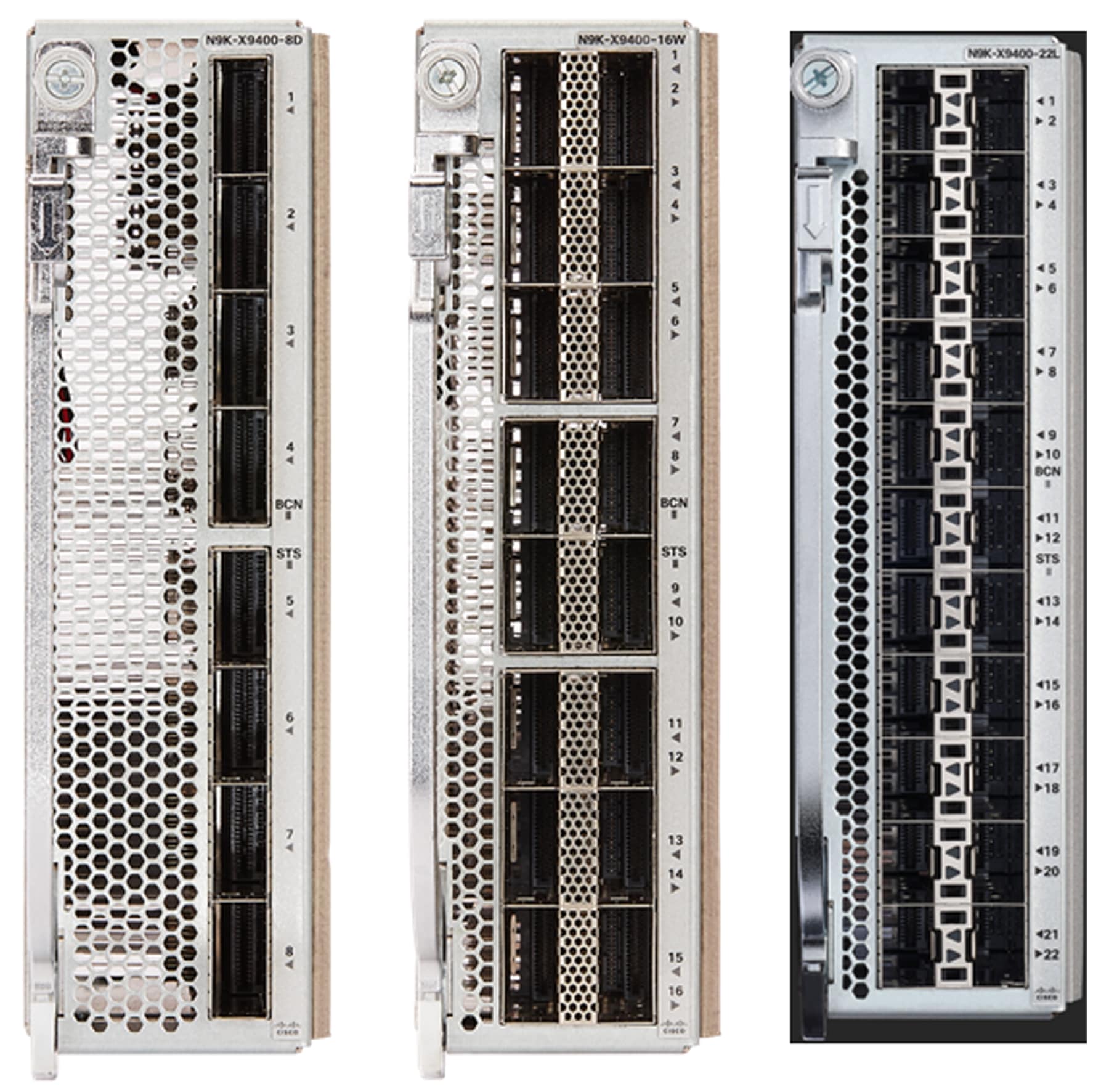

Cisco N9K-X9400-16W | Nexus N9400 16-Port 200G QSFP56 Line Card, MACsec
SKU:N9K-X9400-16W
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The N9K-X9400-16W is a 16-port 200G QSFP56 line expansion module for the Cisco Nexus N9408 modular chassis. Built on Cisco Cloud Scale technology, it suits high-density 100/200G leaf or aggregation connectivity in data-centre fabrics, AI/ML clusters, and service-provider or telecom deployments that need encryption on every port.
Each of the 16 QSFP56 ports runs at 100G or 200G, and IEEE 802.1ae MACsec is available on all ports. The module draws 100 W typical and 145 W maximum from the chassis, which uses four 2,000 W power supplies in 2+2 redundancy. It measures 6.73 x 1.88 x 9.45 in and weighs 1.87 kg. No licence is bundled with the line card itself. Layer-3 routing and Nexus Dashboard Data Broker require additional NX-OS licences.
The module installs in one of the eight line card slots of the N9408 (N9K-C9408) chassis, alongside the N9K-C9400-SUP-A supervisor and the N9K-C9400-SW-GX2A switch card. It runs under Cisco NX-OS mode or Cisco ACI mode.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Based on Cisco Cloud Scale technology
- IEEE 802.1ae MACsec on all ports
- Supports Cisco NX-OS mode and Cisco ACI mode
- VXLAN EVPN, segment routing (SR/SRv6) and PTP with Class C timing at platform level
- AI/ML fabric features including PFC, ECN, RoCE lossless transport and intelligent buffer management
- Programmability with POAP, NETCONF/RESTCONF/gNMI, model-driven telemetry and Ansible
- Hot-swappable PSUs and fans in the host chassis, with ISSU and SMU support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: N9K-X9400-16W
- Ports: 16 x 200G QSFP56 (100/200G capable)
- MACsec: All ports
- Typical power: 100 W
- Maximum power: 145 W
- Dimensions (H x W x D): 6.73 x 1.88 x 9.45 in
- Weight: 4.12 lb (1.87 kg)
- Host chassis: Cisco N9408 (N9K-C9408), 4 RU, 8 LEM slots
- Supervisor required: N9K-C9400-SUP-A
- Switch card: N9K-C9400-SW-GX2A
- Chassis PSUs: 4 x 2,000 W (2+2 redundancy), AC, DC or HV
- Chassis fans: 5 (4+1 redundancy), port-side intake airflow
- Chassis maximum port density: 64 x 400G, 128 x 200G or 176 x 10/25/50G
FAQs
Q: Which chassis does the N9K-X9400-16W fit?
A: It fits only the Cisco N9408 (N9K-C9408) modular chassis, which also needs the N9K-C9400-SUP-A supervisor and the N9K-C9400-SW-GX2A switch card. It is not compatible with Nexus 9500 chassis.
Q: Does this line card include a licence?
A: No licence is bundled with the line card. The default NX-OS software includes a Layer-2 security and management feature set. Layer-3 unicast and multicast routing and Nexus Dashboard Data Broker need additional licences.
Q: How much power does the module draw?
A: It draws 100 W typical and 145 W maximum from the N9408 chassis. The chassis uses four 2,000 W power supplies in 2+2 redundancy.
Q: What port speeds and optics does it support?
A: All 16 QSFP56 ports support 100G and 200G. Supported QSFP56 and QSFP28 optics, along with the minimum software release for each, are listed in the Cisco Transceiver Module Compatibility Matrix.
Q: Does it support MACsec encryption?
A: Yes. IEEE 802.1ae MACsec is available on all 16 ports.
