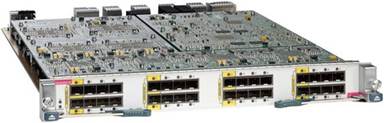

Cisco N7K-M132XP-12L | M1 line card | 32x 10GbE SFP+ | 80G fabric | XL scale tables

N7K-M132XP-12L

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 32-port 10GbE SFP+ line card for Nexus 7000 M1-Series deployments, delivering wire-rate 10G aggregation with the XL option for expanded Layer 2/Layer 3/ACL scale. 80 Gbps fabric connectivity enables resilient core or aggregation designs under NX-OS. Ideal for leaf/spine aggregation, server access, and data center core.

Features

- 32x 10GbE SFP+ ports for dense 10G aggregation
- 80 Gbps fabric connectivity for resilient performance
- XL option for expanded route and policy scale
- Hardware-based forwarding on M1 architecture
- Hot-swappable line card for serviceability
- Broad SFP+ optic and DAC ecosystem support
- Optimized for data center core and aggregation roles under NX-OS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Series: M1 line card for Nexus 7000 chassis
- Port density: 32x 10 Gigabit Ethernet
- Interface: SFP+ cages (requires 10G SFP+ optics or DAC cables)
- Fabric connectivity: 80 Gbps to system fabric
- XL option: expanded route/ACL/QoS table scale
- Layer features: L2 switching and L3 routing under NX-OS
- Optics support: 10GBASE-SR/LR/ER/LRM and passive/active SFP+ DAC (as supported by NX-OS)
- Connector (via optics): LC duplex for fiber SFP+ modules
- Hot-swappable: Yes
- Compatibility: Nexus 7000 Series chassis with compatible supervisors/fabric modules

FAQs

Q: Do the ports require SFP+ modules?
A: Yes. Each 10GbE port uses an SFP+ transceiver or a compatible SFP+ direct-attach copper (DAC) cable.

Q: What does the XL option provide?
A: XL increases hardware table resources for larger routing, MAC, and ACL scales to support bigger fabrics and policies.

Q: Is this compatible with all Nexus 7000 chassis?
A: It is designed for Nexus 7000 Series chassis. Ensure compatible supervisors and fabric modules are installed and that your NX-OS release supports this line card.

Q: Can I run 1Gbps optics in these SFP+ ports?
A: These ports are designed for 10GbE operation with SFP+ optics. Refer to the platform release notes for any downspeed support specifics.

Q: Is any feature licensing required?
A: Base forwarding is supported with NX-OS. Some advanced features may require corresponding NX-OS feature licensing.
