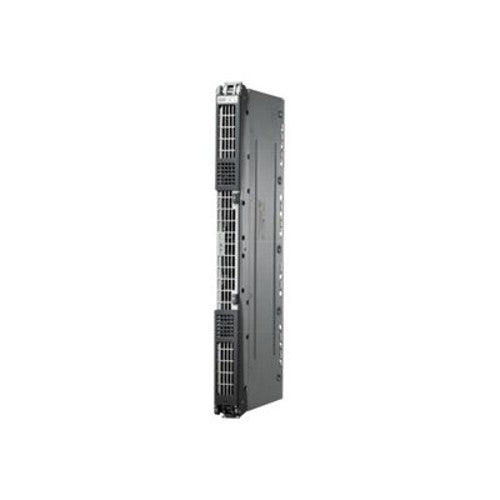

• Cisco N77-C7718-FAB-2 18-slot fabric module for 7700 series servers
1 1

Cisco

Cisco N77-C7718-FAB-2 | 7700 18-slot | Fabric-2 fabric module | 220 Gbps per-slot fabric bandwidth | hot-swappable | redundancy-ready

N77-C7718-FAB-2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-capacity Fabric-2 module delivering up to 220 Gbps per-slot fabric bandwidth for the 7700 18-slot chassis. Enables non-blocking fabric performance with resilient, hot-swappable design to minimize downtime.

Features

- High-throughput Fabric-2 design for non-blocking performance
- Hot-swappable for service continuity
- Scales per-slot throughput as modules are added
- LED-based health/status for fast troubleshooting
- Engineered for resilient, redundant fabric architectures

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatibility: 7700 18-slot chassis (C7718)
- Module type: Fabric-2 (fabric crossbar module)
- Per-slot fabric capacity: up to 220 Gbps
- Operation: hot-swappable, online insertion and removal (OIR)
- Architecture: distributed, redundant fabric design
- Use case: required to unlock full bandwidth on compatible LC-2 line cards
- Cooling: chassis-integrated airflow, no user fans on module
- Indicators: status/health LEDs for quick diagnostics

FAQs

Q: How many fabric modules are required for full bandwidth?
A: Install a matched set across the chassis per Cisco design guidance for your specific line cards; more modules increase available per-slot fabric bandwidth and resilience.

Q: Is a software license required for this fabric module?
A: No additional license is typically required; it operates as part of the chassis fabric backplane.

Q: Can I replace the module without shutting down the chassis?
A: Yes, it is hot-swappable. Follow proper ESD and maintenance procedures.

Q: Does this work with LC-2 line cards?
A: Yes, Fabric-2 modules are designed to provide full fabric bandwidth for compatible LC-2 line cards.
