Cisco

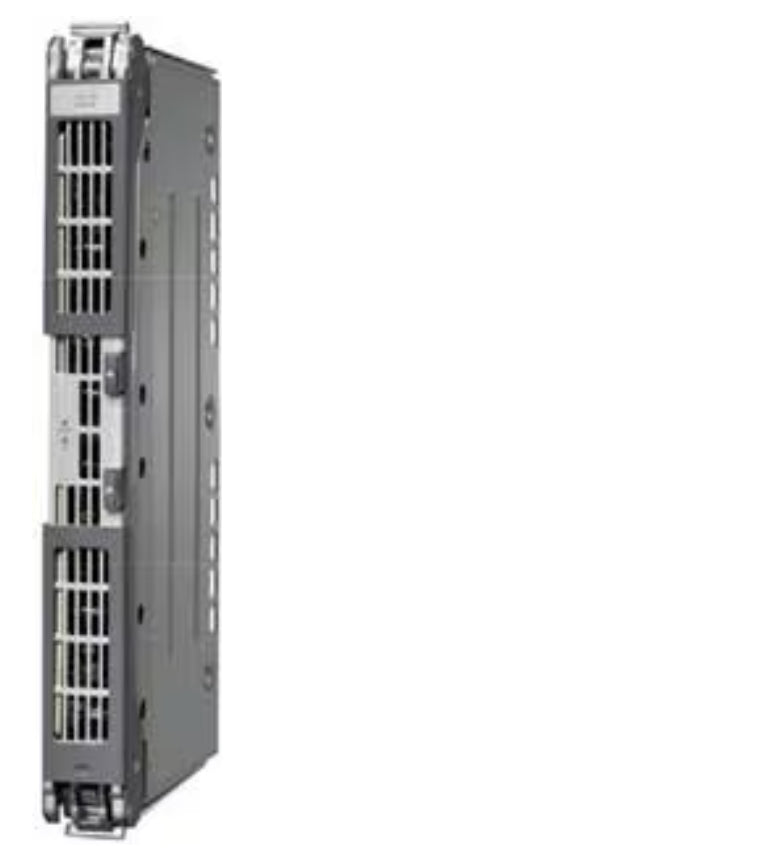

Cisco N77-C7710-FAB-2 | 7700 10-slot Fabric-2 module | 220 Gbps per-slot crossbar capacity | hot-swappable

N77-C7710-FAB-2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Fabric-2 crossbar module for the 10-slot chassis delivering 220 Gbps per-slot fabric bandwidth and scalable throughput as additional fabric modules are populated. Enables resilient, high-performance backplane connectivity for supported line cards.

Features

- 220 Gbps per-slot fabric bandwidth
- Scalable throughput with additional fabric modules
- Hot-swappable for minimal downtime
- Designed for Fabric-2 compatible 7700 line cards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fabric generation: Fabric-2
- Per-slot bandwidth: 220 Gbps (scales with additional fabric modules)
- Compatibility: Nexus 7700 10-slot chassis
- Role: High-speed crossbar fabric for line cards
- Operation: Hot-swappable for serviceability
- Scalability: Populate multiple fabric bays for higher throughput and N+1 redundancy
- Mixing policy: Do not mix Fabric-2 and Fabric-3 modules in the same chassis

FAQs

Q: How many Fabric-2 modules do I need?
A: The system can operate with fewer modules, with bandwidth and redundancy scaling as you add more. Follow the specific line card guidelines to achieve desired throughput.

Q: Can I mix Fabric-2 with Fabric-3 in the same chassis?
A: No. Use a single fabric generation type per chassis.

Q: Is the module hot-swappable?
A: Yes. It supports in-service replacement following standard maintenance procedures.

Q: Will this enable line-rate performance for all cards?
A: Line-rate depends on the line card model and the number of populated fabric modules. Consult the line card requirements.
