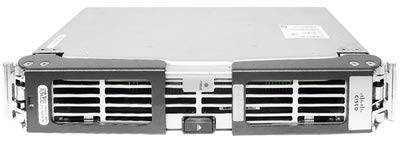

• Cisco N77-C7706-FAB-2 fabric module for 7706 chassis, silver router
1 1

Cisco

Cisco N77-C7706-FAB-2 | Fabric module | 6-slot chassis (7706) | 220 Gbps/slot | hot-swappable

N77-C7706-FAB-2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-performance fabric module delivering 220 Gbps per slot of backplane bandwidth to the 6-slot chassis. Multiple fabric modules can be installed to scale aggregate throughput and provide redundancy, supporting continuous system availability in mission-critical environments.

Features

- 220 Gbps per-slot fabric bandwidth for high-density deployments
- Hot-swappable for serviceability and uptime
- Redundant fabric architecture for resilience
- Bandwidth scales with the number of installed fabric modules
- Designed for 6-slot chassis fabric bays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Fabric module for 6-slot chassis fabric bays
- Per-slot fabric bandwidth: 220 Gbps
- Scalability: System bandwidth scales with the number of fabric modules installed
- Redundancy: Supports N+1 fabric redundancy (consult chassis guidelines)
- Hot-swap: Field-replaceable and hot-swappable (follow maintenance procedures)
- Software: NX-OS supported (see release notes for minimum versions)
- Compatibility: For 7706 chassis; use with line cards supported by Fabric-2

FAQs

Q: How many fabric modules do I need?
A: System throughput and redundancy improve with additional fabric modules. Refer to the 7706 hardware installation guide for the recommended count for your target line cards and performance.

Q: Can I mix Fabric-2 and Fabric-3 modules?
A: Mixing fabric generations in the same chassis is not supported. Use matching fabric modules of the same generation for a given system.

Q: Is there downtime to replace a fabric module?
A: Fabric modules are hot-swappable, but follow the maintenance and redundancy guidelines to avoid impact. Ensure sufficient remaining fabric capacity before removal.

Q: Which line cards are compatible?
A: Use line cards specified as supported with Fabric-2 in the platform compatibility matrix.
