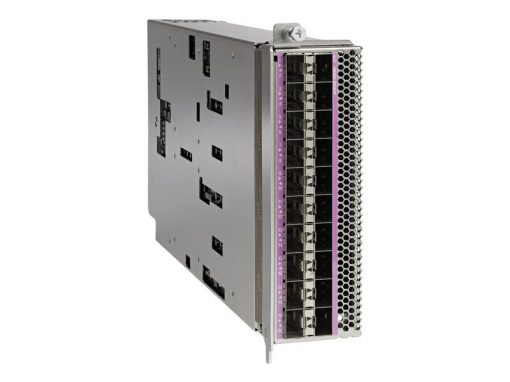

Cisco N6004X-M20UP | Nexus 6004EF 20-Port Unified SFP+ Expansion Module

SKU:N6004X-M20UP

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N6004X-M20UP is a hot-swappable 20-port unified line-card expansion module for the Cisco Nexus 6004EF chassis, part of the Nexus 6000 Series. It suits data centre access, aggregation and leaf-spine deployments that need 1/10 Gigabit Ethernet and converged FCoE or native Fibre Channel storage connectivity on the same platform.

Each of the 20 SFP+ ports can run as 1/10 Gigabit Ethernet or FCoE, or as native 8/4/2-Gbps Fibre Channel using SFP+ or SFP optics. Ethernet/FCoE and native Fibre Channel modes are mutually exclusive per port, and either can be selected on any of the 20 ports. The module is a line-card expansion module (LEM) and the Nexus 6004EF chassis provides eight LEM slots. On the 6004EF platform, latency is approximately 1 microsecond in cut-through mode.

The module is hardware that operates under Cisco NX-OS on the Nexus 6004EF, with NX-OS Release 7.0(3)N1(1) or later required. Fibre Channel and FCoE features require a Storage Services licence. The module has no PoE and draws power from the host chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Unified ports: choose Ethernet/FCoE or native Fibre Channel on any of the 20 ports
- Adds 1 and 10 Gigabit Ethernet SFP+ connectivity to the Nexus 6004EF
- Native 8/4/2-Gbps Fibre Channel support alongside FCoE
- Hot-swappable line-card expansion module
- Runs the single NX-OS image common to the Nexus 6000 Series
- Supports vPC, FabricPath, FEX (Nexus 2200) and FCoE on the host chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: N6004X-M20UP
- Module type: 20-port unified line-card expansion module (LEM)
- Ports per module: 20 x unified SFP+ ports
- Ethernet modes: 1 and 10 Gigabit Ethernet and FCoE (SFP+)
- Fibre Channel modes: native 8/4/2-Gbps Fibre Channel (SFP+ and SFP)
- Port mode: Ethernet/FCoE or native FC is mutually exclusive per port, selectable on any of the 20 ports
- Host chassis: Cisco Nexus 6004EF (4RU, eight LEM slots)
- Hot-swappable: Yes
- PoE: None
- Minimum software: Cisco NX-OS Release 7.0(3)N1(1) or later
- Latency (Nexus 6004EF platform): approximately 1 microsecond, cut-through, at 10 and 40 GbE
- Chassis throughput (Nexus 6004EF): 7.68 Tbps
- Chassis buffer: 25 MB per three 40GE QSFP interfaces
- Chassis operating temperature: 0 to 40 C
- Chassis humidity: 5 to 95% non-condensing

FAQs

Q: Which chassis does the N6004X-M20UP fit?
A: It is for the Cisco Nexus 6004EF chassis only. The chassis has eight LEM slots, and the host switch needs NX-OS Release 7.0(3)N1(1) or later.

Q: Can the ports run Ethernet and Fibre Channel at the same time?
A: Yes, across different ports. Each of the 20 ports runs either 1/10GE or FCoE, or native 8/4/2G Fibre Channel. The two modes are mutually exclusive on any single port, but any port can be set to either mode.

Q: Does it need a licence?
A: The module itself is hardware that operates under NX-OS on the 6004EF. Fibre Channel and FCoE features require a Storage Services licence, for example N6004-4Q-SSK9 or N6004-12Q-SSK9. Layer 3 features need N6K-BAS1K9 or N6004-LAN1K9, and FabricPath needs N6004-EL2-SSK9.

Q: Does it support PoE or need its own power supply?
A: No, the module has no PoE. It is powered from the Nexus 6004EF chassis, whose AC power supplies are rated 2800 W typical and 3300 W maximum.

Q: What optics does it take?
A: It accepts SFP+ and SFP optics and cables for 1/10 Gigabit Ethernet and 8/4/2G Fibre Channel, depending on the mode set on each port.
