Cisco

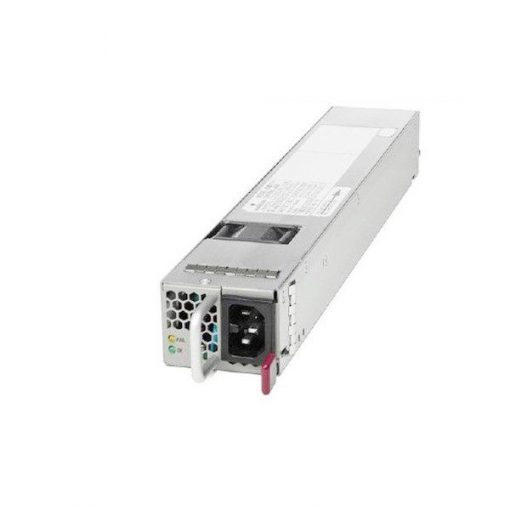

Cisco N55-PDC-750W | Nexus 5500 750W DC Power Supply, -40 to -72 VDC, Front-to-Back

SKU:N55-PDC-750W

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This hot-swappable 750W DC power supply module is built for the Cisco Nexus 5548P and 5548UP switches in the Nexus 5500 platform. It suits data centre top-of-rack and end-of-row deployments that run on -48 VDC power plants, such as telco and central-office environments, and can be fitted as a primary or redundant PSU.

The module accepts a -40 to -72 VDC input with an input current of 22A/12.5A and delivers up to 750W at 88% efficiency. Typical consumption is 390W and maximum consumption is 680W, with heat dissipation of 307 BTU/hr. Airflow is front-to-back (port-side exhaust), and the unit is RoHS compliant.

The chassis has two PSU slots and runs on a single supply, with a second module fitted for redundancy. All PSU and fan modules in one chassis must share the same airflow direction, so this front-to-back unit cannot be mixed with back-to-front PSUs such as the N55-PAC-750W-B.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power supply module
- Redundant operation: the chassis has two PSU slots, runs on one PSU and accepts a second for redundancy
- FAIL and OK status LEDs on the module
- DC power receptacle with handle and ejector latch
- Front-to-back (port-side exhaust) airflow
- 88% efficiency to help limit power draw and heat output

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Power type: DC
- Maximum rated power output: 750W
- Input voltage: -40 to -72 VDC
- Input current: 22A/12.5A
- Efficiency: 88%
- Typical operating power consumption: 390W
- Maximum power consumption: 680W
- Heat dissipation: 307 BTU/hr
- Airflow: Front-to-Back (port-side exhaust)
- Hot swappable: Yes
- RoHS compliance: Yes
- Compatible with: Cisco Nexus 5548P and 5548UP

FAQs

Q: Does this power supply need a licence or subscription?
A: No. It is a hardware power module and no licence or subscription is required.

Q: What input power does it need?
A: It runs from a DC input of -40 to -72 VDC with an input current of 22A/12.5A, and delivers up to 750W.

Q: Which switches is it compatible with?
A: It fits the Cisco Nexus 5548P and 5548UP switches. The 5548P supports only front-to-back airflow, so this PSU suits both models.

Q: Can I mix it with back-to-front airflow PSUs?
A: No. All PSU and fan modules in a chassis must use the same airflow direction. This is a front-to-back (port-side exhaust) unit, so it cannot be mixed with back-to-front PSUs such as the N55-PAC-750W-B.

Q: Is it hot-swappable, and can I run two for redundancy?
A: Yes, it is hot-swappable. The chassis has two PSU slots and runs on a single supply, with a second module fitted for redundancy.
