Cisco

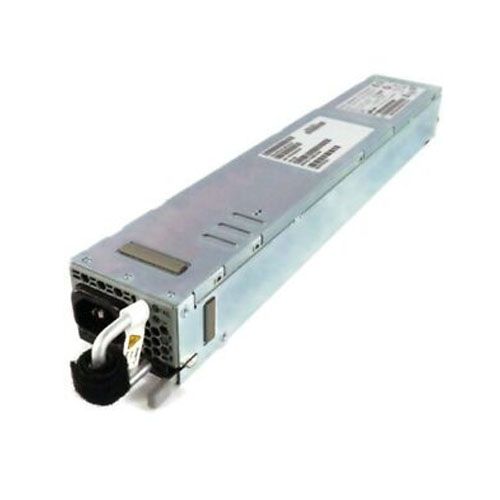

Cisco N55-PAC-750W-B | Nexus 5500 750W AC Power Supply, Back-to-Front

SKU:N55-PAC-750W-B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 750W AC power supply module is built for the Cisco Nexus 5548UP switch in the Nexus 5500 platform. It is a hot-swappable, field-replaceable unit accessed from the front panel, and it suits data-centre access and aggregation switches mounted with the port side facing the cold aisle.

The module accepts 100 to 240 VAC at 50 to 60 Hz, with input current of 10 A / 3.75 A. Maximum rated output is 750 W, typical operating consumption is 390 W and maximum consumption is 680 W. Efficiency is 95 to 98% at 50 to 100% load. Airflow is back-to-front (port-side intake), so it is the right choice for hot-aisle and cold-aisle layouts where the port side faces the cold aisle, and it is the variant that differs from the front-to-back N55-PAC-750W and the DC N55-PDC-750W.

The Nexus 5548UP chassis takes two power supplies for 1:1 redundancy. Use back-to-front airflow in both slots and pair it with back-to-front fan modules such as N5548UP-FAN-B. It is not intended for the 5596 series, which uses 1100W power supplies. No licence is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Back-to-front (port-side intake) airflow suits hot-aisle and cold-aisle designs where the port side faces the cold aisle
- Hot-swappable, so a unit can be replaced without powering down the switch
- Accessible from the switch front panel for simple field replacement
- Supports 1:1 power redundancy using the two PSU slots in the Nexus 5500 chassis
- High efficiency of 95 to 98% at 50 to 100% load
- Universal AC input of 100 to 240 VAC at 50 to 60 Hz

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: N55-PAC-750W-B
- Product type: AC power supply module
- Maximum rated power output: 750 W
- Typical operating power consumption: 390 W
- Maximum power consumption: 680 W
- Input voltage: 100 to 240 VAC
- Input current: 10 A / 3.75 A
- Frequency: 50 to 60 Hz
- Efficiency: 95 to 98% (50 to 100% load)
- Heat dissipation: 51 BTU/hr
- Airflow: Back-to-Front (port-side intake)
- Hot swappable: Yes
- RoHS compliance: Yes
- Compatible chassis: Cisco Nexus 5548UP
- Spare part number: N55-PAC-750W-B(=)

FAQs

Q: Does this power supply need a licence?
A: No. It is a hardware power module and no licence or subscription is required.

Q: Which switch does it fit?
A: It is made for the Cisco Nexus 5548UP. It is not for the 5596 series, which uses 1100W power supplies.

Q: Which fan modules should it be paired with?
A: Use back-to-front fan modules such as N5548UP-FAN-B, and keep the same airflow direction in both PSU slots.

Q: How does it differ from N55-PAC-750W and N55-PDC-750W?
A: N55-PAC-750W is the front-to-back AC version. N55-PDC-750W is the DC version. This N55-PAC-750W-B is the AC version with back-to-front airflow.

Q: What input power does it need?
A: It takes 100 to 240 VAC at 50 to 60 Hz, with input current of 10 A / 3.75 A.
