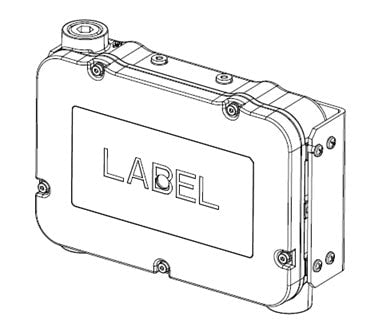

Cisco IW-PWRADPT-MFITHZ | Industrial AC/DC Power Supply, 60W 48VDC, IP67
SKU:IW-PWRADPT-MFITHZ
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This outdoor AC/DC power supply is a companion accessory for the Cisco Catalyst IW9167 Heavy Duty Series. It is built to power Cisco industrial and outdoor access points in outdoor and hazardous locations, including Class I Div 2, Zone 2 and Zone 22 environments, where a wide-temperature AC-to-48 VDC supply is required.
It accepts 100-240 VAC at 50-60 Hz and delivers 48 VDC at 1.25 A, up to 60 W maximum. The unit is IP67 rated and operates from -40°C to +70°C in still air, including solar loading. A protective case encloses the AC/DC unit for safe use in hazardous locations, and the unit carries CSA, ATEX and IECEx hazardous-location certifications. Rated MTBF is 300,000 hours at 40°C.
The supply mounts individually on each supported Cisco access point. It can be fitted to a wall or pole, to the front of the AP with the AIR-ACCPMK3700= or AIR-ACCPMK3700-2= bracket, or to the back of the AP with the AIR-ACCPMK3700-2= bracket. Cable entry requires 1/2 inch NPT ATEX/IECEx-certified cable glands or conduit.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Outdoor-rated single-phase AC/DC power supply with 60 W output
- Protective case encloses the AC/DC unit for safe operation in hazardous locations
- IP67-rated enclosure with -40°C to +70°C operating range including solar loading
- Wall or pole mounting, or front or back mounting on a supported access point
- Certified for Class I Div 2, Zone 2, ATEX and IECEx hazardous locations
- Passive power accessory with no licence or subscription needed
- Designed to be mounted individually on each supported Cisco AP
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Input: 100-240 VAC, 50-60 Hz
- Output: 48 VDC, 1.25 A, 60 W max
- Operating temperature: -40°C to +70°C, still air including solar loading
- Non-operating temperature: -40°C to +85°C
- Ingress protection: IP67
- Humidity (operating): 5% to 95%, condensing allowed outside the adapter
- Humidity (non-operating): 5% to 95%, condensing allowed outside the adapter
- Thermal shock (operating): -40°C to +70°C at 0.5°C per minute
- Altitude (operating): -500 to 17,000 feet from sea level
- Altitude (non-operating): -1,000 to 30,000 feet from sea level
- Dimensions (W x H x L): 155 x 49.7 x 204.2 mm
- Weight: 1.76 kg (3.88 lbs) ±10%
- MTBF: 300,000 hrs at 40°C
- Hazardous location: CSA Class I Div 2 Groups A, B, C, D; Class I Zone 2 AEx ec IIC Gc; Zone 22 AEx tc IIIC Dc
- Certifications: CSANe 25ATEX1046U; IECEx CSA 25.0030U
- Cable entry: 1/2 inch NPT ATEX/IECEx-certified cable glands or conduit (IP66/67)
- Installation: pollution degree 2 or better, overvoltage category II circuits
FAQs
Q: Does this power supply need a licence or subscription?
A: No. It is a passive power accessory and requires no licence or subscription.
Q: What input and output does it provide?
A: It accepts 100-240 VAC at 50-60 Hz and outputs 48 VDC at 1.25 A, up to 60 W maximum.
Q: Which products is it designed to power?
A: It is documented under the Cisco Catalyst IW9167 Heavy Duty Series and is mounted individually on each supported Cisco industrial or outdoor access point.
Q: How can it be mounted?
A: It can be mounted on a wall or pole, on the front of the AP using the AIR-ACCPMK3700= or AIR-ACCPMK3700-2= bracket, or on the back of the AP using the AIR-ACCPMK3700-2= bracket.
Q: What cable entry is required for hazardous locations?
A: Cable entry requires 1/2 inch NPT cable glands or conduit that are ATEX/IECEx certified and rated IP66/67.
