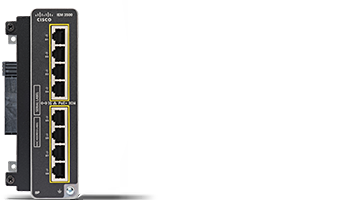

• Cisco IEM-3500-8P expansion module with 8 PoE+ ports
1 1

Cisco

Cisco IEM-3500-8P | 8x 10/100/1000 PoE+ (802.3at) access ports | no uplinks | IE3500 expansion module

IEM-3500-8P

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Add eight 1G PoE+ access ports to an IE3500 industrial switch with this plug-in expansion module. It delivers IEEE 802.3at PoE+ on each downlink (up to 30W per port; total budget depends on the host switch power supply) and is designed for rugged environments. Install in the IE3500 expansion bay to increase access port density without replacing your base unit.

Features

- Eight additional 1G PoE+ access ports for IE3500
- Standards-based PoE+/PoE for broad device interoperability
- Rugged design suitable for industrial environments
- Simple expansion via the IE3500 module slot
- Preserves existing uplinks and control-plane features of the host switch

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Port count/type: 8x 10/100/1000BASE-T with PoE+
- PoE standard: IEEE 802.3at (802.3af compatible); up to 30W per port (overall budget depends on host switch PSU)
- Uplinks: not provided by module (uses host switch uplinks)
- Connector: RJ45 copper
- Host compatibility: IE3500 Series switches with supported expansion slot
- Installation: field-installable module; power down the switch before installation
- Use case: expand access port density for industrial deployments
- Environmental: designed for rugged/industrial environments (see platform datasheet for ratings)

FAQs

Q: Does this module require a software license?
A: The hardware module itself does not introduce a new license tier; it operates under the host IE3500’s existing licensing.

Q: How much PoE budget is available?
A: Per-port PoE+ supports up to 30W; the total available budget depends on the IE3500 model and installed power supplies. Consult the platform power budget tables.

Q: Is the module hot-swappable?
A: No. Power down the switch and follow the hardware installation guide before inserting or removing the module.

Q: Which switches is it compatible with?
A: It is designed for IE3500 Series switches that support the expansion bay. Check the release notes and hardware compatibility matrix for details.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
